Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,641 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,890 22.3
Calibration 2 4,921 22.5
Calibration 3 4,928 22.6
100% 4,918 22.5
90% 4,451 22.4
80% 3,741 22.4
70% 3,229 22.5
60% 2,816 22.6
50% 2,457 22.6
40% 2,179 22.6
30% 1,936 22.6
20% 1,699 22.6
10% 1,454 22.6
Active Idle 814 22.5

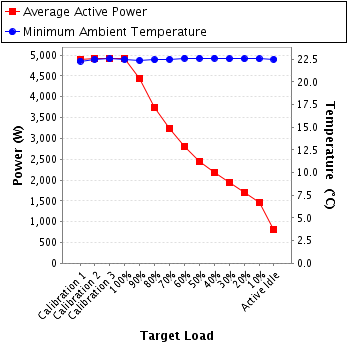

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2, and 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EN5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1, and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 7.88 10.0 0.994 1,660 0.4%
Calibration 2 212 300.0 7.94 10.0 0.995 1,673 0.4%
Calibration 3 211 300.0 7.96 10.0 0.995 1,675 0.4%
100% 212 300.0 7.93 10.0 0.994 1,671 0.4%
90% 212 300.0 7.13 10.0 0.992 1,502 0.4%
80% 213 300.0 5.93 10.0 0.990 1,249 0.4%
70% 213 300.0 5.12 10.0 0.987 1,075 0.5%
60% 213 300.0 4.51 5.0 0.983 942 0.3%
50% 213 300.0 3.95 5.0 0.977 823 0.4%
40% 213 300.0 3.50 5.0 0.971 724 0.4%
30% 213 300.0 3.09 5.0 0.963 635 0.4%
20% 213 300.0 2.68 5.0 0.950 541 0.5%
10% 213 300.0 2.35 5.0 0.925 462 0.6%
Active Idle 213 300.0 1.50 2.0 0.829 265 0.5%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 7.72 10.0 0.994 1,633 0.4%
Calibration 2 213 300.0 7.79 10.0 0.995 1,646 0.4%
Calibration 3 212 300.0 7.81 10.0 0.995 1,648 0.4%
100% 212 300.0 7.78 10.0 0.995 1,644 0.4%
90% 213 300.0 7.00 10.0 0.993 1,481 0.4%
80% 213 300.0 5.90 10.0 0.991 1,246 0.4%
70% 214 300.0 5.06 10.0 0.987 1,067 0.5%
60% 213 300.0 4.40 5.0 0.983 923 0.3%
50% 214 300.0 3.86 5.0 0.978 806 0.4%
40% 214 300.0 3.46 5.0 0.972 720 0.4%
30% 214 300.0 3.12 5.0 0.967 645 0.4%
20% 213 300.0 2.82 5.0 0.959 578 0.5%
10% 213 300.0 2.41 5.0 0.935 481 0.5%
Active Idle 213 300.0 1.49 2.0 0.841 268 0.5%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 7.62 10.0 0.977 1,596 0.4%
Calibration 2 214 300.0 7.64 10.0 0.977 1,602 0.4%
Calibration 3 214 300.0 7.68 10.0 0.977 1,606 0.4%
100% 214 300.0 7.66 10.0 0.977 1,604 0.4%
90% 215 300.0 7.02 10.0 0.973 1,468 0.4%
80% 215 300.0 6.01 10.0 0.963 1,246 0.4%
70% 215 300.0 5.29 10.0 0.953 1,086 0.5%
60% 215 300.0 4.70 5.0 0.939 951 0.4%
50% 215 300.0 4.17 5.0 0.922 828 0.4%
40% 215 300.0 3.77 5.0 0.905 735 0.4%
30% 216 300.0 3.44 5.0 0.884 656 0.5%
20% 215 300.0 3.14 5.0 0.858 581 0.5%
10% 215 300.0 2.87 5.0 0.826 511 0.6%
Active Idle 215 300.0 2.08 2.0 0.628 281 0.6%
Power details for pwr3
