Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,693 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 5,365 22.3
Calibration 2 5,403 22.4
Calibration 3 5,413 22.4
100% 5,402 22.3
90% 4,896 22.4
80% 4,117 22.5
70% 3,540 22.5
60% 3,079 22.5
50% 2,684 22.5
40% 2,379 22.5
30% 2,111 22.4
20% 1,851 22.4
10% 1,581 22.6
Active Idle 864 22.4

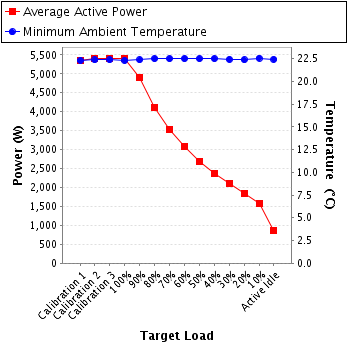

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2, and 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EN5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1, and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 8.70 10.0 0.995 1,827 0.3%
Calibration 2 211 300.0 8.76 10.0 0.995 1,841 0.3%
Calibration 3 211 300.0 8.75 10.0 0.995 1,840 0.3%
100% 211 300.0 8.75 10.0 0.995 1,837 0.3%
90% 212 300.0 7.87 10.0 0.994 1,658 0.4%
80% 212 300.0 6.57 10.0 0.992 1,380 0.4%
70% 212 300.0 5.62 10.0 0.989 1,178 0.4%
60% 212 300.0 4.90 5.0 0.985 1,024 0.3%
50% 213 300.0 4.31 5.0 0.981 899 0.4%
40% 213 300.0 3.87 5.0 0.976 803 0.4%
30% 213 300.0 3.44 5.0 0.970 711 0.4%
20% 213 300.0 2.91 5.0 0.958 594 0.5%
10% 213 300.0 2.48 5.0 0.937 495 0.5%
Active Idle 213 300.0 1.61 2.0 0.844 289 0.5%

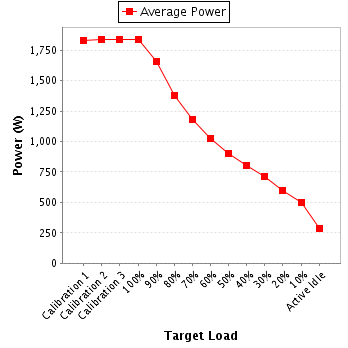

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 8.53 10.0 0.995 1,792 0.3%
Calibration 2 211 300.0 8.61 10.0 0.995 1,810 0.3%
Calibration 3 211 300.0 8.61 10.0 0.995 1,811 0.3%
100% 211 300.0 8.62 10.0 0.995 1,809 0.3%
90% 212 300.0 7.78 10.0 0.995 1,638 0.4%
80% 212 300.0 6.52 10.0 0.992 1,371 0.4%
70% 212 300.0 5.61 10.0 0.990 1,178 0.4%
60% 212 300.0 4.86 5.0 0.986 1,018 0.3%
50% 213 300.0 4.20 5.0 0.982 877 0.4%
40% 213 300.0 3.74 5.0 0.977 777 0.4%
30% 213 300.0 3.34 5.0 0.971 692 0.4%
20% 213 300.0 3.04 5.0 0.965 625 0.4%
10% 213 300.0 2.62 5.0 0.952 532 0.5%
Active Idle 213 300.0 1.54 2.0 0.847 279 0.5%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 8.28 10.0 0.981 1,745 0.4%
Calibration 2 215 300.0 8.31 10.0 0.981 1,752 0.4%
Calibration 3 215 300.0 8.34 10.0 0.981 1,762 0.4%
100% 215 300.0 8.33 10.0 0.981 1,756 0.4%
90% 215 300.0 7.60 10.0 0.977 1,600 0.4%
80% 216 300.0 6.54 10.0 0.970 1,367 0.4%
70% 216 300.0 5.72 10.0 0.960 1,185 0.5%
60% 216 300.0 5.06 5.0 0.949 1,037 0.4%
50% 216 300.0 4.49 5.0 0.934 907 0.4%
40% 216 300.0 4.03 5.0 0.917 800 0.4%
30% 217 300.0 3.64 5.0 0.898 709 0.5%
20% 216 300.0 3.33 5.0 0.877 633 0.5%
10% 217 300.0 3.01 5.0 0.847 553 0.5%
Active Idle 217 300.0 2.11 2.0 0.647 296 0.6%
Power details for pwr3
