SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2018 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL325 Gen10 | SPECpower_ssj2008 = 8,083 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Jul 19, 2018 |
| Hardware Availability: | May-2018 | Software Availability: | Jun-2018 | Publication: | Aug 15, 2018 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

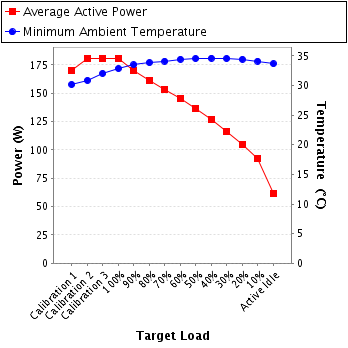

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 170 | 30.2 |
| Calibration 2 | 181 | 30.9 |
| Calibration 3 | 181 | 32.1 |
| 100% | 181 | 32.9 |
| 90% | 170 | 33.5 |
| 80% | 161 | 33.9 |
| 70% | 153 | 34.1 |
| 60% | 145 | 34.4 |
| 50% | 136 | 34.6 |
| 40% | 127 | 34.6 |
| 30% | 116 | 34.6 |
| 20% | 105 | 34.4 |
| 10% | 92.3 | 34.1 |
| Active Idle | 61.7 | 33.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91K218964 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-EJ4KB-80-1 |
| Date of Calibration: | 20-Apr-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 0.844 | 1.0 | 0.932 | 170 | 0.4% |
| Calibration 2 | 216 | 300.0 | 0.892 | 1.0 | 0.939 | 181 | 0.4% |
| Calibration 3 | 216 | 300.0 | 0.892 | 1.0 | 0.939 | 181 | 0.4% |
| 100% | 215 | 300.0 | 0.894 | 1.0 | 0.939 | 181 | 0.4% |
| 90% | 216 | 300.0 | 0.845 | 1.0 | 0.933 | 170 | 0.4% |
| 80% | 216 | 300.0 | 0.807 | 1.0 | 0.926 | 161 | 0.4% |
| 70% | 216 | 300.0 | 0.772 | 1.0 | 0.920 | 153 | 0.4% |
| 60% | 216 | 300.0 | 0.738 | 1.0 | 0.912 | 145 | 0.4% |
| 50% | 216 | 300.0 | 0.700 | 1.0 | 0.903 | 136 | 0.5% |
| 40% | 216 | 300.0 | 0.658 | 1.0 | 0.890 | 127 | 0.5% |
| 30% | 217 | 300.0 | 0.613 | 1.0 | 0.873 | 116 | 0.5% |
| 20% | 216 | 300.0 | 0.569 | 1.0 | 0.852 | 105 | 0.6% |
| 10% | 217 | 300.0 | 0.518 | 1.0 | 0.821 | 92.3 | 0.6% |
| Active Idle | 217 | 300.0 | 0.409 | 1.0 | 0.694 | 61.7 | 0.8% |
