Sugon I620-G30(Intel Xeon Platinum 8160) ssj_ops@100% = 4,386,123
ssj_ops@100% per JVM = 91,378
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, CHN Test Date: May 26, 2018
Hardware Availability: Feb-2018 Software Availability: Jul-2017 Publication: Aug 8, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,461,154
Calibration 2     4,411,144
Calibration 3     4,428,405
ssj_ops@calibrated=4,419,774
100% 99.2% 4,419,774 4,386,123
90% 90.1% 3,977,797 3,980,202
80% 80.0% 3,535,820 3,536,909
70% 70.2% 3,093,842 3,100,596
60% 60.0% 2,651,865 2,651,056
50% 50.0% 2,209,887 2,211,964
40% 40.1% 1,767,910 1,770,337
30% 29.9% 1,325,932 1,323,587
20% 20.1% 883,955 886,639
10% 10.0% 441,977 442,556
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node.
Hardware
Hardware Vendor: Sugon
Model: I620-G30(Intel Xeon Platinum 8160)
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8160
CPU Characteristics: 24-Core, 2.1GHz, 33MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 48 cores, 2 chips, 24 cores/chip
Hardware Threads: 96 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
Tertiary Cache: 33 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-R(P/N:M393A2K43CB2-CTD6Q); slots DIMM_CPU[0-1]_[A-F]0 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: ARTESYN 550W PSU(P/N:CSU550AP-3-200)
Disk Drive: 1 x 120GB M.2 SATA SSD(P/N:SU120GBSS3M55M28NE)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated onboard NIC
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000]
JVM Instances: 48
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: JGS012
Management Firmware Version: Ver 0.70
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-TNLGK16A38D.001 95,765
WIN-TNLGK16A38D.002 96,291
WIN-TNLGK16A38D.003 93,344
WIN-TNLGK16A38D.004 86,019
WIN-TNLGK16A38D.005 96,404
WIN-TNLGK16A38D.006 93,739
WIN-TNLGK16A38D.007 85,272
WIN-TNLGK16A38D.008 94,619
WIN-TNLGK16A38D.009 86,781
WIN-TNLGK16A38D.010 85,875
WIN-TNLGK16A38D.011 86,187
WIN-TNLGK16A38D.012 84,945
WIN-TNLGK16A38D.013 86,563
WIN-TNLGK16A38D.014 94,109
WIN-TNLGK16A38D.015 95,376
WIN-TNLGK16A38D.016 96,145
WIN-TNLGK16A38D.017 96,500
WIN-TNLGK16A38D.018 94,047
WIN-TNLGK16A38D.019 96,167
WIN-TNLGK16A38D.020 94,791
WIN-TNLGK16A38D.021 87,197
WIN-TNLGK16A38D.022 95,434
WIN-TNLGK16A38D.023 85,660
WIN-TNLGK16A38D.024 86,469
WIN-TNLGK16A38D.025 93,762
WIN-TNLGK16A38D.026 86,647
WIN-TNLGK16A38D.027 86,502
WIN-TNLGK16A38D.028 84,551
WIN-TNLGK16A38D.029 96,358
WIN-TNLGK16A38D.030 94,415
WIN-TNLGK16A38D.031 92,811
WIN-TNLGK16A38D.032 86,010
WIN-TNLGK16A38D.033 96,275
WIN-TNLGK16A38D.034 95,976
WIN-TNLGK16A38D.035 85,009
WIN-TNLGK16A38D.036 94,906
WIN-TNLGK16A38D.037 84,356
WIN-TNLGK16A38D.038 84,732
WIN-TNLGK16A38D.039 85,479
WIN-TNLGK16A38D.040 85,004
WIN-TNLGK16A38D.041 99,216
WIN-TNLGK16A38D.042 85,927
WIN-TNLGK16A38D.043 96,758
WIN-TNLGK16A38D.044 97,110
WIN-TNLGK16A38D.045 97,574
WIN-TNLGK16A38D.046 92,806
WIN-TNLGK16A38D.047 95,159
WIN-TNLGK16A38D.048 95,079
ssj_ops@100% 4,386,123
ssj_ops@100% per JVM 91,378

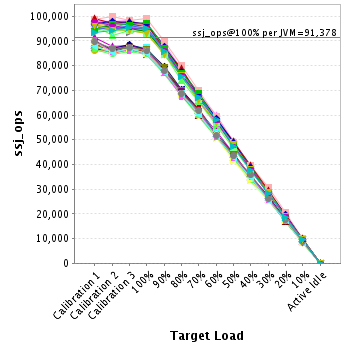

Graph of per-instance results
JVM 'WIN-TNLGK16A38D.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,347
Calibration 2     96,807
Calibration 3     96,890
ssj_ops@calibrated=96,849
100% 98.9% 96,849 95,765
90% 88.7% 87,164 85,899
80% 80.9% 77,479 78,306
70% 70.4% 67,794 68,208
60% 59.7% 58,109 57,821
50% 50.2% 48,424 48,613
40% 40.5% 38,739 39,221
30% 30.2% 29,055 29,204
20% 19.9% 19,370 19,230
10% 9.9% 9,685 9,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,409
Calibration 2     95,769
Calibration 3     96,925
ssj_ops@calibrated=96,347
100% 99.9% 96,347 96,291
90% 90.1% 86,712 86,846
80% 79.5% 77,077 76,611
70% 69.9% 67,443 67,343
60% 58.8% 57,808 56,662
50% 50.9% 48,173 49,054
40% 40.6% 38,539 39,143
30% 29.7% 28,904 28,618
20% 20.2% 19,269 19,473
10% 10.0% 9,635 9,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,069
Calibration 2     92,276
Calibration 3     94,383
ssj_ops@calibrated=93,329
100% 100.0% 93,329 93,344
90% 90.6% 83,996 84,559
80% 79.5% 74,663 74,156
70% 69.9% 65,331 65,272
60% 59.9% 55,998 55,930
50% 49.9% 46,665 46,525
40% 40.4% 37,332 37,742
30% 30.0% 27,999 28,042
20% 19.7% 18,666 18,401
10% 10.1% 9,333 9,461
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,068
Calibration 2     86,095
Calibration 3     86,562
ssj_ops@calibrated=86,328
100% 99.6% 86,328 86,019
90% 90.1% 77,695 77,803
80% 80.3% 69,062 69,322
70% 70.1% 60,430 60,558
60% 60.2% 51,797 52,002
50% 49.9% 43,164 43,075
40% 39.8% 34,531 34,363
30% 29.3% 25,898 25,337
20% 20.1% 17,266 17,386
10% 10.1% 8,633 8,757
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,138
Calibration 2     97,330
Calibration 3     94,451
ssj_ops@calibrated=95,890
100% 100.5% 95,890 96,404
90% 90.9% 86,301 87,206
80% 80.6% 76,712 77,271
70% 69.8% 67,123 66,917
60% 59.9% 57,534 57,432
50% 49.2% 47,945 47,158
40% 39.4% 38,356 37,818
30% 29.9% 28,767 28,660
20% 20.4% 19,178 19,578
10% 9.7% 9,589 9,345
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,387
Calibration 2     93,739
Calibration 3     94,894
ssj_ops@calibrated=94,316
100% 99.4% 94,316 93,739
90% 90.2% 84,885 85,102
80% 80.4% 75,453 75,830
70% 69.9% 66,021 65,930
60% 60.8% 56,590 57,327
50% 50.2% 47,158 47,366
40% 40.8% 37,727 38,482
30% 30.0% 28,295 28,268
20% 20.4% 18,863 19,220
10% 10.0% 9,432 9,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

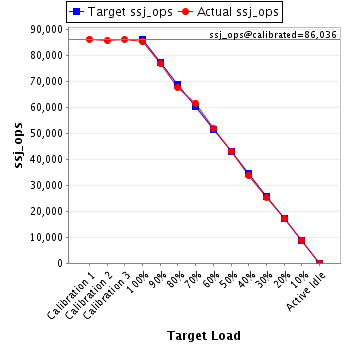

JVM 'WIN-TNLGK16A38D.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,322
Calibration 2     85,828
Calibration 3     86,244
ssj_ops@calibrated=86,036
100% 99.1% 86,036 85,272
90% 89.5% 77,433 77,040
80% 78.6% 68,829 67,661
70% 71.6% 60,225 61,578
60% 60.2% 51,622 51,792
50% 50.2% 43,018 43,191
40% 39.3% 34,415 33,814
30% 29.5% 25,811 25,386
20% 19.8% 17,207 17,075
10% 10.1% 8,604 8,685
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,288
Calibration 2     95,821
Calibration 3     93,444
ssj_ops@calibrated=94,632
100% 100.0% 94,632 94,619
90% 89.3% 85,169 84,506
80% 79.8% 75,706 75,533
70% 69.9% 66,243 66,175
60% 60.7% 56,779 57,477
50% 50.0% 47,316 47,281
40% 40.6% 37,853 38,391
30% 29.6% 28,390 27,989
20% 19.8% 18,926 18,737
10% 9.7% 9,463 9,194
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,568
Calibration 2     86,855
Calibration 3     88,294
ssj_ops@calibrated=87,574
100% 99.1% 87,574 86,781
90% 90.6% 78,817 79,346
80% 80.0% 70,059 70,032
70% 71.3% 61,302 62,479
60% 59.7% 52,545 52,287
50% 50.7% 43,787 44,399
40% 40.1% 35,030 35,126
30% 30.7% 26,272 26,898
20% 19.8% 17,515 17,346
10% 10.2% 8,757 8,906
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,998
Calibration 2     85,876
Calibration 3     87,109
ssj_ops@calibrated=86,492
100% 99.3% 86,492 85,875
90% 90.0% 77,843 77,863
80% 81.5% 69,194 70,502
70% 70.1% 60,545 60,599
60% 59.3% 51,895 51,260
50% 49.7% 43,246 42,951
40% 40.7% 34,597 35,219
30% 30.3% 25,948 26,166
20% 21.1% 17,298 18,237
10% 10.1% 8,649 8,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,707
Calibration 2     86,452
Calibration 3     87,518
ssj_ops@calibrated=86,985
100% 99.1% 86,985 86,187
90% 90.0% 78,287 78,313
80% 79.4% 69,588 69,023
70% 69.8% 60,890 60,741
60% 60.2% 52,191 52,392
50% 50.8% 43,493 44,156
40% 39.8% 34,794 34,649
30% 29.4% 26,096 25,608
20% 20.0% 17,397 17,366
10% 10.3% 8,699 8,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

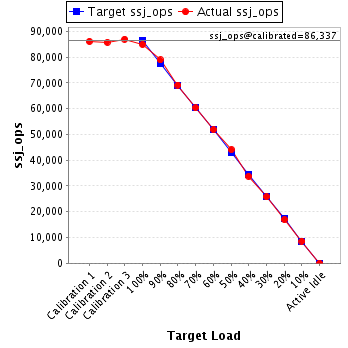

JVM 'WIN-TNLGK16A38D.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,106
Calibration 2     85,716
Calibration 3     86,957
ssj_ops@calibrated=86,337
100% 98.4% 86,337 84,945
90% 91.4% 77,703 78,883
80% 80.1% 69,069 69,170
70% 69.9% 60,436 60,310
60% 60.1% 51,802 51,864
50% 51.1% 43,168 44,115
40% 39.1% 34,535 33,779
30% 29.8% 25,901 25,741
20% 19.6% 17,267 16,886
10% 9.9% 8,634 8,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,312
Calibration 2     87,536
Calibration 3     88,055
ssj_ops@calibrated=87,795
100% 98.6% 87,795 86,563
90% 89.1% 79,016 78,266
80% 79.3% 70,236 69,620
70% 70.4% 61,457 61,836
60% 60.7% 52,677 53,258
50% 50.4% 43,898 44,285
40% 40.0% 35,118 35,121
30% 30.1% 26,339 26,448
20% 20.3% 17,559 17,812
10% 9.9% 8,780 8,686
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,890
Calibration 2     96,656
Calibration 3     96,594
ssj_ops@calibrated=96,625
100% 97.4% 96,625 94,109
90% 90.7% 86,963 87,593
80% 80.0% 77,300 77,330
70% 70.2% 67,638 67,825
60% 59.6% 57,975 57,604
50% 50.4% 48,313 48,730
40% 40.4% 38,650 39,006
30% 30.1% 28,988 29,121
20% 19.9% 19,325 19,266
10% 9.8% 9,663 9,514
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,559
Calibration 2     96,306
Calibration 3     96,982
ssj_ops@calibrated=96,644
100% 98.7% 96,644 95,376
90% 89.4% 86,980 86,357
80% 80.0% 77,315 77,335
70% 69.4% 67,651 67,029
60% 60.3% 57,986 58,230
50% 49.3% 48,322 47,674
40% 40.4% 38,658 39,047
30% 29.6% 28,993 28,617
20% 20.1% 19,329 19,433
10% 10.1% 9,664 9,714
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,846
Calibration 2     96,901
Calibration 3     95,199
ssj_ops@calibrated=96,050
100% 100.1% 96,050 96,145
90% 90.1% 86,445 86,547
80% 79.4% 76,840 76,289
70% 70.9% 67,235 68,081
60% 60.6% 57,630 58,202
50% 49.9% 48,025 47,925
40% 39.9% 38,420 38,369
30% 29.8% 28,815 28,606
20% 19.7% 19,210 18,884
10% 9.9% 9,605 9,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,433
Calibration 2     97,338
Calibration 3     96,177
ssj_ops@calibrated=96,758
100% 99.7% 96,758 96,500
90% 89.3% 87,082 86,450
80% 81.0% 77,406 78,371
70% 70.2% 67,730 67,929
60% 59.8% 58,055 57,842
50% 49.9% 48,379 48,296
40% 39.6% 38,703 38,354
30% 29.8% 29,027 28,795
20% 19.9% 19,352 19,234
10% 9.8% 9,676 9,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,446
Calibration 2     94,231
Calibration 3     94,789
ssj_ops@calibrated=94,510
100% 99.5% 94,510 94,047
90% 90.6% 85,059 85,625
80% 79.8% 75,608 75,455
70% 69.9% 66,157 66,046
60% 59.8% 56,706 56,501
50% 50.6% 47,255 47,794
40% 40.0% 37,804 37,778
30% 30.6% 28,353 28,910
20% 20.0% 18,902 18,899
10% 10.2% 9,451 9,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,643
Calibration 2     96,528
Calibration 3     97,642
ssj_ops@calibrated=97,085
100% 99.1% 97,085 96,167
90% 90.3% 87,376 87,650
80% 79.9% 77,668 77,577
70% 70.8% 67,959 68,694
60% 59.7% 58,251 57,980
50% 50.3% 48,542 48,863
40% 40.3% 38,834 39,155
30% 30.2% 29,125 29,278
20% 19.9% 19,417 19,273
10% 9.9% 9,708 9,654
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

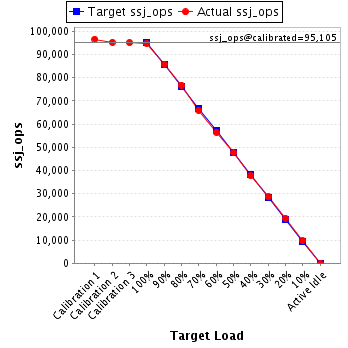

JVM 'WIN-TNLGK16A38D.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,576
Calibration 2     95,191
Calibration 3     95,020
ssj_ops@calibrated=95,105
100% 99.7% 95,105 94,791
90% 90.3% 85,595 85,836
80% 80.7% 76,084 76,788
70% 69.3% 66,574 65,897
60% 59.4% 57,063 56,471
50% 50.1% 47,553 47,648
40% 39.7% 38,042 37,776
30% 30.1% 28,532 28,617
20% 20.4% 19,021 19,375
10% 10.2% 9,511 9,654
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,976
Calibration 2     86,884
Calibration 3     87,902
ssj_ops@calibrated=87,393
100% 99.8% 87,393 87,197
90% 90.0% 78,654 78,640
80% 80.1% 69,914 69,958
70% 70.2% 61,175 61,314
60% 60.4% 52,436 52,743
50% 48.9% 43,697 42,698
40% 40.2% 34,957 35,098
30% 29.9% 26,218 26,093
20% 19.6% 17,479 17,104
10% 10.0% 8,739 8,699
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,206
Calibration 2     96,727
Calibration 3     96,309
ssj_ops@calibrated=96,518
100% 98.9% 96,518 95,434
90% 89.9% 86,866 86,732
80% 80.5% 77,214 77,666
70% 70.5% 67,563 68,031
60% 60.3% 57,911 58,157
50% 51.2% 48,259 49,424
40% 39.5% 38,607 38,097
30% 30.1% 28,955 29,051
20% 19.9% 19,304 19,179
10% 9.7% 9,652 9,373
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,471
Calibration 2     85,680
Calibration 3     87,114
ssj_ops@calibrated=86,397
100% 99.1% 86,397 85,660
90% 89.4% 77,757 77,266
80% 80.7% 69,118 69,737
70% 69.0% 60,478 59,654
60% 59.7% 51,838 51,571
50% 49.6% 43,198 42,849
40% 40.1% 34,559 34,649
30% 29.9% 25,919 25,842
20% 19.6% 17,279 16,940
10% 10.3% 8,640 8,885
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,801
Calibration 2     87,032
Calibration 3     88,401
ssj_ops@calibrated=87,717
100% 98.6% 87,717 86,469
90% 90.7% 78,945 79,515
80% 80.1% 70,173 70,266
70% 70.5% 61,402 61,820
60% 59.4% 52,630 52,133
50% 50.2% 43,858 44,074
40% 39.8% 35,087 34,885
30% 30.1% 26,315 26,403
20% 19.7% 17,543 17,261
10% 10.1% 8,772 8,841
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,690
Calibration 2     95,223
Calibration 3     95,115
ssj_ops@calibrated=95,169
100% 98.5% 95,169 93,762
90% 90.1% 85,652 85,760
80% 79.5% 76,135 75,675
70% 70.4% 66,618 66,980
60% 60.1% 57,101 57,238
50% 50.6% 47,584 48,155
40% 39.7% 38,068 37,765
30% 29.9% 28,551 28,437
20% 19.8% 19,034 18,864
10% 9.9% 9,517 9,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,948
Calibration 2     86,436
Calibration 3     87,405
ssj_ops@calibrated=86,921
100% 99.7% 86,921 86,647
90% 91.0% 78,229 79,055
80% 80.2% 69,537 69,723
70% 70.6% 60,845 61,355
60% 59.3% 52,152 51,545
50% 50.6% 43,460 44,016
40% 39.7% 34,768 34,501
30% 30.0% 26,076 26,058
20% 19.8% 17,384 17,225
10% 9.9% 8,692 8,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,161
Calibration 2     86,231
Calibration 3     88,000
ssj_ops@calibrated=87,116
100% 99.3% 87,116 86,502
90% 89.7% 78,404 78,158
80% 80.6% 69,693 70,257
70% 69.5% 60,981 60,571
60% 60.4% 52,269 52,576
50% 49.1% 43,558 42,765
40% 40.8% 34,846 35,506
30% 30.8% 26,135 26,818
20% 20.3% 17,423 17,712
10% 10.0% 8,712 8,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

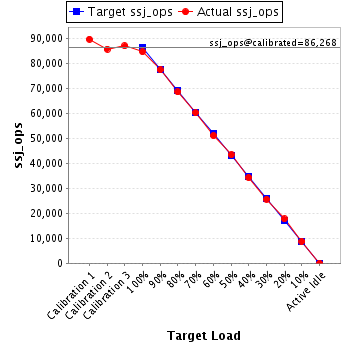

JVM 'WIN-TNLGK16A38D.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,612
Calibration 2     85,656
Calibration 3     86,881
ssj_ops@calibrated=86,268
100% 98.0% 86,268 84,551
90% 89.6% 77,641 77,314
80% 79.4% 69,015 68,494
70% 69.8% 60,388 60,185
60% 59.1% 51,761 51,008
50% 50.3% 43,134 43,404
40% 39.7% 34,507 34,226
30% 29.7% 25,880 25,636
20% 20.5% 17,254 17,718
10% 10.1% 8,627 8,719
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,014
Calibration 2     96,635
Calibration 3     97,554
ssj_ops@calibrated=97,095
100% 99.2% 97,095 96,358
90% 90.9% 87,385 88,243
80% 80.6% 77,676 78,254
70% 69.9% 67,966 67,915
60% 59.5% 58,257 57,744
50% 50.1% 48,547 48,643
40% 40.6% 38,838 39,401
30% 30.1% 29,128 29,205
20% 19.9% 19,419 19,291
10% 10.0% 9,709 9,686
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,658
Calibration 2     96,782
Calibration 3     95,412
ssj_ops@calibrated=96,097
100% 98.2% 96,097 94,415
90% 90.7% 86,487 87,129
80% 79.0% 76,877 75,878
70% 69.4% 67,268 66,681
60% 60.8% 57,658 58,473
50% 49.1% 48,048 47,209
40% 40.6% 38,439 38,971
30% 29.5% 28,829 28,388
20% 20.7% 19,219 19,895
10% 10.0% 9,610 9,611
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,010
Calibration 2     94,774
Calibration 3     94,048
ssj_ops@calibrated=94,411
100% 98.3% 94,411 92,811
90% 89.5% 84,970 84,512
80% 81.0% 75,529 76,478
70% 70.3% 66,088 66,358
60% 60.1% 56,647 56,774
50% 49.6% 47,206 46,860
40% 40.2% 37,764 37,968
30% 30.4% 28,323 28,711
20% 20.0% 18,882 18,903
10% 9.7% 9,441 9,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,997
Calibration 2     85,295
Calibration 3     86,889
ssj_ops@calibrated=86,092
100% 99.9% 86,092 86,010
90% 89.6% 77,483 77,116
80% 80.0% 68,874 68,893
70% 69.6% 60,264 59,904
60% 60.4% 51,655 52,004
50% 49.6% 43,046 42,686
40% 39.8% 34,437 34,278
30% 29.5% 25,828 25,372
20% 20.5% 17,218 17,624
10% 10.1% 8,609 8,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,194
Calibration 2     97,839
Calibration 3     98,420
ssj_ops@calibrated=98,129
100% 98.1% 98,129 96,275
90% 90.3% 88,316 88,615
80% 79.9% 78,503 78,444
70% 69.9% 68,691 68,572
60% 60.8% 58,878 59,689
50% 50.2% 49,065 49,283
40% 40.2% 39,252 39,424
30% 29.9% 29,439 29,343
20% 20.1% 19,626 19,682
10% 9.9% 9,813 9,674
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,850
Calibration 2     96,508
Calibration 3     95,080
ssj_ops@calibrated=95,794
100% 100.2% 95,794 95,976
90% 89.4% 86,214 85,621
80% 80.6% 76,635 77,166
70% 69.2% 67,056 66,284
60% 60.3% 57,476 57,722
50% 50.1% 47,897 47,993
40% 39.7% 38,318 38,059
30% 30.1% 28,738 28,833
20% 20.0% 19,159 19,191
10% 10.1% 9,579 9,663
Active Idle   0 0

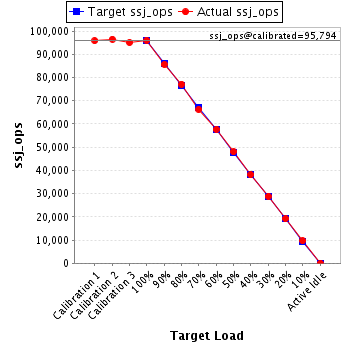

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,712
Calibration 2     85,077
Calibration 3     86,442
ssj_ops@calibrated=85,759
100% 99.1% 85,759 85,009
90% 89.4% 77,183 76,666
80% 79.7% 68,608 68,308
70% 69.7% 60,032 59,796
60% 59.5% 51,456 51,065
50% 50.3% 42,880 43,154
40% 40.0% 34,304 34,263
30% 29.8% 25,728 25,525
20% 20.2% 17,152 17,313
10% 10.2% 8,576 8,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,349
Calibration 2     94,759
Calibration 3     96,211
ssj_ops@calibrated=95,485
100% 99.4% 95,485 94,906
90% 91.0% 85,936 86,850
80% 80.1% 76,388 76,508
70% 70.0% 66,839 66,821
60% 60.9% 57,291 58,187
50% 50.5% 47,742 48,173
40% 39.9% 38,194 38,109
30% 29.9% 28,645 28,565
20% 20.4% 19,097 19,521
10% 9.9% 9,548 9,465
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,318
Calibration 2     84,344
Calibration 3     85,658
ssj_ops@calibrated=85,001
100% 99.2% 85,001 84,356
90% 90.1% 76,501 76,592
80% 79.7% 68,001 67,784
70% 70.1% 59,501 59,585
60% 59.7% 51,001 50,727
50% 50.0% 42,501 42,485
40% 39.1% 34,001 33,253
30% 30.1% 25,500 25,620
20% 20.0% 17,000 16,995
10% 9.9% 8,500 8,425
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,578
Calibration 2     85,225
Calibration 3     86,830
ssj_ops@calibrated=86,028
100% 98.5% 86,028 84,732
90% 90.3% 77,425 77,719
80% 79.5% 68,822 68,428
70% 71.0% 60,219 61,122
60% 59.4% 51,617 51,087
50% 48.6% 43,014 41,791
40% 39.2% 34,411 33,695
30% 29.7% 25,808 25,533
20% 20.2% 17,206 17,349
10% 9.8% 8,603 8,426
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,658
Calibration 2     85,565
Calibration 3     86,272
ssj_ops@calibrated=85,918
100% 99.5% 85,918 85,479
90% 89.9% 77,327 77,246
80% 78.7% 68,735 67,654
70% 71.1% 60,143 61,051
60% 59.6% 51,551 51,183
50% 50.0% 42,959 42,999
40% 40.7% 34,367 34,989
30% 30.1% 25,776 25,833
20% 20.1% 17,184 17,254
10% 10.4% 8,592 8,904
Active Idle   0 0

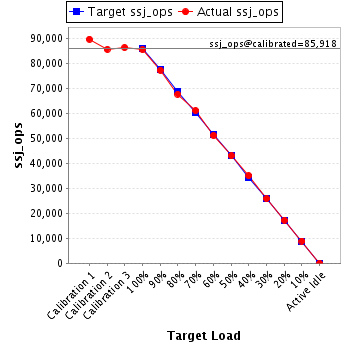

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,653
Calibration 2     85,134
Calibration 3     86,727
ssj_ops@calibrated=85,930
100% 98.9% 85,930 85,004
90% 89.9% 77,337 77,287
80% 80.1% 68,744 68,826
70% 69.9% 60,151 60,030
60% 59.6% 51,558 51,227
50% 49.6% 42,965 42,660
40% 40.4% 34,372 34,702
30% 29.6% 25,779 25,455
20% 20.3% 17,186 17,417
10% 9.9% 8,593 8,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,641
Calibration 2     99,932
Calibration 3     98,065
ssj_ops@calibrated=98,998
100% 100.2% 98,998 99,216
90% 90.6% 89,098 89,720
80% 81.0% 79,199 80,139
70% 70.5% 69,299 69,761
60% 60.0% 59,399 59,405
50% 49.5% 49,499 49,040
40% 40.1% 39,599 39,664
30% 30.8% 29,699 30,527
20% 20.6% 19,800 20,387
10% 10.3% 9,900 10,203
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,626
Calibration 2     86,946
Calibration 3     87,158
ssj_ops@calibrated=87,052
100% 98.7% 87,052 85,927
90% 89.4% 78,347 77,841
80% 78.9% 69,641 68,725
70% 70.9% 60,936 61,712
60% 59.4% 52,231 51,702
50% 49.9% 43,526 43,470
40% 41.1% 34,821 35,763
30% 30.0% 26,116 26,103
20% 20.2% 17,410 17,595
10% 10.2% 8,705 8,844
Active Idle   0 0

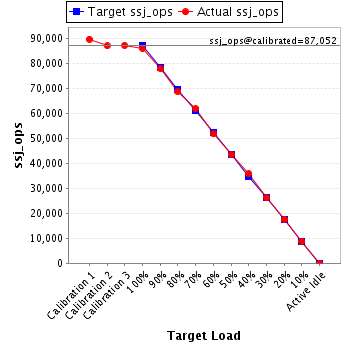

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,134
Calibration 2     96,939
Calibration 3     97,698
ssj_ops@calibrated=97,318
100% 99.4% 97,318 96,758
90% 89.5% 87,586 87,119
80% 80.9% 77,855 78,728
70% 69.2% 68,123 67,380
60% 59.9% 58,391 58,321
50% 50.6% 48,659 49,212
40% 40.5% 38,927 39,420
30% 30.4% 29,195 29,619
20% 19.7% 19,464 19,171
10% 10.2% 9,732 9,949
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,055
Calibration 2     97,910
Calibration 3     97,554
ssj_ops@calibrated=97,732
100% 99.4% 97,732 97,110
90% 89.8% 87,959 87,769
80% 79.5% 78,186 77,659
70% 70.1% 68,412 68,544
60% 59.9% 58,639 58,589
50% 50.1% 48,866 48,918
40% 39.7% 39,093 38,801
30% 29.5% 29,320 28,811
20% 20.0% 19,546 19,581
10% 9.9% 9,773 9,628
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,445
Calibration 2     97,056
Calibration 3     96,684
ssj_ops@calibrated=96,870
100% 100.7% 96,870 97,574
90% 90.3% 87,183 87,493
80% 79.8% 77,496 77,339
70% 71.4% 67,809 69,172
60% 59.4% 58,122 57,553
50% 49.6% 48,435 48,079
40% 39.9% 38,748 38,661
30% 29.7% 29,061 28,777
20% 20.0% 19,374 19,348
10% 10.1% 9,687 9,758
Active Idle   0 0

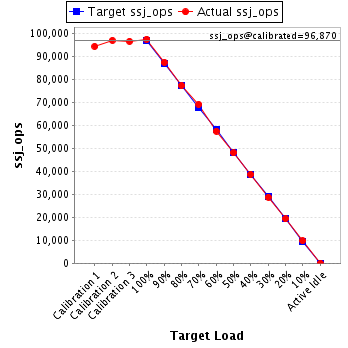

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,040
Calibration 2     94,717
Calibration 3     94,073
ssj_ops@calibrated=94,395
100% 98.3% 94,395 92,806
90% 89.5% 84,955 84,450
80% 80.4% 75,516 75,848
70% 70.0% 66,076 66,044
60% 60.3% 56,637 56,895
50% 50.9% 47,197 48,025
40% 40.1% 37,758 37,898
30% 30.3% 28,318 28,561
20% 20.2% 18,879 19,042
10% 10.2% 9,439 9,587
Active Idle   0 0

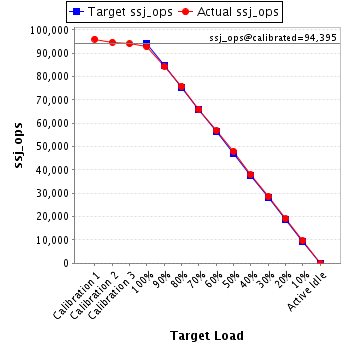

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,889
Calibration 2     96,360
Calibration 3     95,041
ssj_ops@calibrated=95,701
100% 99.4% 95,701 95,159
90% 90.1% 86,131 86,199
80% 79.7% 76,561 76,233
70% 70.4% 66,990 67,398
60% 60.0% 57,420 57,424
50% 49.5% 47,850 47,410
40% 39.9% 38,280 38,216
30% 29.2% 28,710 27,910
20% 20.1% 19,140 19,267
10% 10.1% 9,570 9,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,356
Calibration 2     94,226
Calibration 3     95,335
ssj_ops@calibrated=94,781
100% 100.3% 94,781 95,079
90% 90.6% 85,303 85,884
80% 79.8% 75,825 75,659
70% 70.8% 66,347 67,107
60% 61.2% 56,869 57,982
50% 50.0% 47,390 47,389
40% 39.8% 37,912 37,720
30% 29.8% 28,434 28,247
20% 19.7% 18,956 18,698
10% 10.1% 9,478 9,569
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
