Inspur Corporation Inspur NF5280M5 SPECpower_ssj2008 = 13,064 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Apr 9, 2018
Hardware Availability: Sep-2017 Software Availability: Jan-2015 Publication: May 23, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 454 21.4
Calibration 2 455 21.5
Calibration 3 454 21.6
100% 454 21.3
90% 374 21.1
80% 305 21.4
70% 265 21.4
60% 228 21.4
50% 198 21.5
40% 176 21.6
30% 160 21.5
20% 133 21.5
10% 113 21.5
Active Idle 49.4 21.6

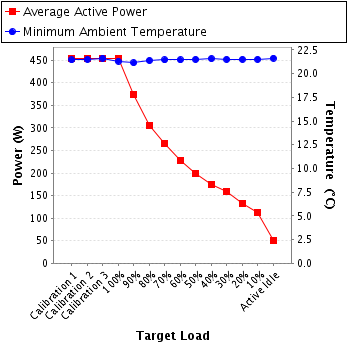

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3TA11005E
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: QDCT170324337-28
Date of Calibration: 27-Jul-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 2.20 5.0 0.929 454 0.3%
Calibration 2 222 300.0 2.20 5.0 0.929 455 0.3%
Calibration 3 222 300.0 2.20 5.0 0.929 454 0.3%
100% 223 300.0 2.19 5.0 0.930 454 0.3%
90% 222 300.0 1.84 2.0 0.914 374 0.3%
80% 222 300.0 1.54 2.0 0.896 305 0.3%
70% 222 300.0 1.36 2.0 0.882 265 0.3%
60% 222 300.0 1.19 2.0 0.864 228 0.3%
50% 222 300.0 1.05 2.0 0.849 198 0.4%
40% 222 300.0 0.951 2.0 0.832 176 0.4%
30% 222 300.0 0.883 2.0 0.817 160 0.4%
20% 222 300.0 0.765 2.0 0.787 133 0.4%
10% 221 300.0 0.672 2.0 0.757 113 0.5%
Active Idle 221 300.0 0.397 2.0 0.563 49.4 0.7%

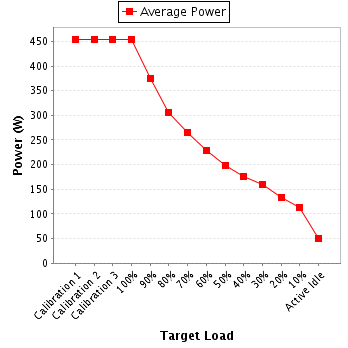

Power details for pwr1
