Quanta Computer Inc. QuantaGrid D51B-2U ssj_ops@100% = 3,381,238
ssj_ops@100% per JVM = 845,310
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: May 20, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: Jun 8, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,364,971
Calibration 2     3,394,244
Calibration 3     3,378,856
ssj_ops@calibrated=3,386,550
100% 99.8% 3,386,550 3,381,238
90% 88.9% 3,047,895 3,011,564
80% 79.4% 2,709,240 2,687,771
70% 69.9% 2,370,585 2,366,949
60% 59.0% 2,031,930 1,998,642
50% 48.8% 1,693,275 1,653,215
40% 40.0% 1,354,620 1,356,241
30% 30.0% 1,015,965 1,016,848
20% 20.0% 677,310 677,618
10% 10.0% 338,655 338,889
Active Idle   0 0
Graph of results
System Under Test
Set: 'D51B-2U'
Set Identifier: D51B-2U
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Quanta Computer Inc.
Model: QuantaGrid D51B-2U
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v4
CPU Characteristics: 22 core, 2.2GHz, 55MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 1Rx8 PC4-2400T-RDB-10; slots A0, B0, C0, D0, E0, F0, G0 ,H0 populated
Power Supply Quantity and Rating (W): 1 x 500
Power Supply Details: Quanta P/N 1HY9ZZZ0291
Disk Drive: 1 x 800G SATA SSD,Quanta P/N ABSAK800000
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated Intel Ethernet Controller I350, 2-port
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Microsoft Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn11g -Xms13g -Xmx13g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=22 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY 0x3FFFFF
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: S2B_3B04
Management Firmware Version: 3.45.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-O2D0BKUQ5B7.001 850,132
WIN-O2D0BKUQ5B7.002 841,907
WIN-O2D0BKUQ5B7.003 851,069
WIN-O2D0BKUQ5B7.004 838,130
ssj_ops@100% 3,381,238
ssj_ops@100% per JVM 845,310
Graph of per-instance results
JVM 'WIN-O2D0BKUQ5B7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     846,550
Calibration 2     851,996
Calibration 3     850,258
ssj_ops@calibrated=851,127
100% 99.9% 851,127 850,132
90% 88.8% 766,014 755,794
80% 79.4% 680,902 675,630
70% 69.8% 595,789 594,406
60% 58.8% 510,676 500,076
50% 48.0% 425,564 408,405
40% 40.0% 340,451 340,065
30% 30.0% 255,338 255,272
20% 19.9% 170,225 169,554
10% 10.0% 85,113 85,417
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-O2D0BKUQ5B7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     836,531
Calibration 2     845,315
Calibration 3     841,289
ssj_ops@calibrated=843,302
100% 99.8% 843,302 841,907
90% 89.0% 758,972 750,337
80% 79.5% 674,642 670,340
70% 70.1% 590,311 590,980
60% 59.0% 505,981 497,250
50% 48.8% 421,651 411,324
40% 40.2% 337,321 338,707
30% 29.9% 252,991 252,382
20% 20.1% 168,660 169,155
10% 10.0% 84,330 84,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-O2D0BKUQ5B7.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     849,438
Calibration 2     855,881
Calibration 3     851,278
ssj_ops@calibrated=853,580
100% 99.7% 853,580 851,069
90% 89.1% 768,222 760,509
80% 79.4% 682,864 677,636
70% 69.9% 597,506 596,889
60% 59.2% 512,148 505,247
50% 48.7% 426,790 415,634
40% 40.2% 341,432 342,725
30% 30.1% 256,074 256,752
20% 20.1% 170,716 171,424
10% 10.0% 85,358 85,638
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-O2D0BKUQ5B7.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     832,452
Calibration 2     841,052
Calibration 3     836,031
ssj_ops@calibrated=838,541
100% 100.0% 838,541 838,130
90% 88.8% 754,687 744,924
80% 79.2% 670,833 664,165
70% 69.7% 586,979 584,673
60% 59.2% 503,125 496,069
50% 49.8% 419,271 417,852
40% 39.9% 335,417 334,744
30% 30.1% 251,562 252,441
20% 20.0% 167,708 167,485
10% 10.0% 83,854 83,461
Active Idle   0 0

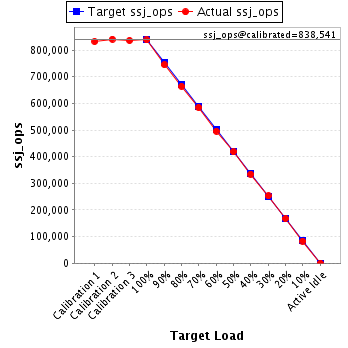

Graph of results
See the JVM Instance Performance Report for additional details.
