Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) ssj_ops@100% = 3,553,431
ssj_ops@100% per JVM = 888,358
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,556,015
Calibration 2     3,548,031
Calibration 3     3,566,015
ssj_ops@calibrated=3,557,023
100% 99.9% 3,557,023 3,553,431
90% 90.9% 3,201,321 3,232,062
80% 79.8% 2,845,618 2,839,026
70% 69.9% 2,489,916 2,487,371
60% 60.0% 2,134,214 2,135,270
50% 50.2% 1,778,512 1,784,074
40% 40.1% 1,422,809 1,425,420
30% 30.0% 1,067,107 1,067,689
20% 19.9% 711,405 708,454
10% 10.0% 355,702 356,524
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: M630
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 Core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx4 PC4-2400T ECC, Dell P/N HNDJ7, Slots A1-4, B1-4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SATA SSD, Dell P/N:KX83R
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Broadcom BCM57810 10Gb Dual Port, Dell P/N C0P7J
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Bobby-Blade6.001 897,957
Bobby-Blade6.002 900,376
Bobby-Blade6.003 881,173
Bobby-Blade6.004 873,925
ssj_ops@100% 3,553,431
ssj_ops@100% per JVM 888,358

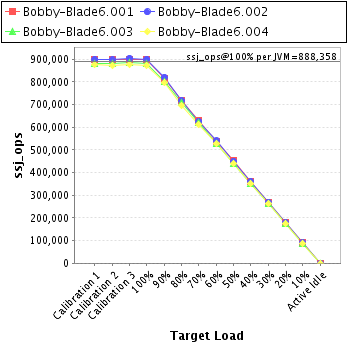

Graph of per-instance results
JVM 'Bobby-Blade6.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     899,532
Calibration 2     897,306
Calibration 3     899,514
ssj_ops@calibrated=898,410
100% 99.9% 898,410 897,957
90% 90.9% 808,569 816,237
80% 79.9% 718,728 717,506
70% 70.0% 628,887 629,276
60% 60.0% 539,046 538,709
50% 50.2% 449,205 451,346
40% 40.3% 359,364 361,780
30% 30.0% 269,523 269,735
20% 19.9% 179,682 179,228
10% 10.0% 89,841 89,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade6.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     899,413
Calibration 2     896,611
Calibration 3     904,285
ssj_ops@calibrated=900,448
100% 100.0% 900,448 900,376
90% 91.2% 810,403 820,792
80% 79.7% 720,358 717,512
70% 69.6% 630,313 626,761
60% 60.0% 540,269 540,254
50% 50.0% 450,224 450,486
40% 40.0% 360,179 360,526
30% 30.0% 270,134 269,912
20% 19.8% 180,090 178,152
10% 10.0% 90,045 90,134
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade6.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     880,981
Calibration 2     882,115
Calibration 3     884,489
ssj_ops@calibrated=883,302
100% 99.8% 883,302 881,173
90% 90.5% 794,972 799,529
80% 80.0% 706,642 706,878
70% 70.1% 618,311 618,904
60% 60.0% 529,981 529,716
50% 50.0% 441,651 442,047
40% 39.9% 353,321 352,429
30% 30.1% 264,991 265,714
20% 20.1% 176,660 177,194
10% 10.0% 88,330 88,439
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade6.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     876,089
Calibration 2     872,000
Calibration 3     877,728
ssj_ops@calibrated=874,864
100% 99.9% 874,864 873,925
90% 90.9% 787,377 795,504
80% 79.7% 699,891 697,129
70% 70.0% 612,405 612,430
60% 60.2% 524,918 526,592
50% 50.3% 437,432 440,195
40% 40.1% 349,945 350,685
30% 30.0% 262,459 262,328
20% 19.9% 174,973 173,881
10% 10.1% 87,486 88,503
Active Idle   0 0

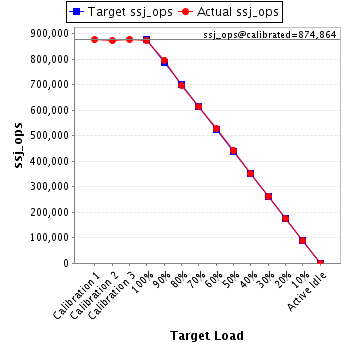

Graph of results
See the JVM Instance Performance Report for additional details.
