Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) ssj_ops@100% = 3,547,233
ssj_ops@100% per JVM = 886,808
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,556,089
Calibration 2     3,541,308
Calibration 3     3,547,250
ssj_ops@calibrated=3,544,279
100% 100.1% 3,544,279 3,547,233
90% 90.5% 3,189,851 3,206,694
80% 79.8% 2,835,423 2,826,900
70% 70.0% 2,480,995 2,480,883
60% 60.1% 2,126,567 2,131,798
50% 50.0% 1,772,139 1,772,453
40% 40.0% 1,417,711 1,417,636
30% 30.0% 1,063,284 1,062,530
20% 20.0% 708,856 708,887
10% 10.0% 354,428 354,919
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: M630
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 Core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx4 PC4-2400T ECC, Dell P/N HNDJ7, Slots A1-4, B1-4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SATA SSD, Dell P/N:KX83R
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Broadcom BCM57810 10Gb Dual Port, Dell P/N C0P7J
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Bobby-Blade4.001 892,829
Bobby-Blade4.002 886,626
Bobby-Blade4.003 884,808
Bobby-Blade4.004 882,971
ssj_ops@100% 3,547,233
ssj_ops@100% per JVM 886,808

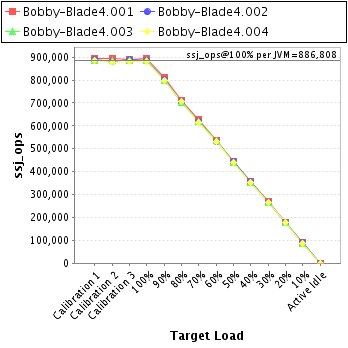

Graph of per-instance results

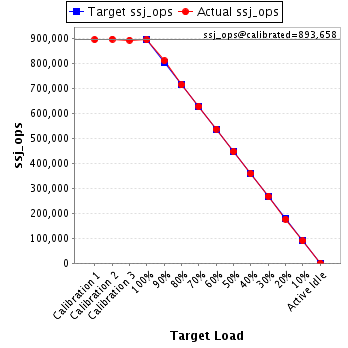

JVM 'Bobby-Blade4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     893,962
Calibration 2     895,674
Calibration 3     891,641
ssj_ops@calibrated=893,658
100% 99.9% 893,658 892,829
90% 90.6% 804,292 809,263
80% 79.8% 714,926 712,915
70% 70.1% 625,560 626,611
60% 60.0% 536,195 536,589
50% 50.0% 446,829 446,421
40% 40.0% 357,463 357,710
30% 30.0% 268,097 267,891
20% 19.7% 178,732 176,284
10% 10.0% 89,366 89,682
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     890,333
Calibration 2     882,754
Calibration 3     888,846
ssj_ops@calibrated=885,800
100% 100.1% 885,800 886,626
90% 90.6% 797,220 802,121
80% 79.8% 708,640 707,038
70% 69.9% 620,060 618,928
60% 60.0% 531,480 531,199
50% 50.2% 442,900 444,965
40% 40.1% 354,320 354,935
30% 29.9% 265,740 265,227
20% 20.1% 177,160 177,661
10% 10.1% 88,580 89,119
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

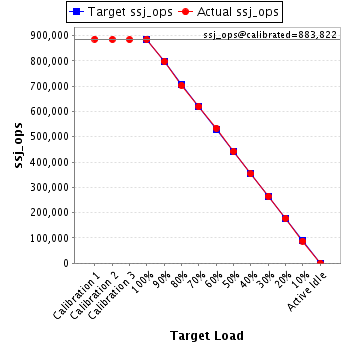

JVM 'Bobby-Blade4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     885,666
Calibration 2     884,222
Calibration 3     883,422
ssj_ops@calibrated=883,822
100% 100.1% 883,822 884,808
90% 90.3% 795,440 797,985
80% 79.5% 707,058 702,337
70% 70.0% 618,675 618,874
60% 60.4% 530,293 534,107
50% 50.0% 441,911 442,212
40% 39.9% 353,529 352,939
30% 30.0% 265,147 264,854
20% 20.1% 176,764 177,756
10% 9.9% 88,382 87,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     886,127
Calibration 2     878,657
Calibration 3     883,340
ssj_ops@calibrated=880,999
100% 100.2% 880,999 882,971
90% 90.5% 792,899 797,325
80% 80.0% 704,799 704,610
70% 70.0% 616,699 616,470
60% 60.1% 528,599 529,903
50% 49.8% 440,499 438,855
40% 40.0% 352,400 352,052
30% 30.0% 264,300 264,558
20% 20.1% 176,200 177,186
10% 10.0% 88,100 88,268
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
