Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) ssj_ops@100% = 3,566,205
ssj_ops@100% per JVM = 891,551
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,565,525
Calibration 2     3,564,921
Calibration 3     3,578,628
ssj_ops@calibrated=3,571,774
100% 99.8% 3,571,774 3,566,205
90% 90.5% 3,214,597 3,232,254
80% 79.9% 2,857,420 2,852,843
70% 69.9% 2,500,242 2,496,619
60% 59.9% 2,143,065 2,140,943
50% 49.9% 1,785,887 1,781,315
40% 40.0% 1,428,710 1,428,280
30% 30.0% 1,071,532 1,072,653
20% 20.0% 714,355 714,537
10% 10.0% 357,177 358,391
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: M630
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 Core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx4 PC4-2400T ECC, Dell P/N HNDJ7, Slots A1-4, B1-4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SATA SSD, Dell P/N:KX83R
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Broadcom BCM57810 10Gb Dual Port, Dell P/N C0P7J
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Bobby-Blade13.001 904,340
Bobby-Blade13.002 890,823
Bobby-Blade13.003 884,514
Bobby-Blade13.004 886,529
ssj_ops@100% 3,566,205
ssj_ops@100% per JVM 891,551
Graph of per-instance results
JVM 'Bobby-Blade13.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     899,472
Calibration 2     899,854
Calibration 3     903,675
ssj_ops@calibrated=901,765
100% 100.3% 901,765 904,340
90% 90.4% 811,588 815,272
80% 79.8% 721,412 719,476
70% 69.7% 631,235 628,550
60% 59.9% 541,059 540,394
50% 49.9% 450,882 449,687
40% 40.1% 360,706 361,715
30% 30.1% 270,529 271,143
20% 20.1% 180,353 181,257
10% 10.0% 90,176 89,938
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade13.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     894,393
Calibration 2     895,168
Calibration 3     897,725
ssj_ops@calibrated=896,447
100% 99.4% 896,447 890,823
90% 90.5% 806,802 811,024
80% 79.9% 717,157 716,314
70% 70.3% 627,513 629,785
60% 59.7% 537,868 535,297
50% 50.0% 448,223 448,414
40% 40.1% 358,579 359,661
30% 29.8% 268,934 267,153
20% 20.0% 179,289 178,968
10% 10.0% 89,645 90,081
Active Idle   0 0

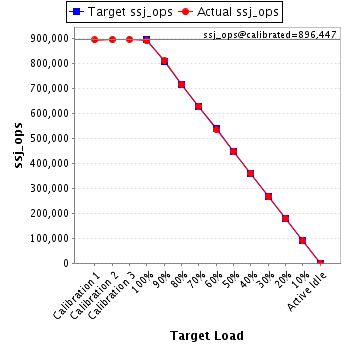

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade13.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     877,965
Calibration 2     882,047
Calibration 3     884,053
ssj_ops@calibrated=883,050
100% 100.2% 883,050 884,514
90% 90.5% 794,745 799,595
80% 79.9% 706,440 705,306
70% 69.6% 618,135 614,893
60% 60.0% 529,830 529,563
50% 49.8% 441,525 439,763
40% 39.8% 353,220 351,579
30% 30.1% 264,915 265,534
20% 20.0% 176,610 176,953
10% 10.1% 88,305 88,934
Active Idle   0 0

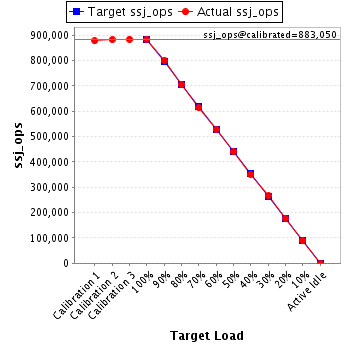

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade13.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     893,695
Calibration 2     887,852
Calibration 3     893,175
ssj_ops@calibrated=890,513
100% 99.6% 890,513 886,529
90% 90.6% 801,462 806,363
80% 79.9% 712,411 711,747
70% 70.0% 623,359 623,391
60% 60.2% 534,308 535,689
50% 49.8% 445,257 443,452
40% 39.9% 356,205 355,325
30% 30.2% 267,154 268,823
20% 19.9% 178,103 177,359
10% 10.0% 89,051 89,439
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
