Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) ssj_ops@100% = 3,554,913
ssj_ops@100% per JVM = 888,728
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,570,589
Calibration 2     3,569,306
Calibration 3     3,566,547
ssj_ops@calibrated=3,567,927
100% 99.6% 3,567,927 3,554,913
90% 90.3% 3,211,134 3,223,558
80% 79.9% 2,854,341 2,849,491
70% 69.9% 2,497,549 2,495,329
60% 60.1% 2,140,756 2,143,642
50% 50.0% 1,783,963 1,782,860
40% 40.0% 1,427,171 1,426,397
30% 30.0% 1,070,378 1,069,225
20% 19.9% 713,585 711,225
10% 10.0% 356,793 358,011
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: M630
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 Core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx4 PC4-2400T ECC, Dell P/N HNDJ7, Slots A1-4, B1-4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SATA SSD, Dell P/N:KX83R
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Broadcom BCM57810 10Gb Dual Port, Dell P/N C0P7J
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Bobby-Blade10.001 893,356
Bobby-Blade10.002 897,369
Bobby-Blade10.003 885,961
Bobby-Blade10.004 878,226
ssj_ops@100% 3,554,913
ssj_ops@100% per JVM 888,728
Graph of per-instance results
JVM 'Bobby-Blade10.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     902,561
Calibration 2     896,740
Calibration 3     894,432
ssj_ops@calibrated=895,586
100% 99.8% 895,586 893,356
90% 90.6% 806,027 811,339
80% 79.9% 716,469 715,331
70% 69.6% 626,910 623,470
60% 60.3% 537,352 540,403
50% 50.0% 447,793 447,366
40% 40.0% 358,234 357,861
30% 30.0% 268,676 268,799
20% 20.0% 179,117 178,749
10% 10.0% 89,559 89,778
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade10.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     896,210
Calibration 2     902,128
Calibration 3     903,054
ssj_ops@calibrated=902,591
100% 99.4% 902,591 897,369
90% 90.2% 812,332 814,119
80% 79.9% 722,073 721,390
70% 69.9% 631,814 631,162
60% 60.1% 541,554 542,396
50% 50.0% 451,295 450,900
40% 40.0% 361,036 360,765
30% 29.9% 270,777 269,967
20% 19.7% 180,518 178,139
10% 10.1% 90,259 90,762
Active Idle   0 0

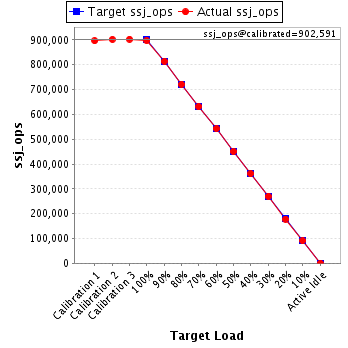

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade10.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     894,391
Calibration 2     889,118
Calibration 3     887,423
ssj_ops@calibrated=888,270
100% 99.7% 888,270 885,961
90% 90.5% 799,443 803,484
80% 79.9% 710,616 709,762
70% 70.1% 621,789 622,715
60% 59.9% 532,962 531,790
50% 50.0% 444,135 444,076
40% 40.1% 355,308 355,819
30% 30.0% 266,481 266,641
20% 19.9% 177,654 177,180
10% 10.0% 88,827 88,898
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade10.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     877,427
Calibration 2     881,321
Calibration 3     881,637
ssj_ops@calibrated=881,479
100% 99.6% 881,479 878,226
90% 90.1% 793,331 794,616
80% 79.8% 705,183 703,008
70% 70.1% 617,035 617,982
60% 60.0% 528,887 529,052
50% 50.0% 440,740 440,518
40% 39.9% 352,592 351,951
30% 29.9% 264,444 263,818
20% 20.1% 176,296 177,156
10% 10.0% 88,148 88,573
Active Idle   0 0

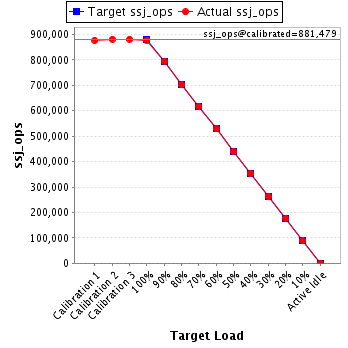

Graph of results
See the JVM Instance Performance Report for additional details.
