Huawei Technologies Co., Ltd Fusion Server XH620 V3 SPECpower_ssj2008 = 10,653 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Apr 11, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Apr 27, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,411 22.1
Calibration 2 1,418 22.1
Calibration 3 1,420 22.2
100% 1,419 22.1
90% 1,213 22.3
80% 1,042 22.3
70% 863 22.4
60% 787 22.6
50% 668 22.5
40% 598 22.4
30% 553 22.4
20% 476 22.4
10% 396 22.6
Active Idle 217 22.4
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91L704197
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: A15012323-0014
Date of Calibration: 9-Dec-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to PSU 1,PSU2,PSU3,PSU4
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: Unknown
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 226 300.0 6.26 10.0 0.998 1,411 0.4%
Calibration 2 226 300.0 6.29 10.0 0.998 1,418 0.4%
Calibration 3 226 300.0 6.30 10.0 0.998 1,420 0.4%
100% 226 300.0 6.29 10.0 0.998 1,419 0.4%
90% 226 300.0 5.38 10.0 0.997 1,213 0.4%
80% 226 300.0 4.63 5.0 0.996 1,042 0.3%
70% 227 300.0 3.82 5.0 0.995 863 0.3%
60% 227 300.0 3.49 5.0 0.995 787 0.4%
50% 227 300.0 2.96 5.0 0.993 668 0.4%
40% 227 300.0 2.65 5.0 0.992 598 0.4%
30% 227 300.0 2.46 5.0 0.991 553 0.4%
20% 227 300.0 2.12 2.0 0.989 476 0.3%
10% 227 300.0 1.77 2.0 0.986 396 0.3%
Active Idle 227 300.0 0.977 1.0 0.974 217 0.3%

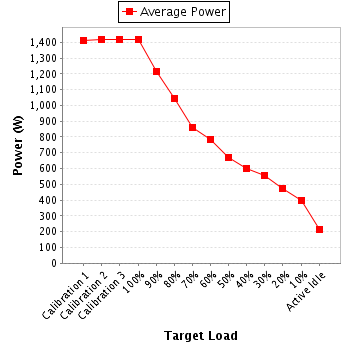

Power details for pwr1
