Huawei Technologies Co., Ltd Fusion Server RH2288H V3 SPECpower_ssj2008 = 12,212 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Apr 4, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Apr 27, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 329 21.7
Calibration 2 328 21.8
Calibration 3 329 21.8
100% 329 21.9
90% 277 22.1
80% 228 22.1
70% 187 22.0
60% 164 21.9
50% 145 22.2
40% 131 22.4
30% 117 22.6
20% 101 22.9
10% 83.7 23.1
Active Idle 43.5 23.2

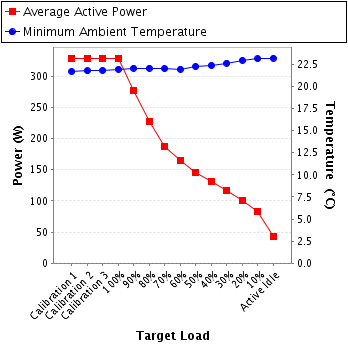

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91L704197
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: A15012323-0014
Date of Calibration: 9-Dec-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.1-4db18c59-20150211
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 227 300.0 1.46 2.0 0.991 329 0.4%
Calibration 2 227 300.0 1.46 2.0 0.991 328 0.4%
Calibration 3 227 300.0 1.46 2.0 0.991 329 0.4%
100% 227 300.0 1.46 2.0 0.991 329 0.4%
90% 227 300.0 1.23 2.0 0.987 277 0.4%
80% 227 300.0 1.02 2.0 0.983 228 0.5%
70% 227 300.0 0.839 2.0 0.980 187 0.5%
60% 227 300.0 0.738 1.0 0.977 164 0.4%
50% 227 300.0 0.657 1.0 0.971 145 0.4%
40% 227 300.0 0.597 1.0 0.968 131 0.4%
30% 227 300.0 0.534 1.0 0.963 117 0.5%
20% 228 300.0 0.459 1.0 0.968 101 0.5%
10% 228 300.0 0.382 0.5 0.963 83.7 0.4%
Active Idle 228 300.0 0.224 0.5 0.853 43.5 0.6%
Power details for pwr1
