Fujitsu FUJITSU Server PRIMERGY RX1330 M2 ssj_ops@100% = 474,047
ssj_ops@100% per JVM = 118,512
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Nov 20, 2015
Hardware Availability: Feb-2016 Software Availability: Jan-2015 Publication: Dec 15, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     465,420
Calibration 2     472,909
Calibration 3     473,935
ssj_ops@calibrated=473,422
100% 100.1% 473,422 474,047
90% 90.3% 426,080 427,509
80% 80.1% 378,738 379,044
70% 70.3% 331,395 332,812
60% 59.7% 284,053 282,416
50% 50.0% 236,711 236,669
40% 40.4% 189,369 191,106
30% 29.8% 142,027 141,210
20% 20.0% 94,684 94,558
10% 10.0% 47,342 47,253
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX1330 M2'
Set Identifier: RX1330 M2
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX1330 M2
Form Factor: 1U
CPU Name: Intel Xeon E3-1260L v5
CPU Characteristics: 4-Core, 2.90GHz, 8MB L3 Cache
CPU Frequency (MHz): 2900
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8 GB DDR4, unbuffered, ECC, 2133 MHz, PC4-2133U, DIMM, 2Rx8; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Standard power supply part of base unit S26361-K1550-V101
Disk Drive: 1 x SSD SATA 6G 64GB DOM N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn2300m -Xms2750m -Xmx2750m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /AFFINITY [0x3,0xC,0x30,0xC0]
JVM Instances: 4
JVM Initial Heap (MB): 2750
JVM Maximum Heap (MB): 2750
JVM Address Bits: 64
Boot Firmware Version: R1.4.0
Management Firmware Version: 8.07F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-LKNTROCMLCT.001 118,638
WIN-LKNTROCMLCT.002 118,413
WIN-LKNTROCMLCT.003 119,108
WIN-LKNTROCMLCT.004 117,888
ssj_ops@100% 474,047
ssj_ops@100% per JVM 118,512

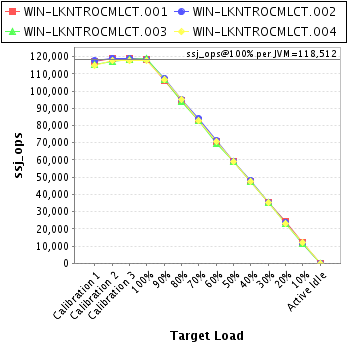

Graph of per-instance results
JVM 'WIN-LKNTROCMLCT.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,153
Calibration 2     118,674
Calibration 3     118,997
ssj_ops@calibrated=118,836
100% 99.8% 118,836 118,638
90% 89.5% 106,952 106,402
80% 79.4% 95,068 94,408
70% 70.0% 83,185 83,153
60% 59.5% 71,301 70,761
50% 49.6% 59,418 58,983
40% 40.1% 47,534 47,696
30% 29.6% 35,651 35,179
20% 20.5% 23,767 24,415
10% 10.1% 11,884 11,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LKNTROCMLCT.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,739
Calibration 2     119,150
Calibration 3     118,788
ssj_ops@calibrated=118,969
100% 99.5% 118,969 118,413
90% 90.4% 107,072 107,523
80% 80.0% 95,175 95,126
70% 70.6% 83,278 84,046
60% 59.9% 71,381 71,240
50% 49.9% 59,485 59,363
40% 40.5% 47,588 48,209
30% 29.7% 35,691 35,309
20% 20.0% 23,794 23,817
10% 9.8% 11,897 11,659
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LKNTROCMLCT.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,508
Calibration 2     117,395
Calibration 3     118,583
ssj_ops@calibrated=117,989
100% 100.9% 117,989 119,108
90% 90.7% 106,190 107,043
80% 79.8% 94,391 94,172
70% 70.2% 82,592 82,876
60% 58.9% 70,793 69,500
50% 50.3% 58,994 59,332
40% 40.2% 47,196 47,410
30% 30.1% 35,397 35,483
20% 19.8% 23,598 23,307
10% 9.8% 11,799 11,604
Active Idle   0 0

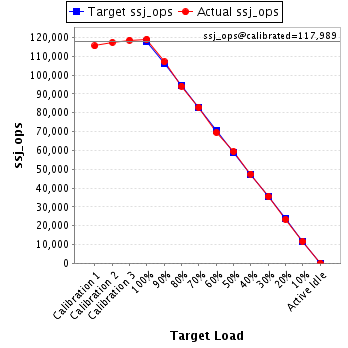

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LKNTROCMLCT.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,020
Calibration 2     117,690
Calibration 3     117,567
ssj_ops@calibrated=117,628
100% 100.2% 117,628 117,888
90% 90.6% 105,866 106,542
80% 81.1% 94,103 95,338
70% 70.3% 82,340 82,737
60% 60.3% 70,577 70,916
50% 50.2% 58,814 58,991
40% 40.6% 47,051 47,791
30% 30.0% 35,289 35,239
20% 19.6% 23,526 23,019
10% 10.2% 11,763 11,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
