Huawei Technologies Co., Ltd Fusion Server RH2288H V3 | SPECpower_ssj2008 = 10,700 overall ssj_ops/watt | ||||
Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Aug 25, 2015 |
Hardware Availability: | May-2015 | Software Availability: | Jun-2013 | Publication: | Sep 25, 2015 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 267 | 21.8 |
Calibration 2 | 267 | 21.9 |
Calibration 3 | 266 | 21.7 |
100% | 266 | 21.6 |
90% | 237 | 21.7 |
80% | 208 | 21.6 |
70% | 183 | 21.6 |
60% | 160 | 21.4 |
50% | 141 | 21.3 |
40% | 125 | 21.2 |
30% | 110 | 21.2 |
20% | 96.6 | 21.3 |
10% | 83.2 | 21.2 |
Active Idle | 44.8 | 21.2 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
Model: | WT210 |
Serial Number: | 91K630156 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
Accredited by: | Calibration and Testing Center of CEPREI |
Calibration Label: | B14011496-0010 |
Date of Calibration: | 30-Jul-2015 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.7.1-4db18c59-20150211 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | placed in front the main airflow inlet of the SUT less than 50mm. |

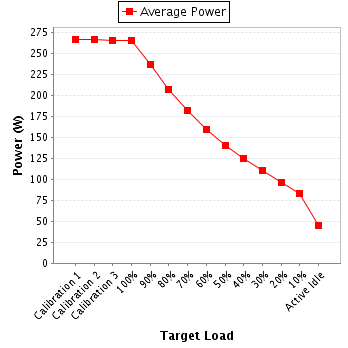

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 221 | 300.0 | 1.24 | 2.0 | 0.976 | 267 | 0.4% |
Calibration 2 | 221 | 300.0 | 1.24 | 2.0 | 0.976 | 267 | 0.4% |
Calibration 3 | 221 | 300.0 | 1.23 | 2.0 | 0.976 | 266 | 0.4% |
100% | 221 | 300.0 | 1.23 | 2.0 | 0.976 | 266 | 0.4% |
90% | 221 | 300.0 | 1.10 | 2.0 | 0.972 | 237 | 0.5% |
80% | 222 | 300.0 | 0.970 | 1.0 | 0.967 | 208 | 0.3% |
70% | 222 | 300.0 | 0.857 | 1.0 | 0.961 | 183 | 0.4% |
60% | 222 | 300.0 | 0.755 | 1.0 | 0.955 | 160 | 0.4% |
50% | 222 | 300.0 | 0.669 | 1.0 | 0.949 | 141 | 0.4% |
40% | 222 | 300.0 | 0.596 | 1.0 | 0.941 | 125 | 0.5% |
30% | 222 | 300.0 | 0.528 | 1.0 | 0.940 | 110 | 0.5% |
20% | 222 | 300.0 | 0.467 | 0.5 | 0.932 | 96.6 | 0.4% |
10% | 222 | 300.0 | 0.407 | 0.5 | 0.919 | 83.2 | 0.4% |
Active Idle | 223 | 300.0 | 0.261 | 0.5 | 0.770 | 44.8 | 0.7% |
