Dell Inc. PowerEdge FC630 (Intel Xeon E5-2699 v3 2.30 GHz) ssj_ops@100% = 3,245,711
ssj_ops@100% per JVM = 90,159
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jul 10, 2015
Hardware Availability: Jun-2015 Software Availability: Jun-2013 Publication: Aug 6, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,029,928
Calibration 2     3,244,170
Calibration 3     3,241,998
ssj_ops@calibrated=3,243,084
100% 100.1% 3,243,084 3,245,711
90% 91.8% 2,918,775 2,976,365
80% 79.9% 2,594,467 2,591,126
70% 69.9% 2,270,159 2,266,496
60% 59.9% 1,945,850 1,942,243
50% 49.9% 1,621,542 1,619,860
40% 40.0% 1,297,233 1,297,300
30% 30.1% 972,925 976,505
20% 20.0% 648,617 649,269
10% 10.0% 324,308 323,873
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: FC630
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge FC630 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; slots A1-4, B1-4 populated Dell P/N H8PGM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 120GB SATA SSD Dell P/N XRD5Y
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 520-k Dual Port 10 Gb Ethernet, Dell P/N JVFVR
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver power plan in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled,AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: /NODE [0,1,2,3] /AFFINITY[0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.2.5
Management Firmware Version: iDRAC 2.15.10.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
FC630-04.001 90,785
FC630-04.002 88,929
FC630-04.003 91,600
FC630-04.004 89,532
FC630-04.005 86,099
FC630-04.006 90,276
FC630-04.007 90,563
FC630-04.008 90,845
FC630-04.009 91,302
FC630-04.010 88,819
FC630-04.011 90,659
FC630-04.012 90,500
FC630-04.013 92,218
FC630-04.014 85,945
FC630-04.015 90,399
FC630-04.016 90,115
FC630-04.017 92,147
FC630-04.018 92,119
FC630-04.019 89,830
FC630-04.020 87,424
FC630-04.021 90,713
FC630-04.022 89,928
FC630-04.023 90,741
FC630-04.024 89,512
FC630-04.025 92,245
FC630-04.026 90,543
FC630-04.027 89,691
FC630-04.028 89,176
FC630-04.029 87,445
FC630-04.030 90,249
FC630-04.031 90,463
FC630-04.032 91,253
FC630-04.033 89,700
FC630-04.034 91,489
FC630-04.035 90,934
FC630-04.036 91,522
ssj_ops@100% 3,245,711
ssj_ops@100% per JVM 90,159

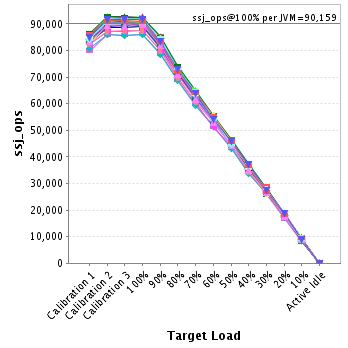

Graph of per-instance results
JVM 'FC630-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,967
Calibration 2     91,484
Calibration 3     90,666
ssj_ops@calibrated=91,075
100% 99.7% 91,075 90,785
90% 93.1% 81,968 84,810
80% 79.6% 72,860 72,540
70% 69.4% 63,753 63,237
60% 59.4% 54,645 54,090
50% 49.3% 45,538 44,894
40% 39.7% 36,430 36,157
30% 31.2% 27,323 28,380
20% 20.0% 18,215 18,172
10% 10.1% 9,108 9,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,083
Calibration 2     88,794
Calibration 3     89,120
ssj_ops@calibrated=88,957
100% 100.0% 88,957 88,929
90% 90.9% 80,062 80,878
80% 79.6% 71,166 70,805
70% 69.6% 62,270 61,955
60% 59.6% 53,374 53,051
50% 50.3% 44,479 44,758
40% 40.3% 35,583 35,833
30% 30.6% 26,687 27,213
20% 20.7% 17,791 18,445
10% 9.9% 8,896 8,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,879
Calibration 2     91,131
Calibration 3     91,474
ssj_ops@calibrated=91,302
100% 100.3% 91,302 91,600
90% 92.0% 82,172 83,956
80% 80.4% 73,042 73,403
70% 70.7% 63,912 64,525
60% 60.4% 54,781 55,131
50% 48.9% 45,651 44,671
40% 40.2% 36,521 36,698
30% 30.0% 27,391 27,433
20% 19.9% 18,260 18,129
10% 10.5% 9,130 9,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,648
Calibration 2     89,302
Calibration 3     89,305
ssj_ops@calibrated=89,304
100% 100.3% 89,304 89,532
90% 91.6% 80,373 81,829
80% 80.5% 71,443 71,876
70% 70.1% 62,512 62,639
60% 60.0% 53,582 53,619
50% 49.8% 44,652 44,498
40% 40.6% 35,721 36,270
30% 30.6% 26,791 27,347
20% 19.9% 17,861 17,766
10% 10.2% 8,930 9,086
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,749
Calibration 2     85,937
Calibration 3     85,626
ssj_ops@calibrated=85,782
100% 100.4% 85,782 86,099
90% 91.8% 77,203 78,741
80% 80.5% 68,625 69,060
70% 69.7% 60,047 59,801
60% 59.9% 51,469 51,383
50% 50.4% 42,891 43,246
40% 39.9% 34,313 34,196
30% 30.0% 25,734 25,721
20% 19.6% 17,156 16,789
10% 9.7% 8,578 8,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,980
Calibration 2     90,726
Calibration 3     90,471
ssj_ops@calibrated=90,598
100% 99.6% 90,598 90,276
90% 91.4% 81,539 82,828
80% 79.3% 72,479 71,819
70% 70.5% 63,419 63,916
60% 59.8% 54,359 54,147
50% 50.0% 45,299 45,320
40% 40.8% 36,239 36,932
30% 30.1% 27,180 27,280
20% 20.5% 18,120 18,551
10% 9.7% 9,060 8,753
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,694
Calibration 2     89,807
Calibration 3     89,501
ssj_ops@calibrated=89,654
100% 101.0% 89,654 90,563
90% 91.7% 80,689 82,177
80% 79.3% 71,723 71,082
70% 70.2% 62,758 62,904
60% 59.6% 53,792 53,422
50% 49.9% 44,827 44,778
40% 40.4% 35,862 36,189
30% 29.7% 26,896 26,649
20% 19.6% 17,931 17,529
10% 9.8% 8,965 8,811
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,961
Calibration 2     91,164
Calibration 3     91,257
ssj_ops@calibrated=91,211
100% 99.6% 91,211 90,845
90% 92.7% 82,090 84,552
80% 80.5% 72,968 73,459
70% 70.2% 63,847 64,070
60% 60.3% 54,726 55,011
50% 49.4% 45,605 45,070
40% 40.0% 36,484 36,501
30% 29.9% 27,363 27,309
20% 19.7% 18,242 17,984
10% 9.9% 9,121 9,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,912
Calibration 2     91,044
Calibration 3     91,007
ssj_ops@calibrated=91,026
100% 100.3% 91,026 91,302
90% 91.7% 81,923 83,430
80% 80.7% 72,821 73,462
70% 69.0% 63,718 62,832
60% 59.8% 54,615 54,402
50% 50.3% 45,513 45,742
40% 39.5% 36,410 35,942
30% 30.4% 27,308 27,683
20% 19.4% 18,205 17,617
10% 10.0% 9,103 9,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,997
Calibration 2     88,775
Calibration 3     88,695
ssj_ops@calibrated=88,735
100% 100.1% 88,735 88,819
90% 92.0% 79,862 81,662
80% 80.2% 70,988 71,197
70% 69.9% 62,115 62,014
60% 60.4% 53,241 53,564
50% 50.9% 44,368 45,141
40% 39.8% 35,494 35,360
30% 30.5% 26,621 27,105
20% 20.2% 17,747 17,968
10% 10.1% 8,874 8,946
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,020
Calibration 2     90,634
Calibration 3     90,383
ssj_ops@calibrated=90,508
100% 100.2% 90,508 90,659
90% 91.2% 81,457 82,519
80% 80.2% 72,407 72,618
70% 69.0% 63,356 62,415
60% 60.1% 54,305 54,437
50% 49.8% 45,254 45,101
40% 40.2% 36,203 36,418
30% 29.9% 27,152 27,027
20% 19.9% 18,102 18,004
10% 9.6% 9,051 8,717
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

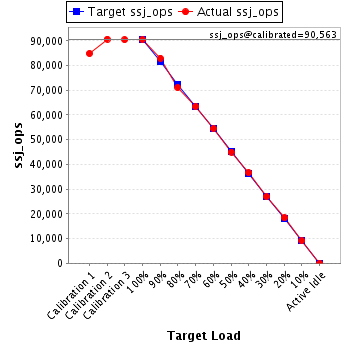

JVM 'FC630-04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,882
Calibration 2     90,676
Calibration 3     90,451
ssj_ops@calibrated=90,563
100% 99.9% 90,563 90,500
90% 91.7% 81,507 83,024
80% 78.5% 72,451 71,104
70% 70.1% 63,394 63,480
60% 60.2% 54,338 54,489
50% 49.7% 45,282 45,013
40% 40.5% 36,225 36,638
30% 29.8% 27,169 27,012
20% 20.3% 18,113 18,405
10% 10.1% 9,056 9,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,436
Calibration 2     92,467
Calibration 3     92,200
ssj_ops@calibrated=92,334
100% 99.9% 92,334 92,218
90% 92.0% 83,100 84,970
80% 79.5% 73,867 73,395
70% 70.0% 64,633 64,614
60% 59.9% 55,400 55,304
50% 49.3% 46,167 45,528
40% 39.7% 36,933 36,677
30% 29.6% 27,700 27,350
20% 20.0% 18,467 18,487
10% 10.1% 9,233 9,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,645
Calibration 2     85,857
Calibration 3     85,583
ssj_ops@calibrated=85,720
100% 100.3% 85,720 85,945
90% 91.4% 77,148 78,321
80% 80.3% 68,576 68,823
70% 69.4% 60,004 59,482
60% 59.8% 51,432 51,270
50% 50.2% 42,860 43,005
40% 39.3% 34,288 33,657
30% 30.6% 25,716 26,190
20% 20.2% 17,144 17,329
10% 10.0% 8,572 8,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,506
Calibration 2     90,202
Calibration 3     89,935
ssj_ops@calibrated=90,068
100% 100.4% 90,068 90,399
90% 92.6% 81,061 83,367
80% 79.5% 72,055 71,620
70% 69.6% 63,048 62,699
60% 60.2% 54,041 54,192
50% 50.2% 45,034 45,237
40% 39.7% 36,027 35,755
30% 30.3% 27,020 27,261
20% 20.4% 18,014 18,346
10% 10.0% 9,007 9,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,413
Calibration 2     90,464
Calibration 3     90,671
ssj_ops@calibrated=90,568
100% 99.5% 90,568 90,115
90% 91.9% 81,511 83,251
80% 79.2% 72,454 71,694
70% 69.8% 63,398 63,179
60% 60.9% 54,341 55,151
50% 50.1% 45,284 45,372
40% 40.2% 36,227 36,407
30% 30.2% 27,170 27,324
20% 20.0% 18,114 18,133
10% 9.9% 9,057 8,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

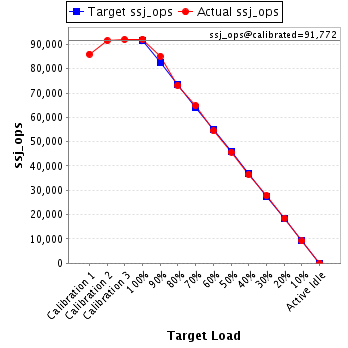

JVM 'FC630-04.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,989
Calibration 2     91,534
Calibration 3     92,010
ssj_ops@calibrated=91,772
100% 100.4% 91,772 92,147
90% 92.8% 82,595 85,130
80% 79.7% 73,418 73,172
70% 70.6% 64,241 64,823
60% 59.3% 55,063 54,447
50% 49.8% 45,886 45,689
40% 39.8% 36,709 36,512
30% 30.2% 27,532 27,745
20% 20.2% 18,354 18,539
10% 10.0% 9,177 9,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,306
Calibration 2     92,307
Calibration 3     92,128
ssj_ops@calibrated=92,218
100% 99.9% 92,218 92,119
90% 91.6% 82,996 84,445
80% 79.4% 73,774 73,252
70% 70.4% 64,552 64,894
60% 60.0% 55,331 55,294
50% 49.9% 46,109 46,013
40% 39.6% 36,887 36,512
30% 29.6% 27,665 27,342
20% 19.7% 18,444 18,159
10% 10.0% 9,222 9,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,621
Calibration 2     89,388
Calibration 3     89,163
ssj_ops@calibrated=89,276
100% 100.6% 89,276 89,830
90% 92.0% 80,348 82,090
80% 79.9% 71,420 71,339
70% 69.8% 62,493 62,326
60% 59.7% 53,565 53,270
50% 51.0% 44,638 45,498
40% 39.7% 35,710 35,408
30% 29.3% 26,783 26,115
20% 19.9% 17,855 17,801
10% 9.9% 8,928 8,842
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

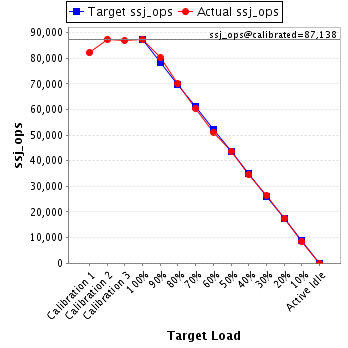

JVM 'FC630-04.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,145
Calibration 2     87,306
Calibration 3     86,971
ssj_ops@calibrated=87,138
100% 100.3% 87,138 87,424
90% 92.0% 78,424 80,136
80% 80.3% 69,711 69,967
70% 69.5% 60,997 60,542
60% 58.8% 52,283 51,196
50% 50.2% 43,569 43,730
40% 39.8% 34,855 34,646
30% 30.3% 26,141 26,425
20% 20.0% 17,428 17,392
10% 9.8% 8,714 8,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,904
Calibration 2     90,442
Calibration 3     90,535
ssj_ops@calibrated=90,489
100% 100.2% 90,489 90,713
90% 91.4% 81,440 82,726
80% 80.3% 72,391 72,637
70% 69.9% 63,342 63,221
60% 59.5% 54,293 53,809
50% 49.7% 45,244 44,934
40% 39.9% 36,195 36,103
30% 29.9% 27,147 27,087
20% 20.0% 18,098 18,068
10% 9.9% 9,049 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,785
Calibration 2     89,706
Calibration 3     89,669
ssj_ops@calibrated=89,687
100% 100.3% 89,687 89,928
90% 91.9% 80,719 82,457
80% 80.8% 71,750 72,430
70% 69.9% 62,781 62,727
60% 59.8% 53,812 53,639
50% 49.4% 44,844 44,273
40% 40.3% 35,875 36,129
30% 30.4% 26,906 27,302
20% 20.1% 17,937 18,054
10% 10.4% 8,969 9,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,379
Calibration 2     91,103
Calibration 3     90,597
ssj_ops@calibrated=90,850
100% 99.9% 90,850 90,741
90% 91.5% 81,765 83,120
80% 79.6% 72,680 72,282
70% 69.9% 63,595 63,532
60% 60.4% 54,510 54,851
50% 50.0% 45,425 45,461
40% 39.8% 36,340 36,149
30% 30.3% 27,255 27,525
20% 20.2% 18,170 18,376
10% 10.3% 9,085 9,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

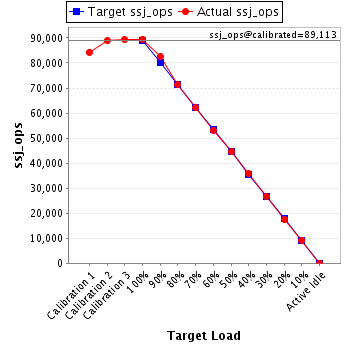

JVM 'FC630-04.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,310
Calibration 2     88,882
Calibration 3     89,345
ssj_ops@calibrated=89,113
100% 100.4% 89,113 89,512
90% 92.7% 80,202 82,577
80% 80.0% 71,291 71,307
70% 69.7% 62,379 62,150
60% 59.7% 53,468 53,194
50% 50.0% 44,557 44,567
40% 40.3% 35,645 35,873
30% 30.0% 26,734 26,770
20% 19.7% 17,823 17,555
10% 10.3% 8,911 9,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

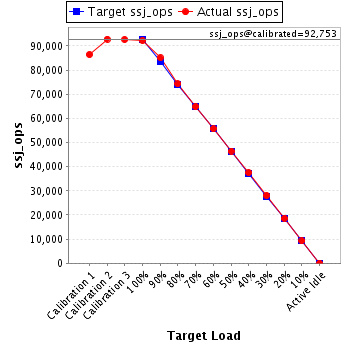

JVM 'FC630-04.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,421
Calibration 2     92,817
Calibration 3     92,688
ssj_ops@calibrated=92,753
100% 99.5% 92,753 92,245
90% 91.8% 83,478 85,126
80% 80.1% 74,202 74,303
70% 70.0% 64,927 64,888
60% 60.0% 55,652 55,684
50% 50.1% 46,376 46,445
40% 40.4% 37,101 37,485
30% 30.2% 27,826 28,056
20% 20.1% 18,551 18,629
10% 10.0% 9,275 9,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,118
Calibration 2     90,592
Calibration 3     90,573
ssj_ops@calibrated=90,583
100% 100.0% 90,583 90,543
90% 90.4% 81,525 81,918
80% 79.8% 72,466 72,263
70% 70.3% 63,408 63,665
60% 60.7% 54,350 54,944
50% 51.0% 45,291 46,214
40% 39.8% 36,233 36,037
30% 30.1% 27,175 27,291
20% 20.0% 18,117 18,158
10% 9.5% 9,058 8,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,661
Calibration 2     89,342
Calibration 3     89,280
ssj_ops@calibrated=89,311
100% 100.4% 89,311 89,691
90% 91.4% 80,380 81,601
80% 80.4% 71,449 71,765
70% 69.5% 62,518 62,093
60% 59.8% 53,587 53,424
50% 50.2% 44,655 44,810
40% 39.8% 35,724 35,564
30% 29.9% 26,793 26,721
20% 20.3% 17,862 18,171
10% 9.7% 8,931 8,689
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,545
Calibration 2     89,283
Calibration 3     89,220
ssj_ops@calibrated=89,252
100% 99.9% 89,252 89,176
90% 91.4% 80,327 81,572
80% 80.8% 71,401 72,155
70% 69.8% 62,476 62,285
60% 59.3% 53,551 52,950
50% 49.7% 44,626 44,356
40% 40.4% 35,701 36,054
30% 29.6% 26,776 26,398
20% 19.9% 17,850 17,794
10% 9.7% 8,925 8,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,652
Calibration 2     87,203
Calibration 3     87,356
ssj_ops@calibrated=87,279
100% 100.2% 87,279 87,445
90% 91.8% 78,551 80,156
80% 80.2% 69,823 69,976
70% 69.8% 61,095 60,890
60% 60.4% 52,368 52,737
50% 50.6% 43,640 44,185
40% 39.6% 34,912 34,604
30% 30.5% 26,184 26,586
20% 20.1% 17,456 17,579
10% 10.0% 8,728 8,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,007
Calibration 2     90,400
Calibration 3     90,426
ssj_ops@calibrated=90,413
100% 99.8% 90,413 90,249
90% 92.0% 81,372 83,171
80% 80.3% 72,330 72,582
70% 69.2% 63,289 62,603
60% 58.8% 54,248 53,127
50% 49.8% 45,206 45,006
40% 40.2% 36,165 36,330
30% 30.4% 27,124 27,519
20% 19.5% 18,083 17,662
10% 10.2% 9,041 9,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,964
Calibration 2     91,010
Calibration 3     91,145
ssj_ops@calibrated=91,077
100% 99.3% 91,077 90,463
90% 92.2% 81,969 83,971
80% 79.4% 72,862 72,332
70% 70.4% 63,754 64,123
60% 60.2% 54,646 54,856
50% 49.4% 45,539 44,973
40% 40.0% 36,431 36,431
30% 30.0% 27,323 27,339
20% 20.6% 18,215 18,771
10% 9.9% 9,108 9,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,762
Calibration 2     91,206
Calibration 3     91,402
ssj_ops@calibrated=91,304
100% 99.9% 91,304 91,253
90% 91.6% 82,174 83,629
80% 79.4% 73,043 72,463
70% 70.1% 63,913 63,989
60% 60.5% 54,782 55,200
50% 50.3% 45,652 45,896
40% 40.0% 36,522 36,513
30% 30.5% 27,391 27,838
20% 19.8% 18,261 18,038
10% 10.1% 9,130 9,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,327
Calibration 2     89,371
Calibration 3     89,045
ssj_ops@calibrated=89,208
100% 100.6% 89,208 89,700
90% 91.6% 80,287 81,672
80% 79.7% 71,366 71,071
70% 69.2% 62,446 61,722
60% 59.5% 53,525 53,094
50% 49.5% 44,604 44,167
40% 39.3% 35,683 35,054
30% 29.8% 26,762 26,597
20% 19.5% 17,842 17,412
10% 10.1% 8,921 9,046
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,120
Calibration 2     91,114
Calibration 3     91,399
ssj_ops@calibrated=91,256
100% 100.3% 91,256 91,489
90% 92.4% 82,131 84,343
80% 80.0% 73,005 72,987
70% 70.5% 63,879 64,301
60% 59.8% 54,754 54,561
50% 49.1% 45,628 44,816
40% 40.3% 36,503 36,740
30% 29.9% 27,377 27,295
20% 20.4% 18,251 18,658
10% 9.8% 9,126 8,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,266
Calibration 2     91,183
Calibration 3     91,240
ssj_ops@calibrated=91,211
100% 99.7% 91,211 90,934
90% 91.0% 82,090 83,020
80% 78.8% 72,969 71,878
70% 70.3% 63,848 64,109
60% 60.5% 54,727 55,213
50% 49.9% 45,606 45,550
40% 39.9% 36,485 36,383
30% 29.3% 27,363 26,733
20% 20.0% 18,242 18,241
10% 10.3% 9,121 9,437
Active Idle   0 0

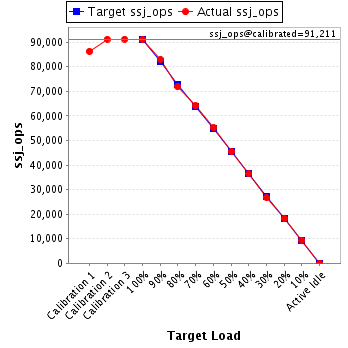

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,869
Calibration 2     91,516
Calibration 3     91,459
ssj_ops@calibrated=91,488
100% 100.0% 91,488 91,522
90% 90.9% 82,339 83,193
80% 79.8% 73,190 73,005
70% 69.8% 64,041 63,851
60% 59.1% 54,893 54,090
50% 50.2% 45,744 45,903
40% 40.6% 36,595 37,146
30% 30.1% 27,446 27,534
20% 20.3% 18,298 18,558
10% 9.7% 9,149 8,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
