DEPO Computers DEPO Race X340H SPECpower_ssj2008 = 1,469 overall ssj_ops/watt
Test Sponsor: DEPO Computers SPEC License #: 4430 Test Method: Single Node
Tested By: DEPO Computers Test Location: Moscow, Russian Federation Test Date: Nov 19, 2014
Hardware Availability: May-2014 Software Availability: Jun-2013 Publication: Dec 19, 2014
System Source: Single Supplier System Designation: Personal System Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 131 26.0
Calibration 2 132 26.2
Calibration 3 132 26.4
100% 131 26.4
90% 128 26.4
80% 124 26.3
70% 120 26.1
60% 117 26.2
50% 112 26.2
40% 107 26.0
30% 101 25.8
20% 94.3 25.6
10% 88.2 25.4
Active Idle 83.2 25.1

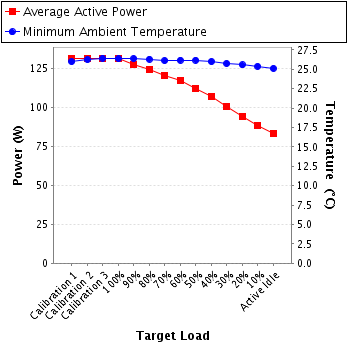

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310 Digital Power Meter
Serial Number: C2PH22077V
Connectivity: USB
Input Connection: Default
Metrology Institute: State Committee of the Russian Federation for Standardization, Metrology and Certification (GOSSTANDART)
Accredited by: FBU "ROSTEST - MOSKVA", Laboratory 551
Calibration Label: CK 0035201
Date of Calibration: 12-May-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connect to PSU and monitor
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 0.782 1.0 0.791 131 0.4%
Calibration 2 212 300.0 0.784 1.0 0.792 132 0.4%
Calibration 3 212 300.0 0.786 1.0 0.791 132 0.4%
100% 212 300.0 0.787 1.0 0.788 131 0.4%
90% 212 300.0 0.777 1.0 0.775 128 0.4%
80% 212 300.0 0.766 1.0 0.765 124 0.5%
70% 212 300.0 0.749 1.0 0.757 120 0.5%
60% 213 300.0 0.735 1.0 0.749 117 0.5%
50% 213 300.0 0.717 1.0 0.736 112 0.5%
40% 214 300.0 0.695 1.0 0.720 107 0.5%
30% 214 300.0 0.670 1.0 0.703 101 0.5%
20% 213 300.0 0.641 1.0 0.689 94.3 0.5%
10% 213 300.0 0.613 1.0 0.675 88.2 0.6%
Active Idle 214 300.0 0.591 1.0 0.659 83.2 0.6%

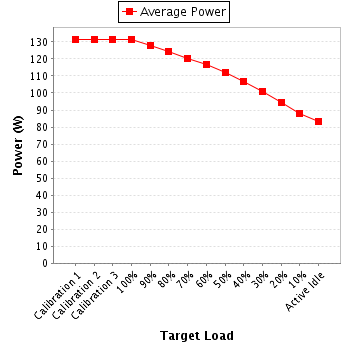

Power details for pwr1
