SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Acer Incoporated Acer AR360 F2 | SPECpower_ssj2008 = 3,900 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Dec 10, 2012 |
| Hardware Availability: | May-2012 | Software Availability: | Oct-2012 | Publication: | Jan 9, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

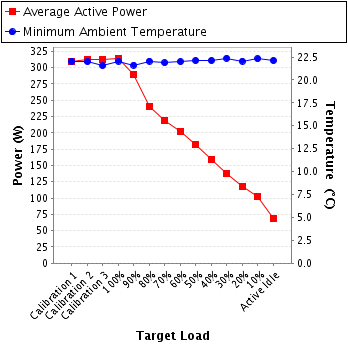

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 309 | 22.1 |
| Calibration 2 | 313 | 22.0 |
| Calibration 3 | 313 | 21.6 |
| 100% | 315 | 22.1 |
| 90% | 290 | 21.6 |
| 80% | 240 | 22.1 |
| 70% | 218 | 21.9 |
| 60% | 201 | 22.0 |
| 50% | 182 | 22.1 |
| 40% | 159 | 22.1 |
| 30% | 137 | 22.4 |
| 20% | 117 | 22.1 |
| 10% | 103 | 22.3 |
| Active Idle | 69.4 | 22.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 12-05-BAC-113-01 |
| Date of Calibration: | 10-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 1.55 | 2.0 | 0.927 | 309 | 0.4% |
| Calibration 2 | 215 | 300.0 | 1.57 | 2.0 | 0.928 | 313 | 0.4% |
| Calibration 3 | 216 | 300.0 | 1.56 | 2.0 | 0.928 | 313 | 0.4% |
| 100% | 215 | 300.0 | 1.57 | 2.0 | 0.928 | 315 | 0.4% |
| 90% | 216 | 300.0 | 1.46 | 2.0 | 0.921 | 290 | 0.4% |
| 80% | 216 | 300.0 | 1.23 | 2.0 | 0.906 | 240 | 0.5% |
| 70% | 216 | 300.0 | 1.13 | 2.0 | 0.897 | 218 | 0.5% |
| 60% | 216 | 300.0 | 1.05 | 2.0 | 0.889 | 201 | 0.6% |
| 50% | 216 | 300.0 | 0.958 | 2.0 | 0.878 | 182 | 0.6% |
| 40% | 216 | 300.0 | 0.851 | 2.0 | 0.862 | 159 | 0.6% |
| 30% | 216 | 300.0 | 0.752 | 1.0 | 0.845 | 137 | 0.5% |
| 20% | 216 | 300.0 | 0.660 | 1.0 | 0.823 | 117 | 0.5% |
| 10% | 216 | 300.0 | 0.594 | 1.0 | 0.800 | 103 | 0.6% |
| Active Idle | 216 | 300.0 | 0.448 | 1.0 | 0.715 | 69.4 | 0.8% |
