Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 1,487,103
ssj_ops@100% per JVM = 92,944
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,419,401
Calibration 2     1,497,875
Calibration 3     1,497,392
ssj_ops@calibrated=1,497,634
100% 99.3% 1,497,634 1,487,103
90% 90.0% 1,347,870 1,347,913
80% 80.1% 1,198,107 1,199,078
70% 70.2% 1,048,344 1,050,754
60% 59.9% 898,580 896,393
50% 50.5% 748,817 756,560
40% 39.9% 599,054 596,985
30% 30.1% 449,290 450,464
20% 20.0% 299,527 299,954
10% 10.0% 149,763 149,580
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-12.001 90,904
M520-12.002 91,588
M520-12.003 90,819
M520-12.004 91,981
M520-12.005 91,464
M520-12.006 90,334
M520-12.007 91,149
M520-12.008 91,553
M520-12.009 94,605
M520-12.010 95,917
M520-12.011 94,994
M520-12.012 94,577
M520-12.013 93,197
M520-12.014 94,669
M520-12.015 95,124
M520-12.016 94,229
ssj_ops@100% 1,487,103
ssj_ops@100% per JVM 92,944

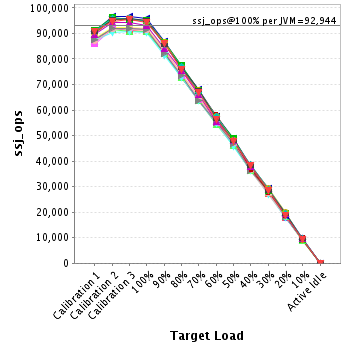

Graph of per-instance results
JVM 'M520-12.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,221
Calibration 2     91,764
Calibration 3     91,105
ssj_ops@calibrated=91,435
100% 99.4% 91,435 90,904
90% 90.4% 82,291 82,612
80% 79.6% 73,148 72,783
70% 69.8% 64,004 63,825
60% 60.4% 54,861 55,194
50% 50.3% 45,717 45,952
40% 40.3% 36,574 36,839
30% 29.8% 27,430 27,269
20% 19.6% 18,287 17,943
10% 9.8% 9,143 8,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,136
Calibration 2     91,534
Calibration 3     91,812
ssj_ops@calibrated=91,673
100% 99.9% 91,673 91,588
90% 89.9% 82,505 82,397
80% 79.4% 73,338 72,773
70% 70.3% 64,171 64,460
60% 60.5% 55,004 55,462
50% 50.6% 45,836 46,412
40% 39.7% 36,669 36,398
30% 30.1% 27,502 27,567
20% 19.7% 18,335 18,096
10% 10.0% 9,167 9,128
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,657
Calibration 2     91,543
Calibration 3     90,818
ssj_ops@calibrated=91,180
100% 99.6% 91,180 90,819
90% 90.0% 82,062 82,072
80% 80.0% 72,944 72,935
70% 69.8% 63,826 63,631
60% 59.6% 54,708 54,351
50% 50.5% 45,590 46,075
40% 39.9% 36,472 36,413
30% 30.3% 27,354 27,618
20% 20.0% 18,236 18,193
10% 9.7% 9,118 8,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,002
Calibration 2     92,456
Calibration 3     92,480
ssj_ops@calibrated=92,468
100% 99.5% 92,468 91,981
90% 90.4% 83,221 83,548
80% 79.8% 73,975 73,833
70% 70.5% 64,728 65,169
60% 60.3% 55,481 55,790
50% 50.8% 46,234 46,946
40% 39.4% 36,987 36,428
30% 30.6% 27,740 28,317
20% 20.0% 18,494 18,486
10% 10.1% 9,247 9,302
Active Idle   0 0

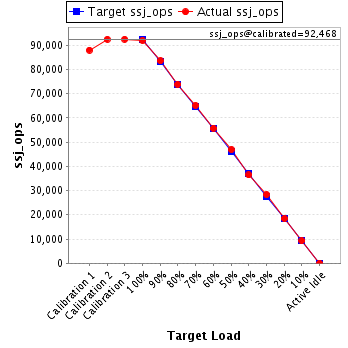

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,620
Calibration 2     92,123
Calibration 3     91,793
ssj_ops@calibrated=91,958
100% 99.5% 91,958 91,464
90% 90.1% 82,762 82,827
80% 79.5% 73,566 73,097
70% 69.3% 64,371 63,709
60% 59.5% 55,175 54,684
50% 50.7% 45,979 46,644
40% 40.2% 36,783 36,942
30% 30.3% 27,587 27,874
20% 20.1% 18,392 18,520
10% 10.0% 9,196 9,199
Active Idle   0 0

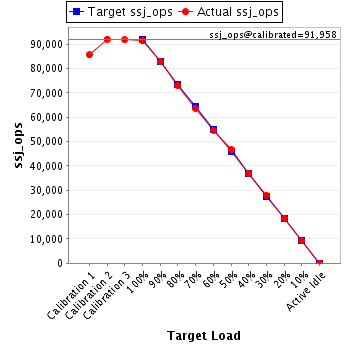

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,065
Calibration 2     90,465
Calibration 3     90,783
ssj_ops@calibrated=90,624
100% 99.7% 90,624 90,334
90% 89.7% 81,562 81,300
80% 80.2% 72,499 72,699
70% 70.2% 63,437 63,625
60% 60.6% 54,374 54,924
50% 50.5% 45,312 45,808
40% 40.1% 36,250 36,364
30% 29.8% 27,187 26,999
20% 19.9% 18,125 18,076
10% 10.3% 9,062 9,320
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,747
Calibration 2     91,507
Calibration 3     91,748
ssj_ops@calibrated=91,627
100% 99.5% 91,627 91,149
90% 91.1% 82,465 83,446
80% 81.3% 73,302 74,485
70% 70.8% 64,139 64,844
60% 59.9% 54,976 54,853
50% 51.2% 45,814 46,872
40% 39.6% 36,651 36,256
30% 29.4% 27,488 26,961
20% 20.1% 18,325 18,426
10% 10.3% 9,163 9,483
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,446
Calibration 2     92,103
Calibration 3     91,873
ssj_ops@calibrated=91,988
100% 99.5% 91,988 91,553
90% 89.5% 82,789 82,313
80% 80.1% 73,590 73,663
70% 69.2% 64,391 63,657
60% 59.8% 55,193 55,020
50% 50.9% 45,994 46,812
40% 39.6% 36,795 36,438
30% 30.7% 27,596 28,222
20% 19.9% 18,398 18,293
10% 10.2% 9,199 9,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,045
Calibration 2     95,454
Calibration 3     95,557
ssj_ops@calibrated=95,506
100% 99.1% 95,506 94,605
90% 90.1% 85,955 86,027
80% 80.0% 76,405 76,435
70% 69.9% 66,854 66,714
60% 60.7% 57,303 58,009
50% 50.2% 47,753 47,933
40% 38.9% 38,202 37,166
30% 29.6% 28,652 28,248
20% 20.0% 19,101 19,070
10% 10.3% 9,551 9,798
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,800
Calibration 2     96,544
Calibration 3     96,697
ssj_ops@calibrated=96,621
100% 99.3% 96,621 95,917
90% 90.0% 86,959 86,997
80% 79.6% 77,297 76,916
70% 70.6% 67,635 68,200
60% 59.4% 57,972 57,377
50% 50.6% 48,310 48,854
40% 39.8% 38,648 38,467
30% 30.1% 28,986 29,112
20% 19.5% 19,324 18,882
10% 9.7% 9,662 9,373
Active Idle   0 0

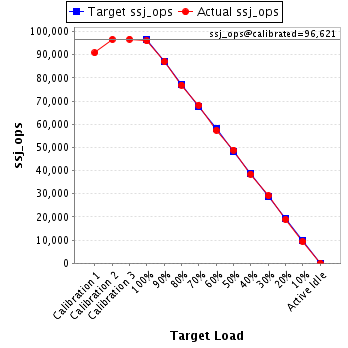

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,160
Calibration 2     96,356
Calibration 3     95,608
ssj_ops@calibrated=95,982
100% 99.0% 95,982 94,994
90% 90.1% 86,384 86,434
80% 80.8% 76,785 77,552
70% 70.4% 67,187 67,589
60% 59.6% 57,589 57,209
50% 50.9% 47,991 48,817
40% 39.6% 38,393 37,990
30% 29.7% 28,795 28,548
20% 20.1% 19,196 19,307
10% 9.7% 9,598 9,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,799
Calibration 2     95,606
Calibration 3     95,758
ssj_ops@calibrated=95,682
100% 98.8% 95,682 94,577
90% 90.2% 86,114 86,307
80% 80.2% 76,546 76,719
70% 70.6% 66,978 67,554
60% 59.9% 57,409 57,359
50% 50.4% 47,841 48,199
40% 39.9% 38,273 38,219
30% 30.5% 28,705 29,215
20% 20.6% 19,136 19,690
10% 9.8% 9,568 9,401
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,559
Calibration 2     94,327
Calibration 3     94,420
ssj_ops@calibrated=94,374
100% 98.8% 94,374 93,197
90% 89.1% 84,936 84,069
80% 79.9% 75,499 75,442
70% 70.0% 66,062 66,107
60% 58.9% 56,624 55,590
50% 50.8% 47,187 47,928
40% 40.4% 37,750 38,087
30% 30.6% 28,312 28,871
20% 20.6% 18,875 19,445
10% 10.2% 9,437 9,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,852
Calibration 2     95,855
Calibration 3     95,726
ssj_ops@calibrated=95,790
100% 98.8% 95,790 94,669
90% 89.5% 86,211 85,721
80% 80.5% 76,632 77,124
70% 69.9% 67,053 67,000
60% 60.0% 57,474 57,453
50% 49.9% 47,895 47,789
40% 40.3% 38,316 38,573
30% 30.1% 28,737 28,849
20% 20.2% 19,158 19,330
10% 10.0% 9,579 9,574
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,425
Calibration 2     95,524
Calibration 3     95,798
ssj_ops@calibrated=95,661
100% 99.4% 95,661 95,124
90% 89.5% 86,095 85,638
80% 80.1% 76,529 76,586
70% 71.1% 66,963 67,981
60% 59.2% 57,397 56,673
50% 49.9% 47,831 47,752
40% 40.0% 38,265 38,247
30% 29.8% 28,698 28,494
20% 20.2% 19,132 19,348
10% 9.9% 9,566 9,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-12.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,867
Calibration 2     94,714
Calibration 3     95,416
ssj_ops@calibrated=95,065
100% 99.1% 95,065 94,229
90% 90.7% 85,558 86,205
80% 80.0% 76,052 76,035
70% 70.1% 66,545 66,688
60% 59.4% 57,039 56,445
50% 50.2% 47,532 47,766
40% 40.1% 38,026 38,159
30% 29.8% 28,519 28,300
20% 19.8% 19,013 18,849
10% 9.9% 9,506 9,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
