Supermicro Computer, Inc. 1022G-NTF | SPECpower_ssj2008 = 4,040 overall ssj_ops/watt | ||||
Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
Tested By: | Advanced Micro Devices | Test Location: | Austin, TX USA | Test Date: | Oct 11, 2012 |
Hardware Availability: | Nov-2012 | Software Availability: | Apr-2012 | Publication: | Nov 7, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

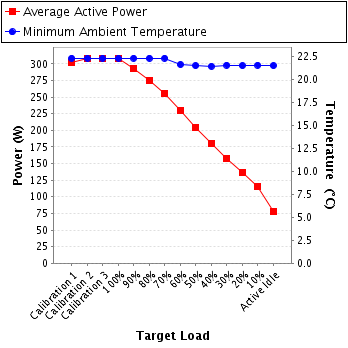

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 303 | 22.3 |
Calibration 2 | 308 | 22.3 |
Calibration 3 | 309 | 22.3 |
100% | 308 | 22.3 |
90% | 293 | 22.3 |
80% | 275 | 22.3 |
70% | 256 | 22.3 |
60% | 230 | 21.6 |
50% | 205 | 21.5 |
40% | 181 | 21.4 |
30% | 158 | 21.6 |
20% | 137 | 21.5 |
10% | 115 | 21.6 |
Active Idle | 77.9 | 21.5 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91M242010 |
Connectivity: | GPIB |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Yokogawa Corporation of America |
Calibration Label: | 051412-91M242010 |
Date of Calibration: | 14-May-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
Setup Description: | Unknown |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.30.2.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 208 | 300.0 | 1.50 | 2.0 | 0.970 | 303 | 0.4% |
Calibration 2 | 208 | 300.0 | 1.53 | 2.0 | 0.971 | 308 | 0.4% |
Calibration 3 | 209 | 300.0 | 1.52 | 2.0 | 0.971 | 309 | 0.4% |
100% | 209 | 300.0 | 1.52 | 2.0 | 0.971 | 308 | 0.4% |
90% | 210 | 300.0 | 1.44 | 2.0 | 0.970 | 293 | 0.4% |
80% | 210 | 300.0 | 1.35 | 2.0 | 0.969 | 275 | 0.4% |
70% | 210 | 300.0 | 1.26 | 2.0 | 0.966 | 256 | 0.4% |
60% | 210 | 300.0 | 1.15 | 2.0 | 0.957 | 230 | 0.5% |
50% | 210 | 300.0 | 1.03 | 2.0 | 0.952 | 205 | 0.5% |
40% | 210 | 300.0 | 0.911 | 2.0 | 0.946 | 181 | 0.6% |
30% | 210 | 300.0 | 0.799 | 2.0 | 0.941 | 158 | 0.6% |
20% | 210 | 300.0 | 0.698 | 2.0 | 0.932 | 137 | 0.7% |
10% | 210 | 300.0 | 0.597 | 1.0 | 0.919 | 115 | 0.5% |
Active Idle | 210 | 300.0 | 0.417 | 0.5 | 0.890 | 77.9 | 0.4% |
