Acer Incorporated Acer AR380 F2 ssj_ops@100% = 990,555
ssj_ops@100% per JVM = 165,092
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 22, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Jul 11, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     988,171
Calibration 2     995,415
Calibration 3     992,498
ssj_ops@calibrated=993,957
100% 99.7% 993,957 990,555
90% 90.0% 894,561 894,788
80% 80.4% 795,165 799,358
70% 70.1% 695,770 696,735
60% 60.0% 596,374 596,199
50% 49.8% 496,978 495,415
40% 40.0% 397,583 397,273
30% 29.9% 298,187 297,661
20% 19.9% 198,791 198,219
10% 10.0% 99,396 99,326
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR380 F2
Form Factor: 2U
CPU Name: Intel Xeon E5-2640
CPU Characteristics: 6 core, 2.5 GHz, 15MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; Slots 1A, 1B, 1C, 1D and 1E, 1F, 1G, 1H are populated
Power Supply Quantity and Rating (W): 1 x 920
Power Supply Details: Acer P/N SC.9201S.002
Disk Drive: 1 x 500GB 7.2K RPM SATA 2.5" HDD (P/N KH.50001.041)
Disk Controller: onboard SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 dual-port Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: No
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_26
JVM Command-line Options: -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [00000F, 0000F0, 000F00, 00F000, 0F0000, F00000]
JVM Instances: 6
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: D19
Management Firmware Version: 0.12
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-OVSNQNAO1QU.001 163,908
WIN-OVSNQNAO1QU.002 163,809
WIN-OVSNQNAO1QU.003 166,917
WIN-OVSNQNAO1QU.004 165,385
WIN-OVSNQNAO1QU.005 164,466
WIN-OVSNQNAO1QU.006 166,069
ssj_ops@100% 990,555
ssj_ops@100% per JVM 165,092

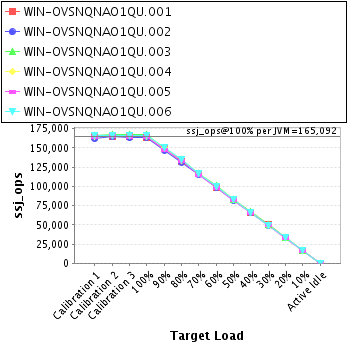

Graph of per-instance results
JVM 'WIN-OVSNQNAO1QU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,720
Calibration 2     165,489
Calibration 3     164,992
ssj_ops@calibrated=165,241
100% 99.2% 165,241 163,908
90% 90.4% 148,717 149,309
80% 80.0% 132,193 132,122
70% 70.3% 115,669 116,190
60% 59.6% 99,145 98,500
50% 49.8% 82,620 82,300
40% 39.9% 66,096 66,009
30% 30.2% 49,572 49,822
20% 19.9% 33,048 32,893
10% 10.0% 16,524 16,516
Active Idle   0 0

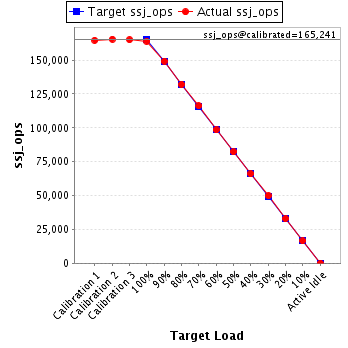

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OVSNQNAO1QU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     161,885
Calibration 2     164,816
Calibration 3     163,006
ssj_ops@calibrated=163,911
100% 99.9% 163,911 163,809
90% 89.7% 147,520 147,062
80% 80.3% 131,129 131,672
70% 70.1% 114,738 114,935
60% 60.1% 98,346 98,551
50% 49.6% 81,955 81,290
40% 39.9% 65,564 65,458
30% 29.8% 49,173 48,809
20% 20.2% 32,782 33,045
10% 10.1% 16,391 16,478
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OVSNQNAO1QU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,022
Calibration 2     167,825
Calibration 3     167,680
ssj_ops@calibrated=167,752
100% 99.5% 167,752 166,917
90% 89.3% 150,977 149,773
80% 80.4% 134,202 134,905
70% 69.8% 117,427 117,120
60% 60.3% 100,651 101,143
50% 49.6% 83,876 83,258
40% 40.1% 67,101 67,196
30% 30.1% 50,326 50,424
20% 19.6% 33,550 32,904
10% 10.0% 16,775 16,828
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OVSNQNAO1QU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,967
Calibration 2     165,726
Calibration 3     165,587
ssj_ops@calibrated=165,656
100% 99.8% 165,656 165,385
90% 91.2% 149,091 151,062
80% 80.4% 132,525 133,266
70% 70.4% 115,959 116,673
60% 60.3% 99,394 99,959
50% 50.3% 82,828 83,308
40% 40.1% 66,263 66,501
30% 30.0% 49,697 49,659
20% 20.1% 33,131 33,369
10% 9.8% 16,566 16,161
Active Idle   0 0

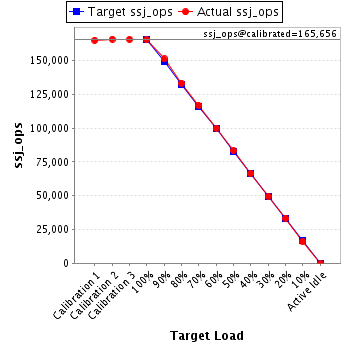

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OVSNQNAO1QU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,815
Calibration 2     164,990
Calibration 3     164,515
ssj_ops@calibrated=164,753
100% 99.8% 164,753 164,466
90% 89.4% 148,277 147,354
80% 80.8% 131,802 133,077
70% 69.8% 115,327 115,014
60% 59.7% 98,852 98,420
50% 49.8% 82,376 81,975
40% 39.8% 65,901 65,546
30% 30.0% 49,426 49,426
20% 19.8% 32,951 32,592
10% 9.9% 16,475 16,303
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-OVSNQNAO1QU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,763
Calibration 2     166,569
Calibration 3     166,718
ssj_ops@calibrated=166,644
100% 99.7% 166,644 166,069
90% 90.1% 149,979 150,227
80% 80.6% 133,315 134,315
70% 70.1% 116,651 116,803
60% 59.8% 99,986 99,625
50% 50.0% 83,322 83,284
40% 39.9% 66,658 66,563
30% 29.7% 49,993 49,521
20% 20.1% 33,329 33,416
10% 10.2% 16,664 17,039
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
