Fujitsu PRIMERGY BX920 S2 (Intel Xeon X5675) SPECpower_ssj2008 = 3,220 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Aug 8, 2011
Hardware Availability: Mar-2011 Software Availability: Jun-2011 Publication: Oct 6, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,161 20.8
Calibration 2 4,260 20.9
Calibration 3 4,286 21.2
100% 4,272 21.5
90% 3,878 21.7
80% 3,442 21.8
70% 3,073 21.7
60% 2,781 21.6
50% 2,546 21.4
40% 2,347 21.3
30% 2,160 21.2
20% 1,984 21.1
10% 1,758 21.0
Active Idle 1,032 20.9

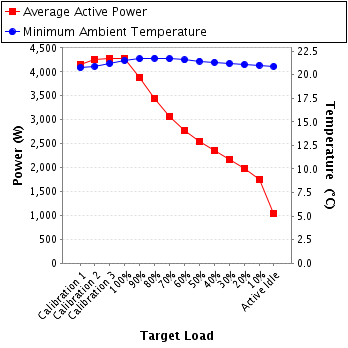

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 10119075
Date of Calibration: 16-Nov-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: Connected to PSU-1 in slot 1 and PSU-2 in slot 3
Power Analyzer pwr2
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 12370811
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 10119076
Date of Calibration: 16-Nov-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: Connected to PSU-3 in slot 5
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 24 due to a known inconsistency in processor reporting with the JVM used.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 232 300.0 9.58 10.0 0.994 2,207 0.3%
Calibration 2 232 300.0 8.69 10.0 0.993 2,008 0.3%
Calibration 3 229 300.0 8.88 10.0 0.994 2,021 0.3%
100% 229 300.0 8.84 10.0 0.994 2,013 0.3%
90% 230 300.0 8.02 10.0 0.993 1,832 0.3%
80% 230 300.0 7.12 10.0 0.992 1,625 0.3%
70% 230 300.0 6.40 10.0 0.986 1,450 0.3%
60% 230 300.0 5.89 10.0 0.984 1,331 0.4%
50% 230 300.0 5.45 10.0 0.983 1,230 0.4%
40% 230 300.0 5.04 5.0 0.981 1,135 0.3%
30% 230 300.0 4.74 5.0 0.979 1,069 0.3%
20% 230 300.0 4.31 5.0 0.976 967 0.3%
10% 230 300.0 3.81 5.0 0.972 852 0.3%
Active Idle 230 300.0 2.41 5.0 0.944 525 0.5%

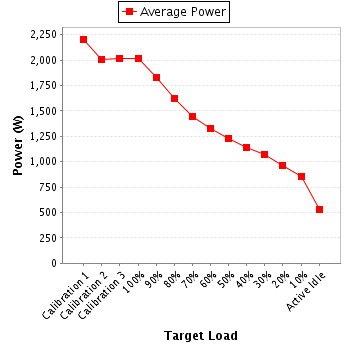

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 233 250.0 8.44 10.0 0.995 1,954 0.1%
Calibration 2 233 250.0 9.71 10.0 0.996 2,253 0.1%
Calibration 3 229 250.0 9.92 10.0 0.996 2,265 0.1%
100% 229 250.0 9.88 10.0 0.996 2,259 0.1%
90% 230 250.0 8.92 10.0 0.995 2,046 0.1%
80% 230 250.0 7.93 10.0 0.995 1,818 0.1%
70% 230 250.0 7.09 10.0 0.994 1,623 0.1%
60% 230 250.0 6.37 10.0 0.988 1,451 0.1%
50% 231 250.0 5.78 10.0 0.987 1,316 0.1%
40% 231 250.0 5.33 10.0 0.986 1,212 0.1%
30% 231 250.0 4.80 10.0 0.983 1,091 0.1%
20% 231 250.0 4.48 10.0 0.983 1,017 0.1%
10% 231 250.0 4.00 10.0 0.980 906 0.1%
Active Idle 231 250.0 2.29 10.0 0.959 508 0.3%

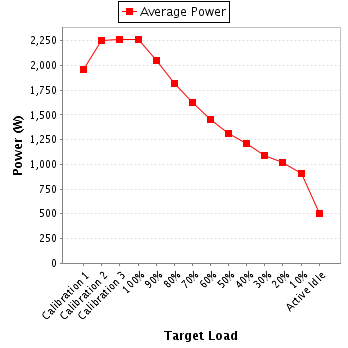

Power details for pwr2
