Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 128,055
ssj_ops@100% per JVM = 64,028
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,922
Calibration 2     128,168
Calibration 3     128,709
ssj_ops@calibrated=128,438
100% 99.7% 128,438 128,055
90% 90.6% 115,595 116,371
80% 79.3% 102,751 101,816
70% 69.6% 89,907 89,426
60% 59.9% 77,063 76,920
50% 50.3% 64,219 64,660
40% 40.0% 51,375 51,387
30% 29.8% 38,532 38,213
20% 19.9% 25,688 25,512
10% 9.8% 12,844 12,609
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI9.001 64,521
HITACHI9.002 63,534
ssj_ops@100% 128,055
ssj_ops@100% per JVM 64,028

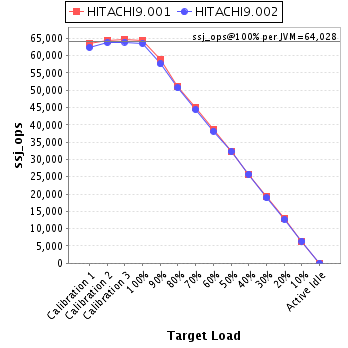

Graph of per-instance results
JVM 'HITACHI9.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,542
Calibration 2     64,400
Calibration 3     64,765
ssj_ops@calibrated=64,582
100% 99.9% 64,582 64,521
90% 91.0% 58,124 58,756
80% 79.1% 51,666 51,076
70% 69.7% 45,208 45,013
60% 60.0% 38,749 38,758
50% 50.1% 32,291 32,361
40% 39.7% 25,833 25,651
30% 29.9% 19,375 19,332
20% 19.9% 12,916 12,820
10% 9.7% 6,458 6,251
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

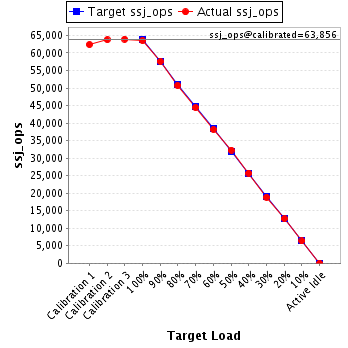

JVM 'HITACHI9.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,380
Calibration 2     63,768
Calibration 3     63,944
ssj_ops@calibrated=63,856
100% 99.5% 63,856 63,534
90% 90.2% 57,470 57,615
80% 79.5% 51,085 50,741
70% 69.6% 44,699 44,413
60% 59.8% 38,314 38,162
50% 50.6% 31,928 32,299
40% 40.3% 25,542 25,736
30% 29.6% 19,157 18,881
20% 19.9% 12,771 12,692
10% 10.0% 6,386 6,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
