Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,810
ssj_ops@100% per JVM = 63,905
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,044
Calibration 2     127,122
Calibration 3     127,583
ssj_ops@calibrated=127,352
100% 100.4% 127,352 127,810
90% 90.4% 114,617 115,114
80% 80.9% 101,882 103,090
70% 69.8% 89,147 88,940
60% 59.8% 76,411 76,158
50% 50.4% 63,676 64,218
40% 40.0% 50,941 50,965
30% 29.6% 38,206 37,757
20% 20.5% 25,470 26,055
10% 10.2% 12,735 12,996
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI25.001 63,558
HITACHI25.002 64,252
ssj_ops@100% 127,810
ssj_ops@100% per JVM 63,905

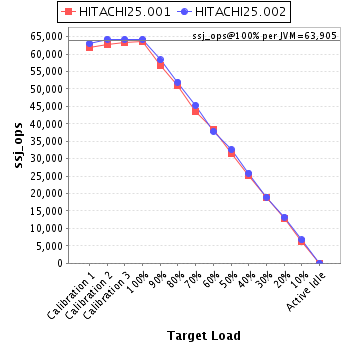

Graph of per-instance results
JVM 'HITACHI25.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,007
Calibration 2     62,836
Calibration 3     63,316
ssj_ops@calibrated=63,076
100% 100.8% 63,076 63,558
90% 90.0% 56,768 56,779
80% 81.0% 50,461 51,111
70% 69.2% 44,153 43,639
60% 60.8% 37,846 38,339
50% 50.0% 31,538 31,550
40% 39.8% 25,230 25,124
30% 29.7% 18,923 18,762
20% 20.3% 12,615 12,815
10% 10.0% 6,308 6,301
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

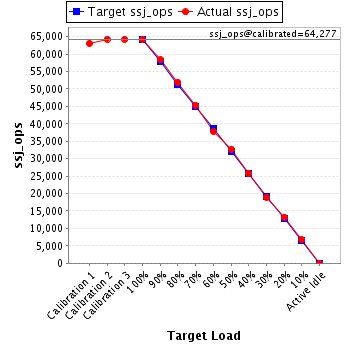

JVM 'HITACHI25.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,037
Calibration 2     64,286
Calibration 3     64,267
ssj_ops@calibrated=64,277
100% 100.0% 64,277 64,252
90% 90.8% 57,849 58,335
80% 80.9% 51,421 51,979
70% 70.5% 44,994 45,301
60% 58.8% 38,566 37,819
50% 50.8% 32,138 32,668
40% 40.2% 25,711 25,841
30% 29.6% 19,283 18,995
20% 20.6% 12,855 13,240
10% 10.4% 6,428 6,694
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
