Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,274
ssj_ops@100% per JVM = 63,637
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,512
Calibration 2     127,700
Calibration 3     127,344
ssj_ops@calibrated=127,522
100% 99.8% 127,522 127,274
90% 89.4% 114,770 114,044
80% 80.2% 102,018 102,335
70% 68.9% 89,265 87,903
60% 60.2% 76,513 76,772
50% 49.9% 63,761 63,639
40% 40.1% 51,009 51,120
30% 29.7% 38,257 37,869
20% 20.0% 25,504 25,552
10% 10.1% 12,752 12,902
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI19.001 63,308
HITACHI19.002 63,966
ssj_ops@100% 127,274
ssj_ops@100% per JVM 63,637
Graph of per-instance results
JVM 'HITACHI19.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,692
Calibration 2     63,509
Calibration 3     63,374
ssj_ops@calibrated=63,442
100% 99.8% 63,442 63,308
90% 89.2% 57,097 56,586
80% 81.3% 50,753 51,581
70% 69.2% 44,409 43,918
60% 60.8% 38,065 38,588
50% 50.1% 31,721 31,790
40% 40.2% 25,377 25,490
30% 29.4% 19,032 18,649
20% 20.5% 12,688 12,986
10% 10.2% 6,344 6,479
Active Idle   0 0

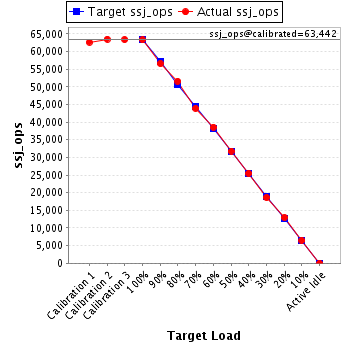

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI19.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,820
Calibration 2     64,190
Calibration 3     63,970
ssj_ops@calibrated=64,080
100% 99.8% 64,080 63,966
90% 89.7% 57,672 57,459
80% 79.2% 51,264 50,753
70% 68.6% 44,856 43,985
60% 59.6% 38,448 38,185
50% 49.7% 32,040 31,848
40% 40.0% 25,632 25,630
30% 30.0% 19,224 19,220
20% 19.6% 12,816 12,567
10% 10.0% 6,408 6,423
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
