Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 126,736
ssj_ops@100% per JVM = 63,368
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,653
Calibration 2     127,470
Calibration 3     126,979
ssj_ops@calibrated=127,224
100% 99.6% 127,224 126,736
90% 90.4% 114,502 114,995
80% 79.2% 101,779 100,716
70% 70.0% 89,057 89,063
60% 59.8% 76,335 76,128
50% 50.5% 63,612 64,232
40% 40.0% 50,890 50,946
30% 30.1% 38,167 38,323
20% 19.6% 25,445 24,995
10% 10.0% 12,722 12,770
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI16.001 63,629
HITACHI16.002 63,107
ssj_ops@100% 126,736
ssj_ops@100% per JVM 63,368

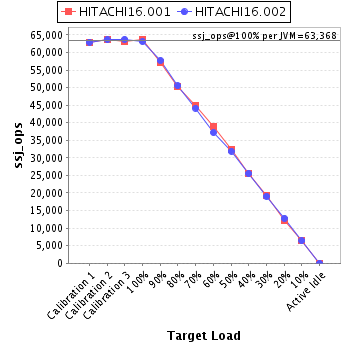

Graph of per-instance results
JVM 'HITACHI16.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,720
Calibration 2     63,782
Calibration 3     63,257
ssj_ops@calibrated=63,520
100% 100.2% 63,520 63,629
90% 90.2% 57,168 57,273
80% 79.1% 50,816 50,213
70% 70.7% 44,464 44,916
60% 61.2% 38,112 38,904
50% 50.9% 31,760 32,333
40% 40.0% 25,408 25,433
30% 30.3% 19,056 19,235
20% 19.2% 12,704 12,175
10% 10.0% 6,352 6,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI16.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,932
Calibration 2     63,688
Calibration 3     63,721
ssj_ops@calibrated=63,705
100% 99.1% 63,705 63,107
90% 90.6% 57,334 57,722
80% 79.3% 50,964 50,503
70% 69.3% 44,593 44,147
60% 58.4% 38,223 37,224
50% 50.1% 31,852 31,899
40% 40.0% 25,482 25,513
30% 30.0% 19,111 19,088
20% 20.1% 12,741 12,820
10% 10.0% 6,370 6,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
