Acer Incorporated Gateway GW2000h-GW170h F1 ssj_ops@100% = 930,425
ssj_ops@100% per JVM = 155,071
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Mar 7, 2011
Hardware Availability: Feb-2011 Software Availability: Dec-2009 Publication: Mar 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     931,348
Calibration 2     935,328
Calibration 3     929,936
ssj_ops@calibrated=932,632
100% 99.8% 932,632 930,425
90% 90.4% 839,369 843,317
80% 80.1% 746,106 747,416
70% 69.6% 652,842 649,514
60% 59.9% 559,579 558,630
50% 49.9% 466,316 465,626
40% 40.2% 373,053 375,267
30% 30.0% 279,790 279,592
20% 20.0% 186,526 186,345
10% 10.0% 93,263 93,715
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW170h F1
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: Six-Core, 3.07 GHz, 12 MB L3 cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB SATA 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1550m -Xms1950m -Xmx1950m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: P08
Management Firmware Version: 1.20
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-8T20LUSKNOV.001 156,184
WIN-8T20LUSKNOV.002 155,322
WIN-8T20LUSKNOV.003 153,967
WIN-8T20LUSKNOV.004 156,223
WIN-8T20LUSKNOV.005 155,352
WIN-8T20LUSKNOV.006 153,377
ssj_ops@100% 930,425
ssj_ops@100% per JVM 155,071
Graph of per-instance results
JVM 'WIN-8T20LUSKNOV.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,343
Calibration 2     157,214
Calibration 3     157,577
ssj_ops@calibrated=157,396
100% 99.2% 157,396 156,184
90% 91.3% 141,656 143,662
80% 80.4% 125,917 126,505
70% 69.8% 110,177 109,828
60% 59.8% 94,437 94,143
50% 49.5% 78,698 77,889
40% 40.7% 62,958 63,986
30% 30.0% 47,219 47,289
20% 20.2% 31,479 31,832
10% 10.3% 15,740 16,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8T20LUSKNOV.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,619
Calibration 2     155,973
Calibration 3     156,641
ssj_ops@calibrated=156,307
100% 99.4% 156,307 155,322
90% 90.1% 140,676 140,838
80% 79.9% 125,046 124,829
70% 70.1% 109,415 109,615
60% 59.6% 93,784 93,212
50% 49.8% 78,154 77,851
40% 40.8% 62,523 63,793
30% 30.1% 46,892 47,125
20% 19.6% 31,261 30,678
10% 10.1% 15,631 15,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8T20LUSKNOV.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,141
Calibration 2     154,393
Calibration 3     154,752
ssj_ops@calibrated=154,572
100% 99.6% 154,572 153,967
90% 90.8% 139,115 140,375
80% 79.9% 123,658 123,518
70% 69.7% 108,201 107,756
60% 60.2% 92,743 93,028
50% 50.2% 77,286 77,585
40% 40.0% 61,829 61,862
30% 29.8% 46,372 46,061
20% 19.8% 30,914 30,541
10% 9.9% 15,457 15,284
Active Idle   0 0

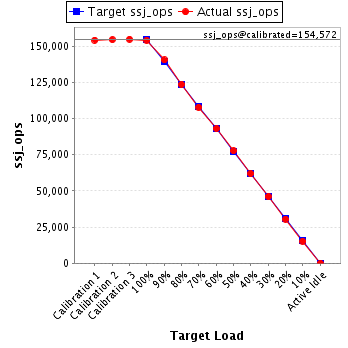

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8T20LUSKNOV.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,737
Calibration 2     156,837
Calibration 3     154,793
ssj_ops@calibrated=155,815
100% 100.3% 155,815 156,223
90% 89.5% 140,234 139,415
80% 79.9% 124,652 124,449
70% 69.4% 109,071 108,195
60% 59.9% 93,489 93,401
50% 49.5% 77,908 77,051
40% 40.3% 62,326 62,842
30% 30.0% 46,745 46,737
20% 20.1% 31,163 31,282
10% 10.2% 15,582 15,873
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8T20LUSKNOV.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,331
Calibration 2     155,970
Calibration 3     153,874
ssj_ops@calibrated=154,922
100% 100.3% 154,922 155,352
90% 90.2% 139,430 139,743
80% 80.3% 123,938 124,435
70% 69.0% 108,445 106,851
60% 60.2% 92,953 93,205
50% 50.4% 77,461 78,069
40% 39.6% 61,969 61,327
30% 29.8% 46,477 46,128
20% 19.7% 30,984 30,572
10% 9.9% 15,492 15,389
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8T20LUSKNOV.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,178
Calibration 2     154,941
Calibration 3     152,299
ssj_ops@calibrated=153,620
100% 99.8% 153,620 153,377
90% 90.7% 138,258 139,285
80% 80.5% 122,896 123,681
70% 69.8% 107,534 107,270
60% 59.7% 92,172 91,641
50% 50.2% 76,810 77,182
40% 40.0% 61,448 61,456
30% 30.1% 46,086 46,252
20% 20.5% 30,724 31,439
10% 9.8% 15,362 15,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
