Acer Incorporated Gateway GW2000h-GW170h F1 | ssj_ops@100% = 882,268 ssj_ops@100% per JVM = 147,045 |
||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Multi Node |
Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Mar 4, 2011 |
Hardware Availability: | Jan-2010 | Software Availability: | Dec-2009 | Publication: | Mar 23, 2011 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 884,758 | ||
Calibration 2 | 884,852 | ||
Calibration 3 | 886,903 | ||
ssj_ops@calibrated=885,878 | |||
100% | 99.6% | 885,878 | 882,268 |
90% | 90.3% | 797,290 | 800,313 |
80% | 80.2% | 708,702 | 710,778 |
70% | 69.9% | 620,114 | 618,907 |
60% | 60.0% | 531,527 | 531,736 |
50% | 50.0% | 442,939 | 442,788 |
40% | 40.2% | 354,351 | 356,103 |
30% | 30.1% | 265,763 | 267,075 |
20% | 20.0% | 177,176 | 177,041 |
10% | 9.9% | 88,588 | 88,125 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 4 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Acer Incorporated |
Model: | Gateway GW2000h-GW170h F1 |
Form Factor: | 2U |
CPU Name: | Intel Xeon X5675 |
CPU Characteristics: | Six-Core, 3.07 GHz, 12 MB L3 cache |
CPU Frequency (MHz): | 3067 |
CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
Hardware Threads: | 24 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 12 |
# and size of DIMM: | 6 x 2048 MB |
Memory Details: | 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | 1 x 500GB SATA 3.5" HDD, Acer part #KH.500W8.019 |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82576 Gigabit Ethernet |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | USB |
Mouse: | USB |
Monitor: | Direct |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Power save enabled in OS |
Operating System (OS): | Windows Server 2008, Enterprise Edition |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000] |
JVM Instances: | 6 |
JVM Initial Heap (MB): | 1500 |
JVM Maximum Heap (MB): | 1500 |
JVM Address Bits: | 64 |
Boot Firmware Version: | <TBD> |
Management Firmware Version: | 1.20 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | None |
JVM Instance | ssj_ops@100% |
---|---|
WIN-ULK8O9BFFGJ.001 | 151,353 |
WIN-ULK8O9BFFGJ.002 | 149,088 |
WIN-ULK8O9BFFGJ.003 | 148,231 |
WIN-ULK8O9BFFGJ.004 | 146,912 |
WIN-ULK8O9BFFGJ.005 | 141,963 |
WIN-ULK8O9BFFGJ.006 | 144,721 |
ssj_ops@100% | 882,268 |
ssj_ops@100% per JVM | 147,045 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 150,794 | ||
Calibration 2 | 151,749 | ||
Calibration 3 | 151,738 | ||
ssj_ops@calibrated=151,743 | |||
100% | 99.7% | 151,743 | 151,353 |
90% | 91.0% | 136,569 | 138,043 |
80% | 80.3% | 121,395 | 121,912 |
70% | 69.9% | 106,220 | 106,068 |
60% | 59.6% | 91,046 | 90,386 |
50% | 49.4% | 75,872 | 74,978 |
40% | 40.6% | 60,697 | 61,658 |
30% | 30.5% | 45,523 | 46,257 |
20% | 20.0% | 30,349 | 30,314 |
10% | 10.1% | 15,174 | 15,278 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 148,372 | ||
Calibration 2 | 148,259 | ||
Calibration 3 | 149,162 | ||
ssj_ops@calibrated=148,710 | |||
100% | 100.3% | 148,710 | 149,088 |
90% | 90.1% | 133,839 | 134,002 |
80% | 80.1% | 118,968 | 119,178 |
70% | 69.9% | 104,097 | 103,928 |
60% | 59.6% | 89,226 | 88,580 |
50% | 50.8% | 74,355 | 75,567 |
40% | 39.5% | 59,484 | 58,674 |
30% | 30.0% | 44,613 | 44,569 |
20% | 20.1% | 29,742 | 29,888 |
10% | 9.9% | 14,871 | 14,749 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 148,647 | ||
Calibration 2 | 148,873 | ||
Calibration 3 | 149,077 | ||
ssj_ops@calibrated=148,975 | |||
100% | 99.5% | 148,975 | 148,231 |
90% | 90.2% | 134,078 | 134,326 |
80% | 79.8% | 119,180 | 118,901 |
70% | 70.1% | 104,283 | 104,362 |
60% | 59.9% | 89,385 | 89,282 |
50% | 49.9% | 74,488 | 74,339 |
40% | 40.4% | 59,590 | 60,153 |
30% | 30.4% | 44,693 | 45,304 |
20% | 19.8% | 29,795 | 29,464 |
10% | 9.9% | 14,898 | 14,699 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 148,382 | ||
Calibration 2 | 148,177 | ||
Calibration 3 | 148,357 | ||
ssj_ops@calibrated=148,267 | |||
100% | 99.1% | 148,267 | 146,912 |
90% | 90.4% | 133,440 | 134,006 |
80% | 80.3% | 118,614 | 119,015 |
70% | 69.5% | 103,787 | 102,975 |
60% | 60.2% | 88,960 | 89,200 |
50% | 49.5% | 74,134 | 73,404 |
40% | 40.3% | 59,307 | 59,737 |
30% | 29.6% | 44,480 | 43,915 |
20% | 19.8% | 29,653 | 29,408 |
10% | 9.9% | 14,827 | 14,724 |
Active Idle | 0 | 0 |

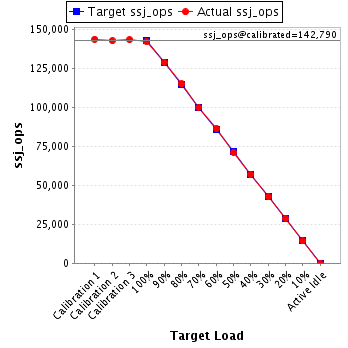

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 143,497 | ||
Calibration 2 | 142,475 | ||
Calibration 3 | 143,104 | ||
ssj_ops@calibrated=142,790 | |||
100% | 99.4% | 142,790 | 141,963 |
90% | 90.2% | 128,511 | 128,777 |
80% | 80.4% | 114,232 | 114,815 |
70% | 69.9% | 99,953 | 99,774 |
60% | 60.5% | 85,674 | 86,325 |
50% | 49.8% | 71,395 | 71,045 |
40% | 39.8% | 57,116 | 56,900 |
30% | 29.8% | 42,837 | 42,564 |
20% | 20.1% | 28,558 | 28,664 |
10% | 10.0% | 14,279 | 14,291 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 145,066 | ||
Calibration 2 | 145,318 | ||
Calibration 3 | 145,465 | ||
ssj_ops@calibrated=145,392 | |||
100% | 99.5% | 145,392 | 144,721 |
90% | 90.2% | 130,853 | 131,160 |
80% | 80.4% | 116,313 | 116,957 |
70% | 70.0% | 101,774 | 101,800 |
60% | 60.5% | 87,235 | 87,963 |
50% | 50.5% | 72,696 | 73,456 |
40% | 40.6% | 58,157 | 58,981 |
30% | 30.6% | 43,618 | 44,466 |
20% | 20.2% | 29,078 | 29,303 |
10% | 9.9% | 14,539 | 14,383 |
Active Idle | 0 | 0 |
