SPECpower_ssj2008
Host 'WIN-TDM3C83C35P' Performance Report
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Acer Incorporated Gateway GW2000h-GW170h F1 | ssj_ops@100% = 885,462 ssj_ops@100% per JVM = 147,577 |
||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Multi Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Mar 3, 2011 |
| Hardware Availability: | Jan-2010 | Software Availability: | Dec-2009 | Publication: | Mar 23, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 887,836 | ||
| Calibration 2 | 890,108 | ||
| Calibration 3 | 887,041 | ||
| ssj_ops@calibrated=888,575 | |||
| 100% | 99.6% | 888,575 | 885,462 |
| 90% | 90.1% | 799,717 | 800,256 |
| 80% | 80.0% | 710,860 | 711,162 |
| 70% | 70.1% | 622,002 | 623,133 |
| 60% | 60.0% | 533,145 | 533,178 |
| 50% | 50.0% | 444,287 | 444,426 |
| 40% | 40.2% | 355,430 | 356,946 |
| 30% | 29.9% | 266,572 | 266,052 |
| 20% | 20.1% | 177,715 | 178,425 |
| 10% | 10.1% | 88,857 | 90,043 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 4 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Gateway GW2000h-GW170h F1 |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon X5675 |
| CPU Characteristics: | Six-Core, 3.07 GHz, 12 MB L3 cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12 |
| # and size of DIMM: | 6 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 500GB SATA 3.5" HDD, Acer part #KH.500W8.019 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82576 Gigabit Ethernet |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | USB |
| Mouse: | USB |
| Monitor: | Direct |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power save enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | <TBD> |
| Management Firmware Version: | 1.20 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-TDM3C83C35P.001 | 149,336 |
| WIN-TDM3C83C35P.002 | 148,179 |
| WIN-TDM3C83C35P.003 | 143,090 |
| WIN-TDM3C83C35P.004 | 149,275 |
| WIN-TDM3C83C35P.005 | 146,177 |
| WIN-TDM3C83C35P.006 | 149,404 |
| ssj_ops@100% | 885,462 |
| ssj_ops@100% per JVM | 147,577 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 150,145 | ||
| Calibration 2 | 150,762 | ||
| Calibration 3 | 149,325 | ||
| ssj_ops@calibrated=150,043 | |||
| 100% | 99.5% | 150,043 | 149,336 |
| 90% | 90.2% | 135,039 | 135,407 |
| 80% | 79.4% | 120,035 | 119,105 |
| 70% | 69.9% | 105,030 | 104,872 |
| 60% | 59.9% | 90,026 | 89,879 |
| 50% | 50.1% | 75,022 | 75,166 |
| 40% | 40.1% | 60,017 | 60,223 |
| 30% | 30.0% | 45,013 | 44,947 |
| 20% | 20.0% | 30,009 | 30,021 |
| 10% | 10.0% | 15,004 | 15,021 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 148,488 | ||
| Calibration 2 | 148,514 | ||
| Calibration 3 | 148,944 | ||
| ssj_ops@calibrated=148,729 | |||
| 100% | 99.6% | 148,729 | 148,179 |
| 90% | 90.3% | 133,856 | 134,351 |
| 80% | 79.9% | 118,983 | 118,820 |
| 70% | 69.7% | 104,110 | 103,682 |
| 60% | 60.4% | 89,237 | 89,879 |
| 50% | 50.1% | 74,364 | 74,491 |
| 40% | 40.5% | 59,492 | 60,301 |
| 30% | 29.8% | 44,619 | 44,335 |
| 20% | 20.0% | 29,746 | 29,817 |
| 10% | 10.0% | 14,873 | 14,821 |
| Active Idle | 0 | 0 | |

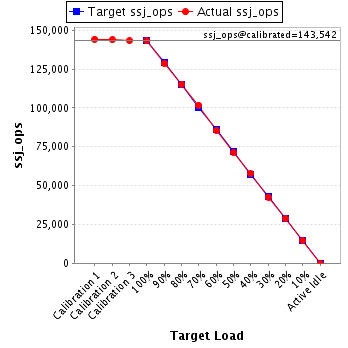

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 144,258 | ||
| Calibration 2 | 143,858 | ||
| Calibration 3 | 143,226 | ||
| ssj_ops@calibrated=143,542 | |||
| 100% | 99.7% | 143,542 | 143,090 |
| 90% | 89.6% | 129,188 | 128,572 |
| 80% | 80.2% | 114,834 | 115,181 |
| 70% | 70.9% | 100,479 | 101,744 |
| 60% | 59.6% | 86,125 | 85,562 |
| 50% | 49.9% | 71,771 | 71,561 |
| 40% | 40.2% | 57,417 | 57,648 |
| 30% | 29.7% | 43,063 | 42,623 |
| 20% | 19.9% | 28,708 | 28,632 |
| 10% | 10.2% | 14,354 | 14,587 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 149,791 | ||
| Calibration 2 | 150,790 | ||
| Calibration 3 | 149,771 | ||
| ssj_ops@calibrated=150,280 | |||
| 100% | 99.3% | 150,280 | 149,275 |
| 90% | 89.9% | 135,252 | 135,046 |
| 80% | 80.4% | 120,224 | 120,860 |
| 70% | 69.5% | 105,196 | 104,490 |
| 60% | 59.8% | 90,168 | 89,807 |
| 50% | 49.8% | 75,140 | 74,835 |
| 40% | 40.3% | 60,112 | 60,507 |
| 30% | 30.6% | 45,084 | 45,997 |
| 20% | 20.2% | 30,056 | 30,369 |
| 10% | 10.4% | 15,028 | 15,617 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 145,381 | ||
| Calibration 2 | 146,483 | ||
| Calibration 3 | 145,900 | ||
| ssj_ops@calibrated=146,192 | |||
| 100% | 100.0% | 146,192 | 146,177 |
| 90% | 90.1% | 131,572 | 131,669 |
| 80% | 79.9% | 116,953 | 116,792 |
| 70% | 70.0% | 102,334 | 102,313 |
| 60% | 60.6% | 87,715 | 88,637 |
| 50% | 49.8% | 73,096 | 72,848 |
| 40% | 39.6% | 58,477 | 57,933 |
| 30% | 29.5% | 43,857 | 43,190 |
| 20% | 19.9% | 29,238 | 29,035 |
| 10% | 10.3% | 14,619 | 15,100 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 149,773 | ||
| Calibration 2 | 149,701 | ||
| Calibration 3 | 149,875 | ||
| ssj_ops@calibrated=149,788 | |||
| 100% | 99.7% | 149,788 | 149,404 |
| 90% | 90.3% | 134,810 | 135,211 |
| 80% | 80.4% | 119,831 | 120,405 |
| 70% | 70.8% | 104,852 | 106,032 |
| 60% | 59.7% | 89,873 | 89,415 |
| 50% | 50.4% | 74,894 | 75,525 |
| 40% | 40.3% | 59,915 | 60,334 |
| 30% | 30.0% | 44,937 | 44,961 |
| 20% | 20.4% | 29,958 | 30,552 |
| 10% | 9.9% | 14,979 | 14,898 |
| Active Idle | 0 | 0 | |
