Acer Incorporated Gateway GW2000h-GW170h F1 ssj_ops@100% = 905,102
ssj_ops@100% per JVM = 150,850
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Mar 4, 2011
Hardware Availability: Jan-2010 Software Availability: Dec-2009 Publication: Mar 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     909,602
Calibration 2     908,695
Calibration 3     908,073
ssj_ops@calibrated=908,384
100% 99.6% 908,384 905,102
90% 89.8% 817,546 815,412
80% 80.2% 726,707 728,185
70% 70.2% 635,869 637,611
60% 60.0% 545,031 545,153
50% 49.8% 454,192 452,363
40% 40.0% 363,354 363,537
30% 30.0% 272,515 272,450
20% 20.1% 181,677 182,325
10% 10.1% 90,838 91,426
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW170h F1
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: Six-Core, 3.07 GHz, 12 MB L3 cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB SATA 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: <TBD>
Management Firmware Version: 1.20
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-8T20LUSKNOV.001 155,576
WIN-8T20LUSKNOV.002 155,649
WIN-8T20LUSKNOV.003 151,804
WIN-8T20LUSKNOV.004 156,962
WIN-8T20LUSKNOV.005 130,223
WIN-8T20LUSKNOV.006 154,888
ssj_ops@100% 905,102
ssj_ops@100% per JVM 150,850
Graph of per-instance results
JVM 'WIN-8T20LUSKNOV.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,887
Calibration 2     156,300
Calibration 3     155,777
ssj_ops@calibrated=156,038
100% 99.7% 156,038 155,576
90% 89.3% 140,434 139,306
80% 80.4% 124,831 125,469
70% 70.6% 109,227 110,178
60% 60.3% 93,623 94,121
50% 49.2% 78,019 76,806
40% 39.8% 62,415 62,120
30% 30.3% 46,811 47,279
20% 20.1% 31,208 31,407
10% 10.2% 15,604 15,870
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

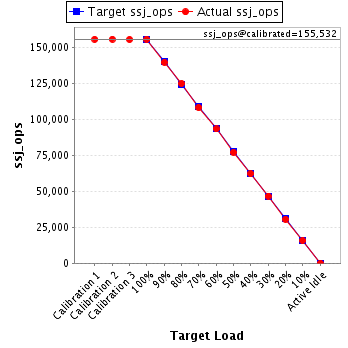

JVM 'WIN-8T20LUSKNOV.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,578
Calibration 2     155,668
Calibration 3     155,397
ssj_ops@calibrated=155,532
100% 100.1% 155,532 155,649
90% 89.8% 139,979 139,620
80% 80.3% 124,426 124,892
70% 69.5% 108,873 108,099
60% 60.0% 93,319 93,291
50% 49.6% 77,766 77,129
40% 40.0% 62,213 62,191
30% 30.0% 46,660 46,686
20% 19.7% 31,106 30,614
10% 10.2% 15,553 15,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8T20LUSKNOV.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,189
Calibration 2     152,693
Calibration 3     153,185
ssj_ops@calibrated=152,939
100% 99.3% 152,939 151,804
90% 90.6% 137,645 138,548
80% 79.9% 122,351 122,187
70% 69.9% 107,057 106,908
60% 60.3% 91,763 92,274
50% 50.2% 76,469 76,785
40% 39.8% 61,175 60,832
30% 29.9% 45,882 45,677
20% 20.0% 30,588 30,658
10% 10.0% 15,294 15,248
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8T20LUSKNOV.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,112
Calibration 2     157,146
Calibration 3     157,044
ssj_ops@calibrated=157,095
100% 99.9% 157,095 156,962
90% 89.4% 141,385 140,496
80% 80.6% 125,676 126,616
70% 70.3% 109,966 110,490
60% 60.2% 94,257 94,541
50% 50.3% 78,547 79,009
40% 40.5% 62,838 63,598
30% 30.0% 47,128 47,193
20% 20.4% 31,419 32,075
10% 10.1% 15,709 15,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8T20LUSKNOV.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,062
Calibration 2     131,621
Calibration 3     131,511
ssj_ops@calibrated=131,566
100% 99.0% 131,566 130,223
90% 89.6% 118,409 117,897
80% 80.1% 105,253 105,387
70% 70.2% 92,096 92,357
60% 59.6% 78,940 78,421
50% 49.7% 65,783 65,401
40% 39.9% 52,626 52,539
30% 29.9% 39,470 39,302
20% 20.2% 26,313 26,595
10% 10.0% 13,157 13,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8T20LUSKNOV.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,775
Calibration 2     155,269
Calibration 3     155,160
ssj_ops@calibrated=155,215
100% 99.8% 155,215 154,888
90% 89.9% 139,693 139,546
80% 79.7% 124,172 123,633
70% 70.6% 108,650 109,579
60% 59.6% 93,129 92,506
50% 49.8% 77,607 77,234
40% 40.1% 62,086 62,256
30% 29.8% 46,564 46,314
20% 20.0% 31,043 30,976
10% 9.9% 15,521 15,424
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
