Hitachi, Ltd. HA8000/RS220 (LK1) SPECpower_ssj2008 = 2,126 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 3, 2011
Hardware Availability: Dec-2010 Software Availability: Jun-2010 Publication: Mar 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 297 23.2
Calibration 2 298 23.2
Calibration 3 298 23.2
100% 297 23.2
90% 278 23.2
80% 261 23.2
70% 241 23.2
60% 223 23.2
50% 206 23.2
40% 193 23.2
30% 181 23.1
20% 170 23.1
10% 158 23.1
Active Idle 132 23.2

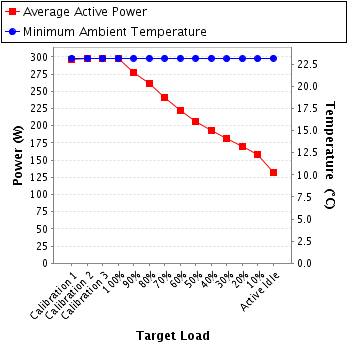

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: B102481
Date of Calibration: 07-Jul-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 200 300.0 1.54 2.0 0.965 297 0.4%
Calibration 2 200 300.0 1.55 2.0 0.965 298 0.4%
Calibration 3 200 300.0 1.55 2.0 0.965 298 0.4%
100% 200 300.0 1.54 2.0 0.965 297 0.4%
90% 200 300.0 1.45 2.0 0.963 278 0.4%
80% 200 300.0 1.36 2.0 0.960 261 0.4%
70% 200 300.0 1.26 2.0 0.958 241 0.4%
60% 200 300.0 1.17 2.0 0.956 223 0.4%
50% 200 300.0 1.08 2.0 0.953 206 0.5%
40% 200 300.0 1.02 2.0 0.949 193 0.5%
30% 200 300.0 0.960 1.0 0.945 181 0.3%
20% 200 300.0 0.906 1.0 0.941 170 0.3%
10% 200 300.0 0.848 1.0 0.933 158 0.4%
Active Idle 200 300.0 0.725 1.0 0.912 132 0.4%
Power details for pwr1
