Hitachi, Ltd. HA8000/RS210 (LK1) SPECpower_ssj2008 = 2,125 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 3, 2011
Hardware Availability: Dec-2010 Software Availability: Jun-2010 Publication: Mar 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 299 23.0
Calibration 2 303 23.0
Calibration 3 303 23.1
100% 302 23.1
90% 279 23.1
80% 261 23.1
70% 240 23.0
60% 221 23.0
50% 204 23.0
40% 191 23.0
30% 180 23.0
20% 169 23.0
10% 157 22.9
Active Idle 136 23.0

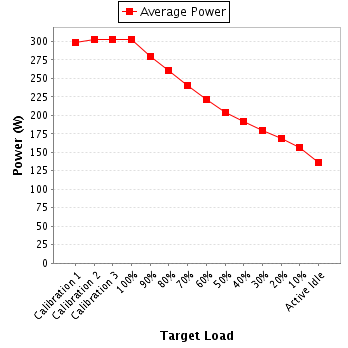

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: B102481
Date of Calibration: 07-Jul-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 200 300.0 1.54 2.0 0.974 299 0.3%
Calibration 2 200 300.0 1.56 2.0 0.974 303 0.3%
Calibration 3 200 300.0 1.56 2.0 0.974 303 0.3%
100% 200 300.0 1.56 2.0 0.974 302 0.3%
90% 200 300.0 1.44 2.0 0.971 279 0.4%
80% 200 300.0 1.35 2.0 0.967 261 0.4%
70% 200 300.0 1.25 2.0 0.964 240 0.4%
60% 200 300.0 1.15 2.0 0.960 221 0.4%
50% 200 300.0 1.07 2.0 0.956 204 0.5%
40% 200 300.0 1.01 2.0 0.952 191 0.5%
30% 200 300.0 0.950 1.0 0.947 180 0.3%
20% 200 300.0 0.897 1.0 0.942 169 0.3%
10% 200 300.0 0.840 1.0 0.934 157 0.4%
Active Idle 200 300.0 0.742 1.0 0.919 136 0.4%
Power details for pwr1
