Hewlett-Packard Company ProLiant DL360 G4p (Historical) SPECpower_ssj2008 = 95.9 overall ssj_ops/watt
Test Sponsor: Intel Corp. SPEC License #: 3184 Test Method: Single Node
Tested By: Principled Technologies, Inc. Test Location: Durham, NC, USA Test Date: Jan 24, 2011
Hardware Availability: Aug-2006 Software Availability: May-2009 Publication: Feb 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.6% 52,239 352 148
90% 90.1% 47,707 337 142
80% 80.8% 42,798 318 134
70% 69.2% 36,670 298 123
60% 60.2% 31,885 282 113
50% 49.8% 26,370 266 99.0
40% 39.5% 20,907 254 82.4
30% 30.2% 16,012 244 65.7
20% 19.8% 10,489 234 44.8
10% 10.1% 5,357 226 23.7
Active Idle 0 216 0
∑ssj_ops / ∑power = 95.9

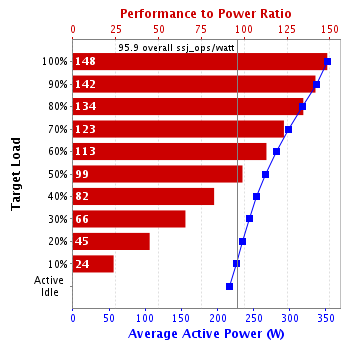

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL360 G4p
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G4p (Historical)
Form Factor: 1U
CPU Name: Intel Xeon Processor 3.4 GHz
CPU Characteristics: Single-Core, 3.4 GHz, 2 MB L2 Cache, 800 MHz system bus
CPU Frequency (MHz): 3400
CPU(s) Enabled: 2 cores, 2 chips, 1 core/chip
Hardware Threads: 2 (1 / core)
CPU(s) Orderable: 2 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per chip
Secondary Cache: 2 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 6
# and size of DIMM: 6 x 1024 MB
Memory Details: 1GB 1Rx4 PC2-3200; all slots populated
Power Supply Quantity and Rating (W): 2 x 460
Power Supply Details: HP part #325718-001
Disk Drive: 2 x 160GB 7.2K RPM SATA
Disk Controller: Intel 6300ESB (ICH-S)
# and type of Network Interface Cards (NICs) Installed: 2 x NC7782 Gigabit Server Adapter
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2003, Enterprise x64 Edition
OS Version: SP2, Build 3790
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3000m -Xmx3000m -Xns2400m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: None
JVM Instances: 1
JVM Initial Heap (MB): 3000
JVM Maximum Heap (MB): 3000
JVM Address Bits: 64
Boot Firmware Version: P54 2007.07.16
Management Firmware Version: 1.94 03/19/2010
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Hardware Prefetcher disabled in BIOS, Adjacent Cache Line Prefetch disabled in BIOS, HP Dynamic Power Savings Mode Enabled in BIOS
Management Firmware Settings
Default
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Super Micro Computer, Inc.
Model: Supermicro 6025W-NTR+V
CPU Description: Intel Xeon Processor E5472
Memory amount (GB): 16
Software
Operating System (OS): Microsoft Windows Server 2003, Enterprise Edition, Service Pack 2
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.5.0-110_o-99226-1.5.0_14-20080528-1505-windows-ia32, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45373
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 07-1673
Date of Calibration: 28-Jul-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main air intake
Notes
Used USB-to-Serial converter, Model Sabrent SBT-USC1M (driver version 2.0.2.1), to connect power analyzer to the controller.

This benchmark result is intended to provide perspective on past power and/or performance using the historical hardware and/or software described on this result page.

The system as described on this result page was formerly generally available. At the time of this publication, it may not be shipping, and/or may not be supported, and/or may fail to meet other tests of General Availability described in the SPEC OSG Policy document, http://www.spec.org/osg/policy.html

This measured result may not be representative of the result that would be measured were this benchmark run with hardware and software available as of the publication date.

Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 352 20.1
90% 337 20.2
80% 318 20.0
70% 298 20.1
60% 282 20.1
50% 266 20.1
40% 254 20.2
30% 244 20.1
20% 234 20.1
10% 226 20.1
Active Idle 216 20.1
Line Standard Minimum Temperature (°C) Elevation (m)
120V / 60 Hz / 1 phase / 2 wires 20.0 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     52,403
Calibration 2     52,928
Calibration 3     53,018
ssj_ops@calibrated=52,973
100% 98.6% 52,973 52,239
90% 90.1% 47,676 47,707
80% 80.8% 42,378 42,798
70% 69.2% 37,081 36,670
60% 60.2% 31,784 31,885
50% 49.8% 26,487 26,370
40% 39.5% 21,189 20,907
30% 30.2% 15,892 16,012
20% 19.8% 10,595 10,489
10% 10.1% 5,297 5,357
Active Idle   0 0
Graph of results
