NEC Corporation Express5800/A1080a-S ssj_ops@100% = 1,895,462
ssj_ops@100% per JVM = 59,233
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Dec 11, 2010
Hardware Availability: Jan-2011 Software Availability: Sep-2010 Publication: Jan 26, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,890,261
Calibration 2     1,907,288
Calibration 3     1,906,039
ssj_ops@calibrated=1,906,664
100% 99.4% 1,906,664 1,895,462
90% 90.0% 1,715,997 1,715,797
80% 80.1% 1,525,331 1,527,799
70% 70.0% 1,334,665 1,335,532
60% 60.0% 1,143,998 1,144,066
50% 50.1% 953,332 955,163
40% 40.1% 762,665 764,202
30% 30.2% 571,999 576,021
20% 20.1% 381,333 382,334
10% 10.0% 190,666 191,364
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Express5800/A1080a-S (Intel Xeon X7560, 2.26 GHz)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/A1080a-S
Form Factor: 7U
CPU Name: Intel Xeon X7560
CPU Characteristics: Octa-Core, 2.26 GHz, 24 MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8192 MB
Memory Details: 8GB 2Rx4 PC3-8500R ECC CL7; slots DIMM#1-DIMM#4 populated on each PMM (Processor Memory Module)
Power Supply Quantity and Rating (W): 2 x 2200
Power Supply Details: NEC RH1685
Disk Drive: 1 x 300GB 10krpm HDD 2.5inch SAS, NEC P/N:NE3105-104
Disk Controller: 6Gbps SAS RAID Controller for Embedded HDD/SSD, NEC P/N:NE3104-001
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated Intel 82576 Gigabit Dual Port Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Power saver
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_21 Performance Release
JVM Command-line Options: -Xms3600m -Xmx3600m -Xmn3300m -XX:+AggressiveOpts -XX:+UseBiasedLocking -XX:+UseStringCache -XX:+OptimizeStringConcat -XX:+UseCompressedStrings -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseCompressedOops -XX:+AlwaysPreTouch -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15
JVM Affinity: start /affinity [3,C,30,C0,...,3000000000000000,C000000000000000]
JVM Instances: 32
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: 1.65
Management Firmware Version: 2.0.0.8
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
A1080a.001 59,935
A1080a.002 59,729
A1080a.003 58,346
A1080a.004 58,627
A1080a.005 59,896
A1080a.006 57,553
A1080a.007 59,911
A1080a.008 60,513
A1080a.009 59,683
A1080a.010 58,101
A1080a.011 57,582
A1080a.012 60,448
A1080a.013 60,078
A1080a.014 58,463
A1080a.015 59,744
A1080a.016 56,770
A1080a.017 58,807
A1080a.018 58,236
A1080a.019 60,373
A1080a.020 58,573
A1080a.021 60,380
A1080a.022 57,498
A1080a.023 59,908
A1080a.024 59,888
A1080a.025 60,104
A1080a.026 58,443
A1080a.027 60,552
A1080a.028 59,605
A1080a.029 60,108
A1080a.030 57,671
A1080a.031 59,976
A1080a.032 59,961
ssj_ops@100% 1,895,462
ssj_ops@100% per JVM 59,233
Graph of per-instance results
JVM 'A1080a.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     59,752
Calibration 2     60,151
Calibration 3     60,200
ssj_ops@calibrated=60,176
100% 99.6% 60,176 59,935
90% 90.0% 54,158 54,180
80% 80.0% 48,141 48,112
70% 71.1% 42,123 42,796
60% 59.7% 36,105 35,906
50% 50.1% 30,088 30,172
40% 39.5% 24,070 23,768
30% 30.5% 18,053 18,343
20% 20.3% 12,035 12,227
10% 10.1% 6,018 6,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,961
Calibration 2     60,416
Calibration 3     60,547
ssj_ops@calibrated=60,481
100% 98.8% 60,481 59,729
90% 89.2% 54,433 53,968
80% 78.7% 48,385 47,583
70% 68.8% 42,337 41,620
60% 60.8% 36,289 36,751
50% 49.7% 30,241 30,043
40% 40.2% 24,193 24,291
30% 30.7% 18,144 18,578
20% 20.2% 12,096 12,200
10% 10.0% 6,048 6,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     58,230
Calibration 2     58,456
Calibration 3     58,487
ssj_ops@calibrated=58,471
100% 99.8% 58,471 58,346
90% 90.3% 52,624 52,828
80% 80.6% 46,777 47,152
70% 69.9% 40,930 40,864
60% 60.6% 35,083 35,450
50% 49.8% 29,236 29,096
40% 40.9% 23,389 23,887
30% 30.0% 17,541 17,557
20% 20.1% 11,694 11,758
10% 9.8% 5,847 5,742
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,900
Calibration 2     58,643
Calibration 3     58,727
ssj_ops@calibrated=58,685
100% 99.9% 58,685 58,627
90% 90.0% 52,816 52,826
80% 78.6% 46,948 46,136
70% 69.4% 41,079 40,736
60% 60.5% 35,211 35,497
50% 49.8% 29,342 29,231
40% 39.7% 23,474 23,274
30% 29.8% 17,605 17,502
20% 19.5% 11,737 11,445
10% 10.3% 5,868 6,050
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     58,265
Calibration 2     60,573
Calibration 3     60,431
ssj_ops@calibrated=60,502
100% 99.0% 60,502 59,896
90% 89.0% 54,452 53,877
80% 81.0% 48,402 49,005
70% 70.3% 42,351 42,504
60% 59.6% 36,301 36,055
50% 50.4% 30,251 30,503
40% 39.8% 24,201 24,083
30% 30.2% 18,151 18,291
20% 19.6% 12,100 11,885
10% 10.6% 6,050 6,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,929
Calibration 2     58,279
Calibration 3     58,298
ssj_ops@calibrated=58,289
100% 98.7% 58,289 57,553
90% 89.8% 52,460 52,342
80% 80.0% 46,631 46,652
70% 69.4% 40,802 40,457
60% 58.8% 34,973 34,250
50% 50.3% 29,144 29,347
40% 39.6% 23,316 23,077
30% 30.9% 17,487 18,039
20% 20.0% 11,658 11,651
10% 9.7% 5,829 5,646
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     58,792
Calibration 2     60,081
Calibration 3     59,872
ssj_ops@calibrated=59,977
100% 99.9% 59,977 59,911
90% 91.0% 53,979 54,571
80% 82.0% 47,981 49,204
70% 70.6% 41,984 42,322
60% 60.3% 35,986 36,184
50% 50.6% 29,988 30,342
40% 40.2% 23,991 24,114
30% 29.6% 17,993 17,725
20% 20.3% 11,995 12,196
10% 10.2% 5,998 6,092
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     61,072
Calibration 2     61,468
Calibration 3     61,333
ssj_ops@calibrated=61,401
100% 98.6% 61,401 60,513
90% 91.2% 55,261 56,012
80% 80.1% 49,121 49,184
70% 70.5% 42,981 43,267
60% 60.1% 36,840 36,875
50% 49.5% 30,700 30,420
40% 40.1% 24,560 24,614
30% 30.8% 18,420 18,938
20% 19.3% 12,280 11,844
10% 10.3% 6,140 6,353
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     60,052
Calibration 2     59,169
Calibration 3     59,192
ssj_ops@calibrated=59,180
100% 100.8% 59,180 59,683
90% 89.8% 53,262 53,169
80% 81.2% 47,344 48,068
70% 70.4% 41,426 41,692
60% 58.2% 35,508 34,458
50% 50.0% 29,590 29,600
40% 41.0% 23,672 24,237
30% 30.5% 17,754 18,079
20% 19.8% 11,836 11,704
10% 9.6% 5,918 5,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

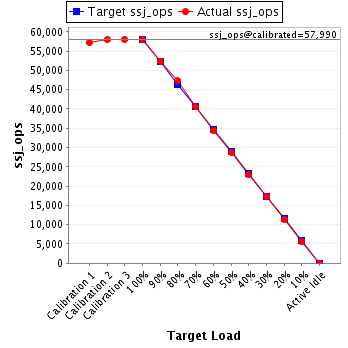

JVM 'A1080a.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,278
Calibration 2     57,962
Calibration 3     58,017
ssj_ops@calibrated=57,990
100% 100.2% 57,990 58,101
90% 90.3% 52,191 52,380
80% 81.5% 46,392 47,290
70% 69.9% 40,593 40,554
60% 59.6% 34,794 34,541
50% 49.6% 28,995 28,753
40% 39.6% 23,196 22,939
30% 29.8% 17,397 17,253
20% 19.6% 11,598 11,352
10% 9.9% 5,799 5,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     56,870
Calibration 2     57,832
Calibration 3     57,968
ssj_ops@calibrated=57,900
100% 99.5% 57,900 57,582
90% 89.7% 52,110 51,962
80% 81.1% 46,320 46,958
70% 70.0% 40,530 40,533
60% 59.5% 34,740 34,450
50% 50.5% 28,950 29,215
40% 41.3% 23,160 23,917
30% 30.5% 17,370 17,679
20% 20.4% 11,580 11,837
10% 9.9% 5,790 5,750
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     60,644
Calibration 2     60,948
Calibration 3     60,712
ssj_ops@calibrated=60,830
100% 99.4% 60,830 60,448
90% 89.7% 54,747 54,541
80% 79.2% 48,664 48,173
70% 69.4% 42,581 42,207
60% 58.8% 36,498 35,768
50% 50.2% 30,415 30,509
40% 39.8% 24,332 24,200
30% 30.6% 18,249 18,623
20% 20.1% 12,166 12,252
10% 9.9% 6,083 6,027
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     60,070
Calibration 2     60,284
Calibration 3     60,299
ssj_ops@calibrated=60,291
100% 99.6% 60,291 60,078
90% 91.0% 54,262 54,858
80% 80.9% 48,233 48,763
70% 69.6% 42,204 41,958
60% 60.4% 36,175 36,437
50% 50.6% 30,146 30,522
40% 40.0% 24,116 24,112
30% 30.2% 18,087 18,197
20% 19.9% 12,058 12,000
10% 9.9% 6,029 5,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     59,752
Calibration 2     59,100
Calibration 3     58,973
ssj_ops@calibrated=59,037
100% 99.0% 59,037 58,463
90% 89.9% 53,133 53,097
80% 79.2% 47,229 46,756
70% 71.6% 41,326 42,267
60% 60.5% 35,422 35,694
50% 51.1% 29,518 30,158
40% 39.7% 23,615 23,421
30% 30.2% 17,711 17,810
20% 20.4% 11,807 12,027
10% 9.9% 5,904 5,867
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     59,601
Calibration 2     59,835
Calibration 3     59,829
ssj_ops@calibrated=59,832
100% 99.9% 59,832 59,744
90% 89.6% 53,849 53,612
80% 79.6% 47,866 47,645
70% 69.8% 41,882 41,736
60% 60.2% 35,899 36,021
50% 50.9% 29,916 30,444
40% 40.0% 23,933 23,931
30% 30.2% 17,950 18,065
20% 20.3% 11,966 12,143
10% 10.1% 5,983 6,067
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,291
Calibration 2     57,489
Calibration 3     57,602
ssj_ops@calibrated=57,546
100% 98.7% 57,546 56,770
90% 89.4% 51,791 51,439
80% 80.9% 46,037 46,565
70% 70.9% 40,282 40,774
60% 59.9% 34,527 34,464
50% 50.4% 28,773 28,992
40% 39.8% 23,018 22,882
30% 30.6% 17,264 17,633
20% 20.2% 11,509 11,638
10% 10.4% 5,755 5,971
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     59,659
Calibration 2     60,056
Calibration 3     59,566
ssj_ops@calibrated=59,811
100% 98.3% 59,811 58,807
90% 89.4% 53,830 53,496
80% 79.3% 47,848 47,445
70% 70.3% 41,867 42,032
60% 61.3% 35,886 36,637
50% 49.8% 29,905 29,762
40% 39.1% 23,924 23,403
30% 29.8% 17,943 17,843
20% 20.0% 11,962 11,987
10% 9.9% 5,981 5,950
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,507
Calibration 2     58,333
Calibration 3     58,205
ssj_ops@calibrated=58,269
100% 99.9% 58,269 58,236
90% 90.9% 52,442 52,952
80% 79.7% 46,615 46,415
70% 69.9% 40,788 40,755
60% 59.4% 34,961 34,630
50% 50.1% 29,134 29,178
40% 39.5% 23,308 23,011
30% 30.3% 17,481 17,647
20% 19.9% 11,654 11,567
10% 9.8% 5,827 5,695
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     59,847
Calibration 2     60,275
Calibration 3     60,504
ssj_ops@calibrated=60,390
100% 100.0% 60,390 60,373
90% 89.4% 54,351 53,994
80% 80.7% 48,312 48,740
70% 69.3% 42,273 41,878
60% 60.6% 36,234 36,621
50% 50.0% 30,195 30,216
40% 40.2% 24,156 24,300
30% 30.6% 18,117 18,499
20% 20.5% 12,078 12,391
10% 10.2% 6,039 6,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     59,426
Calibration 2     59,691
Calibration 3     59,124
ssj_ops@calibrated=59,408
100% 98.6% 59,408 58,573
90% 90.5% 53,467 53,777
80% 81.0% 47,526 48,128
70% 69.4% 41,585 41,226
60% 59.9% 35,645 35,556
50% 49.7% 29,704 29,544
40% 40.2% 23,763 23,854
30% 30.0% 17,822 17,812
20% 20.6% 11,882 12,213
10% 10.0% 5,941 5,967
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     59,549
Calibration 2     59,956
Calibration 3     60,667
ssj_ops@calibrated=60,312
100% 100.1% 60,312 60,380
90% 89.3% 54,281 53,875
80% 80.8% 48,249 48,751
70% 70.0% 42,218 42,237
60% 59.8% 36,187 36,084
50% 50.0% 30,156 30,175
40% 41.0% 24,125 24,743
30% 30.6% 18,094 18,435
20% 20.2% 12,062 12,192
10% 10.2% 6,031 6,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,240
Calibration 2     57,711
Calibration 3     57,715
ssj_ops@calibrated=57,713
100% 99.6% 57,713 57,498
90% 89.6% 51,941 51,720
80% 79.9% 46,170 46,110
70% 69.8% 40,399 40,273
60% 60.0% 34,628 34,599
50% 50.2% 28,856 28,978
40% 40.5% 23,085 23,400
30% 30.2% 17,314 17,449
20% 20.1% 11,543 11,578
10% 9.7% 5,771 5,579
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     59,720
Calibration 2     60,418
Calibration 3     60,435
ssj_ops@calibrated=60,426
100% 99.1% 60,426 59,908
90% 88.9% 54,384 53,710
80% 80.3% 48,341 48,543
70% 69.8% 42,299 42,208
60% 59.7% 36,256 36,050
50% 49.4% 30,213 29,876
40% 39.1% 24,171 23,648
30% 30.4% 18,128 18,376
20% 20.1% 12,085 12,171
10% 9.9% 6,043 5,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     59,535
Calibration 2     60,502
Calibration 3     60,370
ssj_ops@calibrated=60,436
100% 99.1% 60,436 59,888
90% 91.5% 54,393 55,304
80% 80.0% 48,349 48,352
70% 70.2% 42,305 42,402
60% 60.7% 36,262 36,694
50% 50.6% 30,218 30,595
40% 40.3% 24,174 24,345
30% 29.5% 18,131 17,843
20% 20.3% 12,087 12,271
10% 9.8% 6,044 5,924
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     59,845
Calibration 2     60,523
Calibration 3     60,343
ssj_ops@calibrated=60,433
100% 99.5% 60,433 60,104
90% 89.2% 54,390 53,893
80% 79.5% 48,347 48,024
70% 69.3% 42,303 41,894
60% 59.2% 36,260 35,776
50% 50.9% 30,217 30,758
40% 39.7% 24,173 24,016
30% 30.5% 18,130 18,437
20% 20.2% 12,087 12,220
10% 10.5% 6,043 6,338
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,955
Calibration 2     58,736
Calibration 3     58,813
ssj_ops@calibrated=58,775
100% 99.4% 58,775 58,443
90% 91.2% 52,897 53,606
80% 80.5% 47,020 47,289
70% 69.8% 41,142 41,009
60% 60.3% 35,265 35,458
50% 49.5% 29,387 29,100
40% 40.5% 23,510 23,814
30% 30.2% 17,632 17,723
20% 20.5% 11,755 12,033
10% 10.0% 5,877 5,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     60,534
Calibration 2     60,957
Calibration 3     60,615
ssj_ops@calibrated=60,786
100% 99.6% 60,786 60,552
90% 89.2% 54,707 54,215
80% 79.8% 48,629 48,507
70% 70.7% 42,550 42,983
60% 61.0% 36,471 37,059
50% 49.4% 30,393 30,057
40% 40.8% 24,314 24,795
30% 29.7% 18,236 18,054
20% 19.8% 12,157 12,010
10% 10.1% 6,079 6,146
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     60,225
Calibration 2     59,913
Calibration 3     60,131
ssj_ops@calibrated=60,022
100% 99.3% 60,022 59,605
90% 90.6% 54,020 54,351
80% 80.0% 48,018 48,022
70% 70.0% 42,016 41,991
60% 60.1% 36,013 36,054
50% 49.0% 30,011 29,426
40% 40.1% 24,009 24,053
30% 29.7% 18,007 17,836
20% 19.7% 12,004 11,841
10% 9.8% 6,002 5,892
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     60,271
Calibration 2     61,131
Calibration 3     60,866
ssj_ops@calibrated=60,998
100% 98.5% 60,998 60,108
90% 90.2% 54,898 55,033
80% 78.7% 48,799 48,020
70% 70.6% 42,699 43,082
60% 61.7% 36,599 37,653
50% 50.2% 30,499 30,649
40% 40.8% 24,399 24,897
30% 30.7% 18,299 18,744
20% 19.4% 12,200 11,862
10% 9.9% 6,100 6,031
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,479
Calibration 2     57,942
Calibration 3     58,060
ssj_ops@calibrated=58,001
100% 99.4% 58,001 57,671
90% 91.4% 52,201 53,002
80% 79.8% 46,401 46,302
70% 70.0% 40,600 40,574
60% 59.3% 34,800 34,410
50% 50.3% 29,000 29,185
40% 39.5% 23,200 22,887
30% 29.4% 17,400 17,031
20% 19.8% 11,600 11,512
10% 10.4% 5,800 6,044
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     60,083
Calibration 2     60,177
Calibration 3     59,814
ssj_ops@calibrated=59,996
100% 100.0% 59,996 59,976
90% 88.9% 53,996 53,356
80% 79.7% 47,996 47,789
70% 70.5% 41,997 42,306
60% 59.0% 35,997 35,421
50% 49.9% 29,998 29,950
40% 40.6% 23,998 24,332
30% 29.9% 17,999 17,965
20% 20.0% 11,999 12,021
10% 10.0% 6,000 5,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'A1080a.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     59,924
Calibration 2     60,281
Calibration 3     60,323
ssj_ops@calibrated=60,302
100% 99.4% 60,302 59,961
90% 89.3% 54,272 53,850
80% 79.8% 48,242 48,116
70% 70.3% 42,211 42,397
60% 60.6% 36,181 36,563
50% 50.4% 30,151 30,366
40% 39.7% 24,121 23,960
30% 29.9% 18,091 18,015
20% 20.4% 12,060 12,308
10% 10.2% 6,030 6,150
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
