Acer Incorporated Acer AR385 F1 (AMD Opteron 6174, 2.20 GHz) ssj_ops@100% = 935,214
ssj_ops@100% per JVM = 233,804
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Oct 20, 2010
Hardware Availability: Oct-2010 Software Availability: Dec-2009 Publication: Nov 18, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     940,256
Calibration 2     939,561
Calibration 3     938,990
ssj_ops@calibrated=939,276
100% 99.6% 939,276 935,214
90% 89.8% 845,348 843,677
80% 79.9% 751,421 750,490
70% 69.8% 657,493 655,900
60% 60.2% 563,565 565,852
50% 50.0% 469,638 470,010
40% 40.0% 375,710 376,000
30% 29.8% 281,783 280,226
20% 20.0% 187,855 187,526
10% 10.0% 93,928 94,186
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR385 F1 (AMD Opteron 6174, 2.20 GHz)
Form Factor: 2U
CPU Name: AMD Opteron 6174
CPU Characteristics: Twelve Core, 2.20 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 8 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PWS-721P-1R
Disk Drive: 1 x 64GB SSD 2.5" SATA, Acer P/N:KF.0640N.001
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/2
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [00003F, 000FC0, 03F000, FC0000]
JVM Instances: 4
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: T01
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-JDSB2B638IF.001 236,735
WIN-JDSB2B638IF.002 225,718
WIN-JDSB2B638IF.003 238,116
WIN-JDSB2B638IF.004 234,644
ssj_ops@100% 935,214
ssj_ops@100% per JVM 233,804
Graph of per-instance results
JVM 'WIN-JDSB2B638IF.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,284
Calibration 2     236,543
Calibration 3     236,527
ssj_ops@calibrated=236,535
100% 100.1% 236,535 236,735
90% 89.9% 212,881 212,629
80% 79.7% 189,228 188,442
70% 69.4% 165,574 164,082
60% 59.7% 141,921 141,134
50% 50.5% 118,267 119,340
40% 40.2% 94,614 94,975
30% 29.9% 70,960 70,732
20% 19.6% 47,307 46,310
10% 10.0% 23,653 23,607
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JDSB2B638IF.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,582
Calibration 2     227,364
Calibration 3     226,932
ssj_ops@calibrated=227,148
100% 99.4% 227,148 225,718
90% 89.6% 204,433 203,614
80% 79.8% 181,718 181,203
70% 69.5% 159,004 157,929
60% 60.4% 136,289 137,119
50% 49.9% 113,574 113,385
40% 40.0% 90,859 90,875
30% 29.7% 68,144 67,509
20% 20.0% 45,430 45,381
10% 10.1% 22,715 22,977
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JDSB2B638IF.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     239,141
Calibration 2     239,133
Calibration 3     239,475
ssj_ops@calibrated=239,304
100% 99.5% 239,304 238,116
90% 90.0% 215,373 215,458
80% 80.4% 191,443 192,376
70% 70.2% 167,513 167,924
60% 60.1% 143,582 143,882
50% 49.7% 119,652 118,910
40% 39.9% 95,722 95,411
30% 29.8% 71,791 71,376
20% 20.3% 47,861 48,577
10% 10.0% 23,930 23,926
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

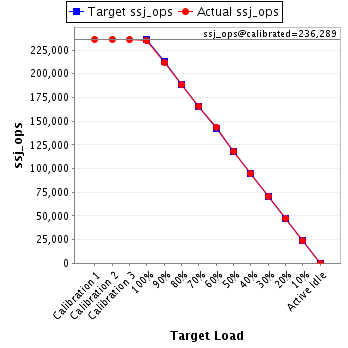

JVM 'WIN-JDSB2B638IF.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,249
Calibration 2     236,522
Calibration 3     236,056
ssj_ops@calibrated=236,289
100% 99.3% 236,289 234,644
90% 89.7% 212,660 211,976
80% 79.8% 189,031 188,468
70% 70.2% 165,402 165,965
60% 60.8% 141,773 143,716
50% 50.1% 118,144 118,375
40% 40.1% 94,516 94,739
30% 29.9% 70,887 70,609
20% 20.0% 47,258 47,258
10% 10.0% 23,629 23,677
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
