SPECpower_ssj2008
Host 'X6000-2' Performance Report
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd XH310 | ssj_ops@100% = 322,670 ssj_ops@100% per JVM = 161,335 |
||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Oct 12, 2009 |
| Hardware Availability: | Jul-2010 | Software Availability: | Jun-2010 | Publication: | Nov 10, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 322,235 | ||
| Calibration 2 | 324,006 | ||
| Calibration 3 | 325,047 | ||
| ssj_ops@calibrated=324,527 | |||
| 100% | 99.4% | 324,527 | 322,670 |
| 90% | 89.8% | 292,074 | 291,374 |
| 80% | 80.4% | 259,621 | 260,913 |
| 70% | 70.5% | 227,169 | 228,952 |
| 60% | 59.6% | 194,716 | 193,283 |
| 50% | 49.9% | 162,263 | 161,869 |
| 40% | 40.2% | 129,811 | 130,452 |
| 30% | 29.8% | 97,358 | 96,549 |
| 20% | 20.1% | 64,905 | 65,219 |
| 10% | 9.9% | 32,453 | 32,257 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 4 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | XH310 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X3470 |
| CPU Characteristics: | Quad-Core, 2.93GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4 GB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E ECC |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 160GB SSD 2.5" SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82576EB Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 R2, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0x0F,0xF0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1900 |
| JVM Maximum Heap (MB): | 1900 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | FUSAV015 |
| Management Firmware Version: | V015 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM Websphere application server V7.0 for Windows on X86-64bit |

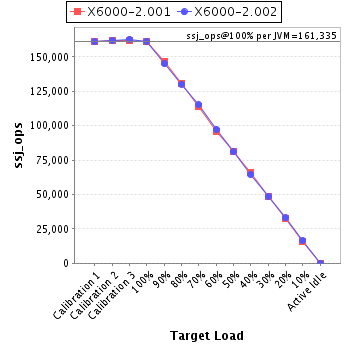

| JVM Instance | ssj_ops@100% |
|---|---|
| X6000-2.001 | 161,339 |
| X6000-2.002 | 161,331 |
| ssj_ops@100% | 322,670 |
| ssj_ops@100% per JVM | 161,335 |

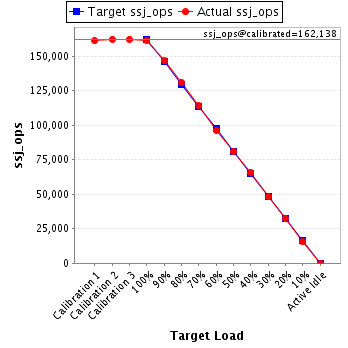

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 161,193 | ||
| Calibration 2 | 162,054 | ||
| Calibration 3 | 162,221 | ||
| ssj_ops@calibrated=162,138 | |||
| 100% | 99.5% | 162,138 | 161,339 |
| 90% | 90.3% | 145,924 | 146,433 |
| 80% | 80.6% | 129,710 | 130,682 |
| 70% | 70.2% | 113,496 | 113,850 |
| 60% | 59.2% | 97,283 | 96,063 |
| 50% | 50.0% | 81,069 | 80,999 |
| 40% | 40.6% | 64,855 | 65,868 |
| 30% | 29.7% | 48,641 | 48,152 |
| 20% | 19.9% | 32,428 | 32,319 |
| 10% | 9.7% | 16,214 | 15,710 |
| Active Idle | 0 | 0 | |

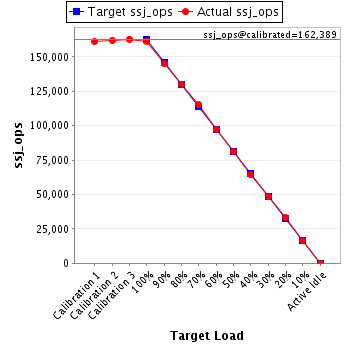

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 161,042 | ||
| Calibration 2 | 161,952 | ||
| Calibration 3 | 162,826 | ||
| ssj_ops@calibrated=162,389 | |||
| 100% | 99.3% | 162,389 | 161,331 |
| 90% | 89.3% | 146,150 | 144,941 |
| 80% | 80.2% | 129,911 | 130,231 |
| 70% | 70.9% | 113,672 | 115,101 |
| 60% | 59.9% | 97,433 | 97,220 |
| 50% | 49.8% | 81,194 | 80,870 |
| 40% | 39.8% | 64,956 | 64,584 |
| 30% | 29.8% | 48,717 | 48,398 |
| 20% | 20.3% | 32,478 | 32,901 |
| 10% | 10.2% | 16,239 | 16,547 |
| Active Idle | 0 | 0 | |
