Acer Incorporated Acer AR160 F1(Intel Xeon X5670, 2.93 GHz) ssj_ops@100% = 898,544
ssj_ops@100% per JVM = 149,757
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Oct 8, 2010
Hardware Availability: Jun-2010 Software Availability: Dec-2009 Publication: Nov 3, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     899,860
Calibration 2     902,768
Calibration 3     903,617
ssj_ops@calibrated=903,193
100% 99.5% 903,193 898,544
90% 89.7% 812,873 810,557
80% 80.3% 722,554 724,925
70% 69.9% 632,235 631,464
60% 60.0% 541,916 542,094
50% 49.9% 451,596 450,764
40% 39.9% 361,277 360,479
30% 29.9% 270,958 270,187
20% 20.0% 180,639 180,812
10% 9.9% 90,319 89,385
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR160 F1(Intel Xeon X5670, 2.93 GHz)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PWS-721P-1R
Disk Drive: 1 x 64GB SSD 2.5" SATA
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: P06
Management Firmware Version: 1.01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
=
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-2CJPLKUS673.001 150,047
WIN-2CJPLKUS673.002 151,520
WIN-2CJPLKUS673.003 149,921
WIN-2CJPLKUS673.004 148,312
WIN-2CJPLKUS673.005 148,430
WIN-2CJPLKUS673.006 150,314
ssj_ops@100% 898,544
ssj_ops@100% per JVM 149,757
Graph of per-instance results
JVM 'WIN-2CJPLKUS673.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,303
Calibration 2     150,216
Calibration 3     149,962
ssj_ops@calibrated=150,089
100% 100.0% 150,089 150,047
90% 89.4% 135,080 134,157
80% 79.7% 120,071 119,595
70% 70.6% 105,062 105,969
60% 60.1% 90,053 90,231
50% 50.1% 75,045 75,267
40% 39.6% 60,036 59,494
30% 30.1% 45,027 45,114
20% 20.0% 30,018 30,051
10% 10.0% 15,009 14,948
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2CJPLKUS673.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,658
Calibration 2     151,328
Calibration 3     152,028
ssj_ops@calibrated=151,678
100% 99.9% 151,678 151,520
90% 90.5% 136,511 137,233
80% 80.4% 121,343 121,908
70% 69.7% 106,175 105,676
60% 60.0% 91,007 90,987
50% 49.9% 75,839 75,682
40% 40.0% 60,671 60,679
30% 29.8% 45,504 45,172
20% 20.0% 30,336 30,322
10% 9.9% 15,168 15,048
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2CJPLKUS673.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,889
Calibration 2     151,446
Calibration 3     151,456
ssj_ops@calibrated=151,451
100% 99.0% 151,451 149,921
90% 89.7% 136,306 135,784
80% 80.2% 121,161 121,505
70% 69.6% 106,016 105,405
60% 60.3% 90,871 91,333
50% 49.5% 75,725 75,008
40% 40.1% 60,580 60,736
30% 29.5% 45,435 44,662
20% 19.8% 30,290 29,935
10% 10.3% 15,145 15,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

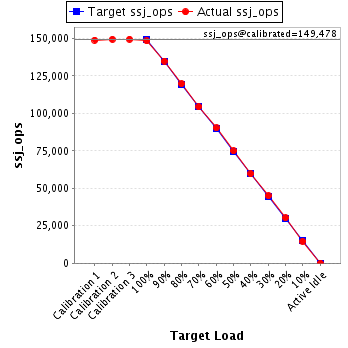

JVM 'WIN-2CJPLKUS673.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,966
Calibration 2     149,435
Calibration 3     149,521
ssj_ops@calibrated=149,478
100% 99.2% 149,478 148,312
90% 90.3% 134,530 134,934
80% 80.1% 119,582 119,724
70% 69.8% 104,635 104,371
60% 60.4% 89,687 90,292
50% 50.1% 74,739 74,909
40% 39.9% 59,791 59,612
30% 30.1% 44,843 44,970
20% 20.2% 29,896 30,232
10% 9.8% 14,948 14,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2CJPLKUS673.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,640
Calibration 2     149,025
Calibration 3     149,815
ssj_ops@calibrated=149,420
100% 99.3% 149,420 148,430
90% 89.8% 134,478 134,233
80% 80.5% 119,536 120,282
70% 70.3% 104,594 105,102
60% 59.9% 89,652 89,513
50% 49.6% 74,710 74,154
40% 39.7% 59,768 59,348
30% 30.0% 44,826 44,754
20% 20.1% 29,884 30,068
10% 9.7% 14,942 14,457
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2CJPLKUS673.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,404
Calibration 2     151,317
Calibration 3     150,835
ssj_ops@calibrated=151,076
100% 99.5% 151,076 150,314
90% 88.8% 135,968 134,215
80% 80.7% 120,861 121,910
70% 69.5% 105,753 104,940
60% 59.4% 90,646 89,737
50% 50.1% 75,538 75,744
40% 40.1% 60,430 60,611
30% 30.1% 45,323 45,514
20% 20.0% 30,215 30,203
10% 9.8% 15,108 14,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
