Hewlett-Packard Company ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor) SPECpower_ssj2008 = 3,008 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Apr 15, 2010
Hardware Availability: Jun-2010 Software Availability: Mar-2010 Publication: May 13, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 3,424,663 883 3,877
90% 89.9% 3,091,190 822 3,763
80% 80.0% 2,751,552 756 3,638
70% 70.0% 2,406,872 684 3,521
60% 59.8% 2,056,560 613 3,353
50% 50.1% 1,722,445 555 3,105
40% 40.0% 1,374,633 504 2,727
30% 30.0% 1,032,137 460 2,244
20% 20.0% 687,722 419 1,642
10% 9.9% 340,440 369 923
Active Idle 0 216 0
∑ssj_ops / ∑power = 3,008
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 48 96 64.0 4 24
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ProLiant h1000 G6
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1200
Power Supply Details: HP part #: 570451-101
Network Switch: HP Procurve 6108
Network Switch Details: 8-Port Gigabit switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: HP h1000 Common Slot PS BP power supply enablement kit, HP Part#516136-B21
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL4x170h G6
# of Identical Nodes: 4
Comment: System Under Test
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1 and 4 populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB SSD 2.5" SATA, HP part #:572071-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: Used "start /AFFINITY [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 034 04/02/2010
Management Firmware Version: 4.20 1/13/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G5
CPU Description: Intel Xeon E5440
Memory amount (GB): 1
Software
Operating System (OS): Windows 2003 R2 Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: BEA JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 705449
Date of Calibration: 10-Dec-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: SUT Power Supplies
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main air intake
Notes
none
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 883 22.6
90% 822 22.8
80% 756 22.8
70% 684 22.6
60% 613 22.6
50% 555 22.6
40% 504 22.4
30% 460 22.4
20% 419 22.3
10% 369 22.2
Active Idle 216 22.1
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.1 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,422,269
Calibration 2     3,442,267
Calibration 3     3,433,003
ssj_ops@calibrated=3,437,635
100% 99.6% 3,437,635 3,424,663
90% 89.9% 3,093,871 3,091,190
80% 80.0% 2,750,108 2,751,552
70% 70.0% 2,406,344 2,406,872
60% 59.8% 2,062,581 2,056,560
50% 50.1% 1,718,817 1,722,445
40% 40.0% 1,375,054 1,374,633
30% 30.0% 1,031,290 1,032,137
20% 20.0% 687,527 687,722
10% 9.9% 343,763 340,440
Active Idle   0 0

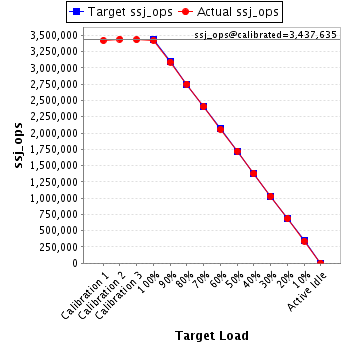

Graph of results
See the Aggregate Performance Report for additional details.
