Fujitsu PRIMERGY RX200 S6 (Intel Xeon X5670) ssj_ops@100% = 913,790
ssj_ops@100% per JVM = 152,298
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 17, 2010
Hardware Availability: Apr-2010 Software Availability: Nov-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     918,525
Calibration 2     918,807
Calibration 3     914,368
ssj_ops@calibrated=916,587
100% 99.7% 916,587 913,790
90% 90.1% 824,929 825,810
80% 80.3% 733,270 735,628
70% 69.8% 641,611 640,194
60% 59.8% 549,952 547,810
50% 50.1% 458,294 459,091
40% 39.9% 366,635 365,763
30% 29.8% 274,976 273,004
20% 20.0% 183,317 183,518
10% 9.9% 91,659 91,022
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX200 S6 (Intel Xeon X5670)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Hexa-Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC CL9; slots 1A, 1B, 1C, 1D, 1E, 1F populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: Fujitsu Technology Solutions S26113-F570-E1
Disk Drive: 1 x 64GB SSD (Fujitsu S26361-F3298-E64)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82575EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition + SP2
OS Version: Version 6.0.6002 Service Pack 2 Build 6002
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.99H
Management Firmware Version: 3.91A
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-976N066CHPZ.001 151,400
WIN-976N066CHPZ.002 152,197
WIN-976N066CHPZ.003 153,717
WIN-976N066CHPZ.004 151,608
WIN-976N066CHPZ.005 151,286
WIN-976N066CHPZ.006 153,581
ssj_ops@100% 913,790
ssj_ops@100% per JVM 152,298
Graph of per-instance results
JVM 'WIN-976N066CHPZ.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,776
Calibration 2     153,293
Calibration 3     152,476
ssj_ops@calibrated=152,884
100% 99.0% 152,884 151,400
90% 90.0% 137,596 137,557
80% 80.0% 122,308 122,328
70% 69.4% 107,019 106,097
60% 59.9% 91,731 91,506
50% 49.7% 76,442 76,002
40% 39.8% 61,154 60,861
30% 30.0% 45,865 45,851
20% 20.0% 30,577 30,648
10% 9.9% 15,288 15,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-976N066CHPZ.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,167
Calibration 2     152,376
Calibration 3     151,446
ssj_ops@calibrated=151,911
100% 100.2% 151,911 152,197
90% 90.2% 136,720 136,979
80% 80.2% 121,529 121,822
70% 69.8% 106,338 105,986
60% 59.9% 91,147 90,935
50% 49.9% 75,956 75,873
40% 39.6% 60,764 60,139
30% 29.4% 45,573 44,646
20% 20.0% 30,382 30,399
10% 9.9% 15,191 14,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-976N066CHPZ.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,366
Calibration 2     154,629
Calibration 3     153,989
ssj_ops@calibrated=154,309
100% 99.6% 154,309 153,717
90% 89.9% 138,878 138,716
80% 79.8% 123,447 123,192
70% 70.5% 108,016 108,830
60% 59.6% 92,585 92,028
50% 50.1% 77,155 77,256
40% 40.1% 61,724 61,925
30% 29.5% 46,293 45,528
20% 20.1% 30,862 31,051
10% 9.6% 15,431 14,742
Active Idle   0 0

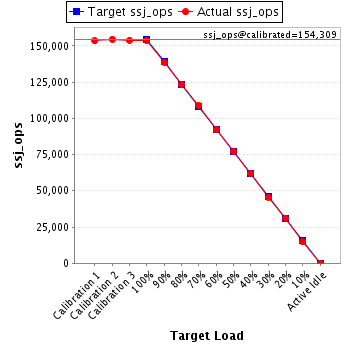

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-976N066CHPZ.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,150
Calibration 2     152,506
Calibration 3     151,930
ssj_ops@calibrated=152,218
100% 99.6% 152,218 151,608
90% 90.4% 136,996 137,561
80% 80.5% 121,774 122,465
70% 69.6% 106,552 105,975
60% 59.9% 91,331 91,152
50% 50.0% 76,109 76,167
40% 39.7% 60,887 60,461
30% 30.0% 45,665 45,704
20% 20.0% 30,444 30,393
10% 9.9% 15,222 15,045
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-976N066CHPZ.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,338
Calibration 2     151,684
Calibration 3     151,244
ssj_ops@calibrated=151,464
100% 99.9% 151,464 151,286
90% 89.9% 136,317 136,167
80% 80.3% 121,171 121,568
70% 69.6% 106,025 105,384
60% 59.5% 90,878 90,099
50% 50.5% 75,732 76,553
40% 39.8% 60,586 60,340
30% 30.1% 45,439 45,562
20% 19.9% 30,293 30,118
10% 10.3% 15,146 15,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-976N066CHPZ.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,729
Calibration 2     154,319
Calibration 3     153,283
ssj_ops@calibrated=153,801
100% 99.9% 153,801 153,581
90% 90.3% 138,421 138,830
80% 80.8% 123,041 124,253
70% 70.2% 107,661 107,921
60% 59.9% 92,281 92,089
50% 50.2% 76,901 77,241
40% 40.3% 61,520 62,038
30% 29.7% 46,140 45,713
20% 20.1% 30,760 30,909
10% 10.1% 15,380 15,478
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
