Fujitsu PRIMERGY RX200 S6 (Intel Xeon X5670) SPECpower_ssj2008 = 2,850 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 17, 2010
Hardware Availability: Apr-2010 Software Availability: Nov-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 241 21.9
Calibration 2 243 21.8
Calibration 3 243 21.8
100% 242 21.8
90% 221 21.8
80% 201 21.9
70% 184 22.1
60% 169 22.4
50% 157 22.6
40% 146 22.7
30% 134 22.7
20% 124 22.7
10% 111 22.7
Active Idle 76.2 22.7

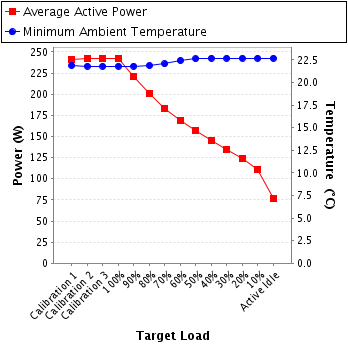

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 09075306
Date of Calibration: 06-Jul-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 229 250.0 1.07 2.5 0.985 241 0.1%
Calibration 2 228 250.0 1.08 2.5 0.985 243 0.1%
Calibration 3 228 250.0 1.08 2.5 0.985 243 0.1%
100% 228 250.0 1.08 2.5 0.985 242 0.1%
90% 228 250.0 0.988 1.2 0.982 221 0.1%
80% 229 250.0 0.898 1.2 0.979 201 0.1%
70% 229 250.0 0.821 1.2 0.977 184 0.1%
60% 229 250.0 0.761 1.2 0.974 169 0.1%
50% 229 250.0 0.709 1.2 0.971 157 0.1%
40% 228 250.0 0.659 1.2 0.968 146 0.1%
30% 228 250.0 0.612 1.2 0.964 134 0.1%
20% 227 250.0 0.567 1.2 0.961 124 0.1%
10% 227 250.0 0.512 0.6 0.955 111 0.1%
Active Idle 227 250.0 0.358 0.6 0.938 76.2 0.1%

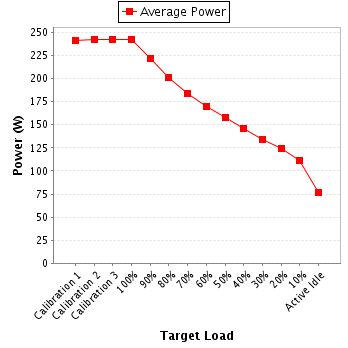

Power details for pwr1
