IBM Corporation IBM System x3400 M3 ssj_ops@100% = 917,430
ssj_ops@100% per JVM = 152,905
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: Mar 10, 2010
Hardware Availability: Jun-2010 Software Availability: Oct-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     922,059
Calibration 2     926,401
Calibration 3     923,967
ssj_ops@calibrated=925,184
100% 99.2% 925,184 917,430
90% 90.1% 832,666 833,608
80% 80.0% 740,147 740,162
70% 70.0% 647,629 647,924
60% 59.9% 555,110 554,220
50% 50.1% 462,592 463,834
40% 39.8% 370,074 368,170
30% 29.8% 277,555 275,523
20% 20.2% 185,037 187,280
10% 10.0% 92,518 92,621
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3400 M3
Form Factor: Tower
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: Samsung 2GB 2Rx8 PC3L-10600 CL9 ECC , IBM part no.49Y1392 ; slots 3, 6, 8, 11, 14, and 16 populated
Power Supply Quantity and Rating (W): 1 x 670
Power Supply Details: IBM P/N 39Y7392
Disk Drive: 250GB 7200 RPM 3.5" Hot-Swap SATA II disk , IBM part no.39M4526
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Broadcom NetXtreme II Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (See SUT Note)
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: Y4E145V
Management Firmware Version: YUOO57G
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Note
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-6DA71QD5U0U.001 155,343
WIN-6DA71QD5U0U.002 153,808
WIN-6DA71QD5U0U.003 151,342
WIN-6DA71QD5U0U.004 149,226
WIN-6DA71QD5U0U.005 151,979
WIN-6DA71QD5U0U.006 155,733
ssj_ops@100% 917,430
ssj_ops@100% per JVM 152,905

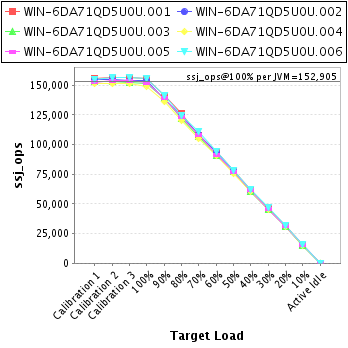

Graph of per-instance results
JVM 'WIN-6DA71QD5U0U.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,035
Calibration 2     156,722
Calibration 3     156,302
ssj_ops@calibrated=156,512
100% 99.3% 156,512 155,343
90% 90.2% 140,861 141,129
80% 80.5% 125,210 125,944
70% 68.8% 109,559 107,687
60% 60.0% 93,907 93,931
50% 49.7% 78,256 77,808
40% 40.0% 62,605 62,545
30% 29.5% 46,954 46,203
20% 20.3% 31,302 31,745
10% 9.9% 15,651 15,507
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6DA71QD5U0U.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,428
Calibration 2     155,125
Calibration 3     153,586
ssj_ops@calibrated=154,356
100% 99.6% 154,356 153,808
90% 89.4% 138,920 137,933
80% 80.5% 123,485 124,276
70% 70.4% 108,049 108,601
60% 60.3% 92,613 93,057
50% 50.5% 77,178 77,907
40% 39.1% 61,742 60,411
30% 29.6% 46,307 45,640
20% 20.3% 30,871 31,384
10% 9.9% 15,436 15,344
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6DA71QD5U0U.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,409
Calibration 2     153,210
Calibration 3     152,231
ssj_ops@calibrated=152,721
100% 99.1% 152,721 151,342
90% 90.9% 137,449 138,756
80% 79.9% 122,176 122,040
70% 70.1% 106,904 107,076
60% 59.5% 91,632 90,809
50% 50.7% 76,360 77,471
40% 39.6% 61,088 60,534
30% 29.7% 45,816 45,428
20% 20.1% 30,544 30,735
10% 10.1% 15,272 15,358
Active Idle   0 0

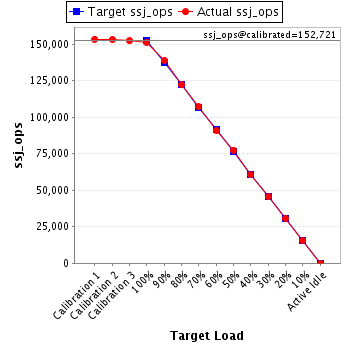

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6DA71QD5U0U.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,353
Calibration 2     151,244
Calibration 3     151,658
ssj_ops@calibrated=151,451
100% 98.5% 151,451 149,226
90% 89.8% 136,306 135,991
80% 79.6% 121,161 120,560
70% 69.5% 106,016 105,269
60% 59.9% 90,871 90,684
50% 49.7% 75,725 75,307
40% 40.0% 60,580 60,632
30% 30.1% 45,435 45,584
20% 20.3% 30,290 30,716
10% 10.0% 15,145 15,137
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6DA71QD5U0U.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,442
Calibration 2     153,921
Calibration 3     153,745
ssj_ops@calibrated=153,833
100% 98.8% 153,833 151,979
90% 90.3% 138,450 138,872
80% 79.9% 123,066 122,964
70% 70.4% 107,683 108,353
60% 59.5% 92,300 91,592
50% 50.0% 76,916 76,924
40% 40.1% 61,533 61,669
30% 29.7% 46,150 45,699
20% 20.3% 30,767 31,165
10% 10.1% 15,383 15,463
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6DA71QD5U0U.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,393
Calibration 2     156,179
Calibration 3     156,444
ssj_ops@calibrated=156,311
100% 99.6% 156,311 155,733
90% 90.2% 140,680 140,928
80% 79.6% 125,049 124,377
70% 71.0% 109,418 110,938
60% 60.2% 93,787 94,148
50% 50.2% 78,156 78,417
40% 39.9% 62,525 62,379
30% 30.0% 46,893 46,970
20% 20.2% 31,262 31,535
10% 10.1% 15,631 15,811
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
