Acer Incorporated Gateway GW1000-GW170 F1 | ssj_ops@100% = 452,123 ssj_ops@100% per JVM = 113,031 |
||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Multi Node |
Tested By: | Acer Incorporated | Test Location: | San Jose, CA, USA | Test Date: | Oct 29, 2009 |
Hardware Availability: | Dec-2009 | Software Availability: | Jun-2009 | Publication: | Nov 18, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 446,623 | ||
Calibration 2 | 453,252 | ||
Calibration 3 | 453,143 | ||
ssj_ops@calibrated=453,197 | |||
100% | 99.8% | 453,197 | 452,123 |
90% | 89.6% | 407,878 | 406,148 |
80% | 80.6% | 362,558 | 365,428 |
70% | 69.7% | 317,238 | 315,667 |
60% | 60.0% | 271,918 | 271,759 |
50% | 50.0% | 226,599 | 226,807 |
40% | 40.0% | 181,279 | 181,273 |
30% | 30.4% | 135,959 | 137,790 |
20% | 19.9% | 90,639 | 90,165 |
10% | 10.0% | 45,320 | 45,326 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | None |
# of Identical Nodes: | 2 |
Comment: | System Under Test |
Hardware | |
---|---|
Hardware Vendor: | Acer Incorporated |
Model: | Gateway GW1000-GW170 F1 |
Form Factor: | 1U |
CPU Name: | Intel Xeon L5520 |
CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
CPU Frequency (MHz): | 2266 |
CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
Hardware Threads: | 16 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 8 |
# and size of DIMM: | 4 x 2048 MB |
Memory Details: | 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC |
Disk Controller: | Intel ICH10R SATA 3.0Gbps Controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82576 Gigabit Ethernet |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | KVM |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced power enabled in OS |
Operating System (OS): | Windows Server 2008 x64, Enterprise Edition |
OS Version: | SP2 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
JVM Command-line Options: | -Xms1600m -Xmx1500m -Xns1600m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k |
JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00, 0xF000] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 1600 |
JVM Maximum Heap (MB): | 1600 |
JVM Address Bits: | 64 |
Boot Firmware Version: | D02 10/15/2009 |
Management Firmware Version: | 0.03 10/26/2009 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | None |
JVM Instance | ssj_ops@100% |
---|---|
Acer-GW1000-Sut0.001 | 113,370 |
Acer-GW1000-Sut0.002 | 112,341 |
Acer-GW1000-Sut0.003 | 113,660 |
Acer-GW1000-Sut0.004 | 112,751 |
ssj_ops@100% | 452,123 |
ssj_ops@100% per JVM | 113,031 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 112,853 | ||
Calibration 2 | 114,279 | ||
Calibration 3 | 113,550 | ||
ssj_ops@calibrated=113,914 | |||
100% | 99.5% | 113,914 | 113,370 |
90% | 90.6% | 102,523 | 103,183 |
80% | 80.4% | 91,131 | 91,640 |
70% | 70.0% | 79,740 | 79,708 |
60% | 60.0% | 68,349 | 68,372 |
50% | 50.3% | 56,957 | 57,258 |
40% | 39.6% | 45,566 | 45,130 |
30% | 30.4% | 34,174 | 34,577 |
20% | 19.3% | 22,783 | 21,968 |
10% | 10.1% | 11,391 | 11,474 |
Active Idle | 0 | 0 |

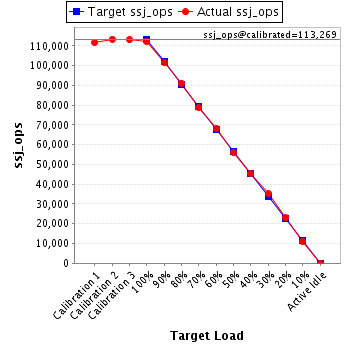

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 111,744 | ||
Calibration 2 | 113,436 | ||
Calibration 3 | 113,102 | ||
ssj_ops@calibrated=113,269 | |||
100% | 99.2% | 113,269 | 112,341 |
90% | 89.6% | 101,942 | 101,526 |
80% | 80.5% | 90,615 | 91,194 |
70% | 69.7% | 79,288 | 78,918 |
60% | 60.2% | 67,961 | 68,162 |
50% | 49.7% | 56,634 | 56,293 |
40% | 39.9% | 45,308 | 45,210 |
30% | 31.1% | 33,981 | 35,206 |
20% | 20.2% | 22,654 | 22,920 |
10% | 9.8% | 11,327 | 11,112 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 110,700 | ||
Calibration 2 | 113,096 | ||
Calibration 3 | 113,638 | ||
ssj_ops@calibrated=113,367 | |||
100% | 100.3% | 113,367 | 113,660 |
90% | 88.7% | 102,030 | 100,568 |
80% | 81.0% | 90,694 | 91,824 |
70% | 69.2% | 79,357 | 78,500 |
60% | 59.8% | 68,020 | 67,786 |
50% | 50.5% | 56,684 | 57,235 |
40% | 40.2% | 45,347 | 45,625 |
30% | 29.6% | 34,010 | 33,542 |
20% | 20.2% | 22,673 | 22,850 |
10% | 10.0% | 11,337 | 11,369 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 111,326 | ||
Calibration 2 | 112,441 | ||
Calibration 3 | 112,853 | ||
ssj_ops@calibrated=112,647 | |||
100% | 100.1% | 112,647 | 112,751 |
90% | 89.5% | 101,382 | 100,872 |
80% | 80.6% | 90,118 | 90,770 |
70% | 69.7% | 78,853 | 78,542 |
60% | 59.9% | 67,588 | 67,438 |
50% | 49.7% | 56,324 | 56,021 |
40% | 40.2% | 45,059 | 45,308 |
30% | 30.6% | 33,794 | 34,465 |
20% | 19.9% | 22,529 | 22,427 |
10% | 10.1% | 11,265 | 11,370 |
Active Idle | 0 | 0 |
