SPECpower_ssj2008
Host '220g6-9a-17-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 513,493 ssj_ops@100% per JVM = 128,373 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 512,516 | ||
| Calibration 2 | 513,647 | ||
| Calibration 3 | 513,285 | ||
| ssj_ops@calibrated=513,466 | |||
| 100% | 100.0% | 513,466 | 513,493 |
| 90% | 90.7% | 462,120 | 465,726 |
| 80% | 80.4% | 410,773 | 412,649 |
| 70% | 69.9% | 359,426 | 358,832 |
| 60% | 60.0% | 308,080 | 308,150 |
| 50% | 50.0% | 256,733 | 256,797 |
| 40% | 40.0% | 205,386 | 205,386 |
| 30% | 29.5% | 154,040 | 151,606 |
| 20% | 20.0% | 102,693 | 102,542 |
| 10% | 10.0% | 51,347 | 51,097 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

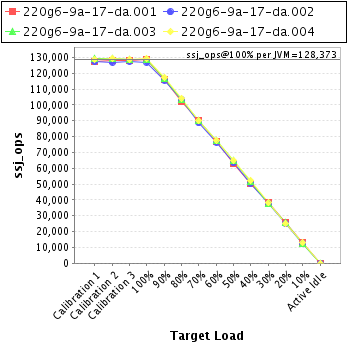

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-9a-17-da.001 | 128,734 |
| 220g6-9a-17-da.002 | 127,001 |
| 220g6-9a-17-da.003 | 128,676 |
| 220g6-9a-17-da.004 | 129,083 |
| ssj_ops@100% | 513,493 |
| ssj_ops@100% per JVM | 128,373 |

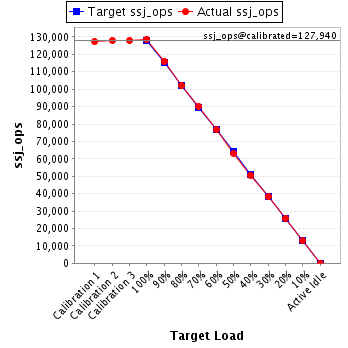

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,313 | ||
| Calibration 2 | 127,906 | ||
| Calibration 3 | 127,974 | ||
| ssj_ops@calibrated=127,940 | |||
| 100% | 100.6% | 127,940 | 128,734 |
| 90% | 90.6% | 115,146 | 115,926 |
| 80% | 79.7% | 102,352 | 101,952 |
| 70% | 70.5% | 89,558 | 90,156 |
| 60% | 60.0% | 76,764 | 76,731 |
| 50% | 49.5% | 63,970 | 63,287 |
| 40% | 39.6% | 51,176 | 50,653 |
| 30% | 29.9% | 38,382 | 38,211 |
| 20% | 20.3% | 25,588 | 25,952 |
| 10% | 10.0% | 12,794 | 12,841 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,257 | ||
| Calibration 2 | 127,032 | ||
| Calibration 3 | 127,491 | ||
| ssj_ops@calibrated=127,261 | |||
| 100% | 99.8% | 127,261 | 127,001 |
| 90% | 90.9% | 114,535 | 115,658 |
| 80% | 81.0% | 101,809 | 103,077 |
| 70% | 69.7% | 89,083 | 88,649 |
| 60% | 60.0% | 76,357 | 76,416 |
| 50% | 49.8% | 63,631 | 63,402 |
| 40% | 39.8% | 50,905 | 50,644 |
| 30% | 29.7% | 38,178 | 37,757 |
| 20% | 19.8% | 25,452 | 25,163 |
| 10% | 10.0% | 12,726 | 12,714 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 129,251 | ||
| Calibration 2 | 129,249 | ||
| Calibration 3 | 128,939 | ||
| ssj_ops@calibrated=129,094 | |||
| 100% | 99.7% | 129,094 | 128,676 |
| 90% | 90.5% | 116,185 | 116,831 |
| 80% | 80.0% | 103,275 | 103,332 |
| 70% | 69.8% | 90,366 | 90,164 |
| 60% | 59.8% | 77,457 | 77,229 |
| 50% | 50.4% | 64,547 | 65,053 |
| 40% | 40.2% | 51,638 | 51,918 |
| 30% | 29.1% | 38,728 | 37,565 |
| 20% | 20.2% | 25,819 | 26,026 |
| 10% | 9.9% | 12,909 | 12,740 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,695 | ||
| Calibration 2 | 129,460 | ||
| Calibration 3 | 128,881 | ||
| ssj_ops@calibrated=129,171 | |||
| 100% | 99.9% | 129,171 | 129,083 |
| 90% | 90.8% | 116,254 | 117,311 |
| 80% | 80.7% | 103,336 | 104,288 |
| 70% | 69.6% | 90,419 | 89,862 |
| 60% | 60.2% | 77,502 | 77,775 |
| 50% | 50.4% | 64,585 | 65,055 |
| 40% | 40.4% | 51,668 | 52,171 |
| 30% | 29.5% | 38,751 | 38,072 |
| 20% | 19.7% | 25,834 | 25,400 |
| 10% | 9.9% | 12,917 | 12,802 |
| Active Idle | 0 | 0 | |
