SPECpower_ssj2008
Host '220g6-4b-8-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 516,247 ssj_ops@100% per JVM = 129,062 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 513,172 | ||
| Calibration 2 | 516,133 | ||
| Calibration 3 | 518,176 | ||
| ssj_ops@calibrated=517,155 | |||
| 100% | 99.8% | 517,155 | 516,247 |
| 90% | 90.9% | 465,439 | 469,888 |
| 80% | 81.0% | 413,724 | 418,762 |
| 70% | 70.6% | 362,008 | 364,962 |
| 60% | 59.7% | 310,293 | 308,925 |
| 50% | 49.8% | 258,577 | 257,310 |
| 40% | 40.1% | 206,862 | 207,499 |
| 30% | 30.0% | 155,146 | 155,225 |
| 20% | 19.9% | 103,431 | 102,981 |
| 10% | 10.0% | 51,715 | 51,525 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

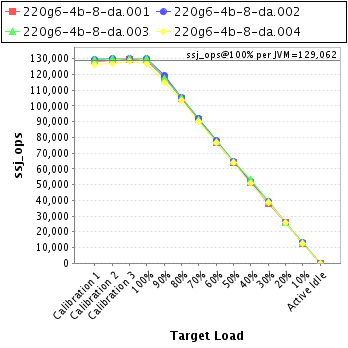

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-4b-8-da.001 | 129,205 |
| 220g6-4b-8-da.002 | 130,028 |
| 220g6-4b-8-da.003 | 130,288 |
| 220g6-4b-8-da.004 | 126,725 |
| ssj_ops@100% | 516,247 |
| ssj_ops@100% per JVM | 129,062 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,171 | ||
| Calibration 2 | 129,031 | ||
| Calibration 3 | 129,577 | ||
| ssj_ops@calibrated=129,304 | |||
| 100% | 99.9% | 129,304 | 129,205 |
| 90% | 91.1% | 116,374 | 117,783 |
| 80% | 81.1% | 103,443 | 104,852 |
| 70% | 70.7% | 90,513 | 91,370 |
| 60% | 59.4% | 77,582 | 76,794 |
| 50% | 49.6% | 64,652 | 64,146 |
| 40% | 39.8% | 51,722 | 51,500 |
| 30% | 29.4% | 38,791 | 38,057 |
| 20% | 19.8% | 25,861 | 25,618 |
| 10% | 9.9% | 12,930 | 12,829 |
| Active Idle | 0 | 0 | |

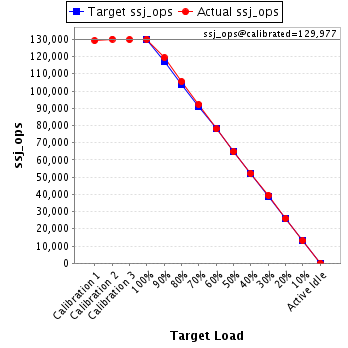

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 129,265 | ||
| Calibration 2 | 130,094 | ||
| Calibration 3 | 129,859 | ||
| ssj_ops@calibrated=129,977 | |||
| 100% | 100.0% | 129,977 | 130,028 |
| 90% | 91.9% | 116,979 | 119,410 |
| 80% | 81.2% | 103,981 | 105,544 |
| 70% | 70.9% | 90,984 | 92,152 |
| 60% | 60.0% | 77,986 | 78,048 |
| 50% | 49.8% | 64,988 | 64,756 |
| 40% | 40.0% | 51,991 | 52,026 |
| 30% | 30.3% | 38,993 | 39,378 |
| 20% | 20.0% | 25,995 | 25,962 |
| 10% | 10.1% | 12,998 | 13,174 |
| Active Idle | 0 | 0 | |

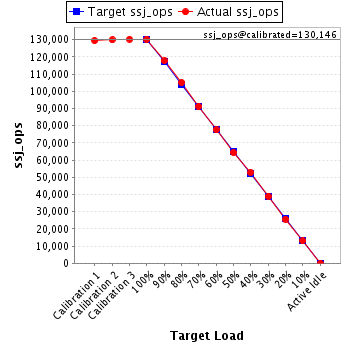

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 129,503 | ||
| Calibration 2 | 129,922 | ||
| Calibration 3 | 130,371 | ||
| ssj_ops@calibrated=130,146 | |||
| 100% | 100.1% | 130,146 | 130,288 |
| 90% | 90.5% | 117,132 | 117,748 |
| 80% | 80.7% | 104,117 | 105,077 |
| 70% | 70.1% | 91,102 | 91,261 |
| 60% | 59.6% | 78,088 | 77,618 |
| 50% | 49.5% | 65,073 | 64,428 |
| 40% | 40.7% | 52,059 | 52,970 |
| 30% | 30.0% | 39,044 | 39,006 |
| 20% | 19.7% | 26,029 | 25,690 |
| 10% | 10.0% | 13,015 | 12,994 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 126,233 | ||
| Calibration 2 | 127,086 | ||
| Calibration 3 | 128,369 | ||
| ssj_ops@calibrated=127,728 | |||
| 100% | 99.2% | 127,728 | 126,725 |
| 90% | 90.0% | 114,955 | 114,947 |
| 80% | 80.9% | 102,182 | 103,289 |
| 70% | 70.6% | 89,409 | 90,178 |
| 60% | 59.9% | 76,637 | 76,465 |
| 50% | 50.1% | 63,864 | 63,979 |
| 40% | 39.9% | 51,091 | 51,002 |
| 30% | 30.4% | 38,318 | 38,784 |
| 20% | 20.1% | 25,546 | 25,711 |
| 10% | 9.8% | 12,773 | 12,528 |
| Active Idle | 0 | 0 | |
