SPECpower_ssj2008
Host '220g6-4a-7-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 512,098 ssj_ops@100% per JVM = 128,025 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 510,798 | ||
| Calibration 2 | 515,172 | ||
| Calibration 3 | 513,969 | ||
| ssj_ops@calibrated=514,570 | |||
| 100% | 99.5% | 514,570 | 512,098 |
| 90% | 90.4% | 463,113 | 464,926 |
| 80% | 80.8% | 411,656 | 415,888 |
| 70% | 70.2% | 360,199 | 361,003 |
| 60% | 59.9% | 308,742 | 308,392 |
| 50% | 50.2% | 257,285 | 258,424 |
| 40% | 40.1% | 205,828 | 206,252 |
| 30% | 29.7% | 154,371 | 152,715 |
| 20% | 20.0% | 102,914 | 102,953 |
| 10% | 9.9% | 51,457 | 50,870 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-4a-7-da.001 | 128,262 |
| 220g6-4a-7-da.002 | 128,337 |
| 220g6-4a-7-da.003 | 128,582 |
| 220g6-4a-7-da.004 | 126,917 |
| ssj_ops@100% | 512,098 |
| ssj_ops@100% per JVM | 128,025 |

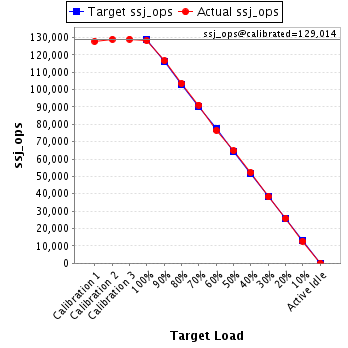

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,800 | ||
| Calibration 2 | 128,961 | ||
| Calibration 3 | 129,067 | ||
| ssj_ops@calibrated=129,014 | |||
| 100% | 99.4% | 129,014 | 128,262 |
| 90% | 90.4% | 116,112 | 116,615 |
| 80% | 80.3% | 103,211 | 103,576 |
| 70% | 70.6% | 90,310 | 91,126 |
| 60% | 59.3% | 77,408 | 76,568 |
| 50% | 50.2% | 64,507 | 64,807 |
| 40% | 40.5% | 51,606 | 52,309 |
| 30% | 29.7% | 38,704 | 38,309 |
| 20% | 20.1% | 25,803 | 25,893 |
| 10% | 9.9% | 12,901 | 12,783 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,668 | ||
| Calibration 2 | 129,577 | ||
| Calibration 3 | 128,504 | ||
| ssj_ops@calibrated=129,041 | |||
| 100% | 99.5% | 129,041 | 128,337 |
| 90% | 90.0% | 116,136 | 116,168 |
| 80% | 80.7% | 103,232 | 104,107 |
| 70% | 70.5% | 90,328 | 90,964 |
| 60% | 60.3% | 77,424 | 77,777 |
| 50% | 50.1% | 64,520 | 64,665 |
| 40% | 40.2% | 51,616 | 51,867 |
| 30% | 29.8% | 38,712 | 38,461 |
| 20% | 20.2% | 25,808 | 26,011 |
| 10% | 10.0% | 12,904 | 12,959 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,694 | ||
| Calibration 2 | 129,248 | ||
| Calibration 3 | 129,310 | ||
| ssj_ops@calibrated=129,279 | |||
| 100% | 99.5% | 129,279 | 128,582 |
| 90% | 89.7% | 116,351 | 116,000 |
| 80% | 82.0% | 103,423 | 106,028 |
| 70% | 69.7% | 90,496 | 90,152 |
| 60% | 60.2% | 77,568 | 77,866 |
| 50% | 49.8% | 64,640 | 64,370 |
| 40% | 40.4% | 51,712 | 52,199 |
| 30% | 29.5% | 38,784 | 38,119 |
| 20% | 20.0% | 25,856 | 25,883 |
| 10% | 9.6% | 12,928 | 12,395 |
| Active Idle | 0 | 0 | |

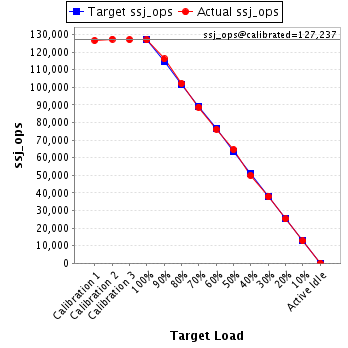

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 126,636 | ||
| Calibration 2 | 127,386 | ||
| Calibration 3 | 127,088 | ||
| ssj_ops@calibrated=127,237 | |||
| 100% | 99.7% | 127,237 | 126,917 |
| 90% | 91.3% | 114,513 | 116,144 |
| 80% | 80.3% | 101,789 | 102,176 |
| 70% | 69.8% | 89,066 | 88,761 |
| 60% | 59.9% | 76,342 | 76,182 |
| 50% | 50.8% | 63,618 | 64,582 |
| 40% | 39.2% | 50,895 | 49,877 |
| 30% | 29.7% | 38,171 | 37,826 |
| 20% | 19.8% | 25,447 | 25,165 |
| 10% | 10.0% | 12,724 | 12,733 |
| Active Idle | 0 | 0 | |
