SPECpower_ssj2008
Host '220g6-2b-4-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 512,758 ssj_ops@100% per JVM = 128,190 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 510,441 | ||
| Calibration 2 | 513,367 | ||
| Calibration 3 | 513,871 | ||
| ssj_ops@calibrated=513,619 | |||
| 100% | 99.8% | 513,619 | 512,758 |
| 90% | 89.9% | 462,257 | 461,722 |
| 80% | 80.2% | 410,895 | 411,846 |
| 70% | 70.0% | 359,533 | 359,662 |
| 60% | 60.0% | 308,171 | 308,336 |
| 50% | 50.4% | 256,809 | 259,062 |
| 40% | 40.0% | 205,448 | 205,274 |
| 30% | 30.1% | 154,086 | 154,558 |
| 20% | 20.2% | 102,724 | 103,816 |
| 10% | 10.0% | 51,362 | 51,540 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

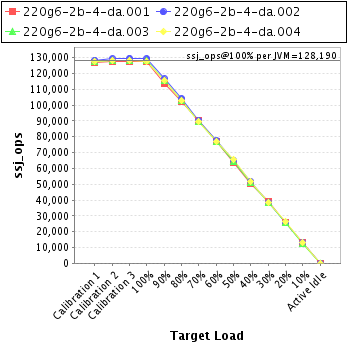

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-2b-4-da.001 | 127,479 |
| 220g6-2b-4-da.002 | 129,336 |
| 220g6-2b-4-da.003 | 128,107 |
| 220g6-2b-4-da.004 | 127,837 |
| ssj_ops@100% | 512,758 |
| ssj_ops@100% per JVM | 128,190 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 126,806 | ||
| Calibration 2 | 127,442 | ||
| Calibration 3 | 127,764 | ||
| ssj_ops@calibrated=127,603 | |||
| 100% | 99.9% | 127,603 | 127,479 |
| 90% | 89.1% | 114,842 | 113,750 |
| 80% | 79.9% | 102,082 | 101,972 |
| 70% | 70.8% | 89,322 | 90,340 |
| 60% | 60.3% | 76,562 | 76,965 |
| 50% | 50.1% | 63,801 | 63,962 |
| 40% | 39.5% | 51,041 | 50,462 |
| 30% | 30.4% | 38,281 | 38,816 |
| 20% | 20.2% | 25,521 | 25,791 |
| 10% | 10.4% | 12,760 | 13,229 |
| Active Idle | 0 | 0 | |

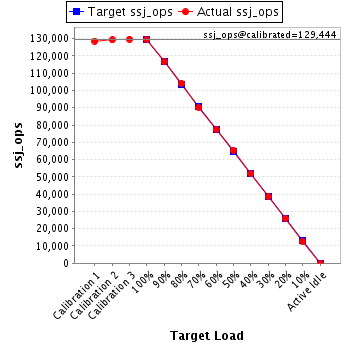

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,513 | ||
| Calibration 2 | 129,209 | ||
| Calibration 3 | 129,678 | ||
| ssj_ops@calibrated=129,444 | |||
| 100% | 99.9% | 129,444 | 129,336 |
| 90% | 90.0% | 116,499 | 116,517 |
| 80% | 80.4% | 103,555 | 104,104 |
| 70% | 69.8% | 90,611 | 90,290 |
| 60% | 59.9% | 77,666 | 77,551 |
| 50% | 50.4% | 64,722 | 65,284 |
| 40% | 40.0% | 51,777 | 51,786 |
| 30% | 29.7% | 38,833 | 38,507 |
| 20% | 20.0% | 25,889 | 25,834 |
| 10% | 9.9% | 12,944 | 12,850 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,345 | ||
| Calibration 2 | 128,399 | ||
| Calibration 3 | 128,107 | ||
| ssj_ops@calibrated=128,253 | |||
| 100% | 99.9% | 128,253 | 128,107 |
| 90% | 90.2% | 115,428 | 115,744 |
| 80% | 80.2% | 102,602 | 102,858 |
| 70% | 69.8% | 89,777 | 89,463 |
| 60% | 59.8% | 76,952 | 76,730 |
| 50% | 50.0% | 64,127 | 64,080 |
| 40% | 40.0% | 51,301 | 51,352 |
| 30% | 30.2% | 38,476 | 38,709 |
| 20% | 20.3% | 25,651 | 26,074 |
| 10% | 9.8% | 12,825 | 12,579 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,777 | ||
| Calibration 2 | 128,317 | ||
| Calibration 3 | 128,322 | ||
| ssj_ops@calibrated=128,320 | |||
| 100% | 99.6% | 128,320 | 127,837 |
| 90% | 90.2% | 115,488 | 115,711 |
| 80% | 80.2% | 102,656 | 102,912 |
| 70% | 69.8% | 89,824 | 89,569 |
| 60% | 60.1% | 76,992 | 77,091 |
| 50% | 51.2% | 64,160 | 65,735 |
| 40% | 40.3% | 51,328 | 51,674 |
| 30% | 30.0% | 38,496 | 38,526 |
| 20% | 20.4% | 25,664 | 26,118 |
| 10% | 10.0% | 12,832 | 12,883 |
| Active Idle | 0 | 0 | |
