SPECpower_ssj2008
Host '220g6-1a-1-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 512,568 ssj_ops@100% per JVM = 128,142 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 512,289 | ||
| Calibration 2 | 514,520 | ||
| Calibration 3 | 513,425 | ||
| ssj_ops@calibrated=513,973 | |||
| 100% | 99.7% | 513,973 | 512,568 |
| 90% | 90.3% | 462,575 | 463,944 |
| 80% | 80.5% | 411,178 | 413,944 |
| 70% | 70.4% | 359,781 | 361,675 |
| 60% | 60.2% | 308,384 | 309,406 |
| 50% | 49.9% | 256,986 | 256,536 |
| 40% | 40.0% | 205,589 | 205,483 |
| 30% | 30.1% | 154,192 | 154,663 |
| 20% | 20.2% | 102,795 | 103,720 |
| 10% | 10.1% | 51,397 | 51,761 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-1a-1-da.001 | 129,033 |
| 220g6-1a-1-da.002 | 128,454 |
| 220g6-1a-1-da.003 | 127,587 |
| 220g6-1a-1-da.004 | 127,494 |
| ssj_ops@100% | 512,568 |
| ssj_ops@100% per JVM | 128,142 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,661 | ||
| Calibration 2 | 128,620 | ||
| Calibration 3 | 129,281 | ||
| ssj_ops@calibrated=128,951 | |||
| 100% | 100.1% | 128,951 | 129,033 |
| 90% | 90.6% | 116,056 | 116,865 |
| 80% | 80.3% | 103,161 | 103,495 |
| 70% | 70.5% | 90,266 | 90,871 |
| 60% | 60.5% | 77,371 | 77,977 |
| 50% | 49.6% | 64,475 | 63,950 |
| 40% | 40.3% | 51,580 | 51,961 |
| 30% | 30.4% | 38,685 | 39,153 |
| 20% | 20.2% | 25,790 | 26,112 |
| 10% | 10.1% | 12,895 | 12,973 |
| Active Idle | 0 | 0 | |

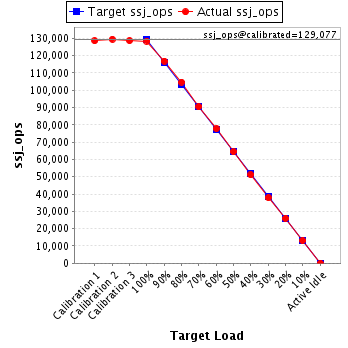

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,539 | ||
| Calibration 2 | 129,546 | ||
| Calibration 3 | 128,609 | ||
| ssj_ops@calibrated=129,077 | |||
| 100% | 99.5% | 129,077 | 128,454 |
| 90% | 90.6% | 116,170 | 116,890 |
| 80% | 81.2% | 103,262 | 104,759 |
| 70% | 70.1% | 90,354 | 90,513 |
| 60% | 60.3% | 77,446 | 77,803 |
| 50% | 49.9% | 64,539 | 64,447 |
| 40% | 39.6% | 51,631 | 51,087 |
| 30% | 29.3% | 38,723 | 37,836 |
| 20% | 20.2% | 25,815 | 26,049 |
| 10% | 10.2% | 12,908 | 13,131 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,153 | ||
| Calibration 2 | 128,485 | ||
| Calibration 3 | 127,927 | ||
| ssj_ops@calibrated=128,206 | |||
| 100% | 99.5% | 128,206 | 127,587 |
| 90% | 90.6% | 115,385 | 116,207 |
| 80% | 79.6% | 102,565 | 102,114 |
| 70% | 71.1% | 89,744 | 91,205 |
| 60% | 60.0% | 76,924 | 76,983 |
| 50% | 49.8% | 64,103 | 63,907 |
| 40% | 40.3% | 51,282 | 51,728 |
| 30% | 30.5% | 38,462 | 39,113 |
| 20% | 20.2% | 25,641 | 25,845 |
| 10% | 9.8% | 12,821 | 12,624 |
| Active Idle | 0 | 0 | |

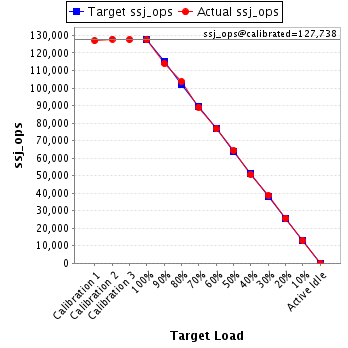

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 126,936 | ||
| Calibration 2 | 127,869 | ||
| Calibration 3 | 127,608 | ||
| ssj_ops@calibrated=127,738 | |||
| 100% | 99.8% | 127,738 | 127,494 |
| 90% | 89.2% | 114,964 | 113,981 |
| 80% | 81.1% | 102,191 | 103,576 |
| 70% | 69.7% | 89,417 | 89,087 |
| 60% | 60.0% | 76,643 | 76,643 |
| 50% | 50.3% | 63,869 | 64,232 |
| 40% | 39.7% | 51,095 | 50,707 |
| 30% | 30.2% | 38,321 | 38,560 |
| 20% | 20.1% | 25,548 | 25,714 |
| 10% | 10.2% | 12,774 | 13,033 |
| Active Idle | 0 | 0 | |
