Dell Inc. PowerEdge R710 (Intel Xeon X5570, 2.93 GHz) SPECpower_ssj2008 = 1,860 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 19, 2009
Hardware Availability: Jun-2009 Software Availability: May-2009 Publication: Jun 3, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 217 22.7
Calibration 2 220 22.8
Calibration 3 220 22.8
100% 220 22.8
90% 204 22.8
80% 186 22.8
70% 170 22.8
60% 153 22.8
50% 141 22.7
40% 131 22.7
30% 121 22.7
20% 111 22.7
10% 96.8 22.6
Active Idle 65.0 22.6

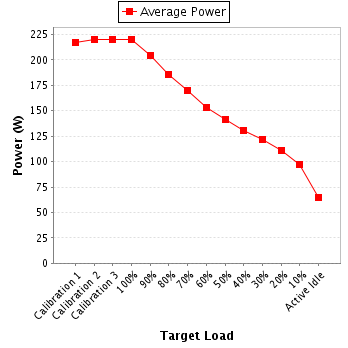

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H648897
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 2565983
Date of Calibration: 20-Aug-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 206 300.0 1.09 2.0 0.970 217 0.4%
Calibration 2 206 300.0 1.10 2.0 0.971 220 0.4%
Calibration 3 206 300.0 1.10 2.0 0.971 220 0.4%
100% 206 300.0 1.10 2.0 0.971 220 0.4%
90% 205 300.0 1.03 2.0 0.964 204 0.4%
80% 206 300.0 0.947 2.0 0.957 186 0.5%
70% 206 300.0 0.867 2.0 0.951 170 0.5%
60% 206 300.0 0.789 2.0 0.945 153 0.6%
50% 206 300.0 0.730 1.0 0.938 141 0.4%
40% 206 300.0 0.685 1.0 0.930 131 0.4%
30% 206 300.0 0.639 1.0 0.921 121 0.4%
20% 206 300.0 0.590 1.0 0.911 111 0.5%
10% 206 300.0 0.528 1.0 0.889 96.8 0.5%
Active Idle 206 300.0 0.379 1.0 0.832 65.0 0.7%
Power details for pwr1
