Hewlett-Packard Company ProLiant DL380 G5 (2.66GHz, Intel Xeon L5430 processor) ssj_ops@100% = 306,620
ssj_ops@100% per JVM = 76,655
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX Test Date: Mar 24, 2009
Hardware Availability: Jun-2008 Software Availability: Apr-2008 Publication: Apr 8, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     305,892
Calibration 2     308,631
Calibration 3     308,894
ssj_ops@calibrated=308,763
100% 99.3% 308,763 306,620
90% 90.2% 277,887 278,606
80% 80.3% 247,010 247,903
70% 69.8% 216,134 215,426
60% 60.2% 185,258 185,938
50% 50.0% 154,381 154,251
40% 40.3% 123,505 124,358
30% 30.2% 92,629 93,322
20% 20.1% 61,753 62,003
10% 10.1% 30,876 31,061
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL380 G5 (2.66GHz, Intel Xeon L5430 processor)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL380 G5 (2.66GHz, Intel Xeon L5430 processor)
Form Factor: --
CPU Name: Intel Xeon L5430
CPU Characteristics: 2.66GHz, 2x6 MB L2 shared, 1333 MHz system bus
CPU Frequency (MHz): 2666
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 GB
Memory Details: PC2-5300F CL5 LP; slots 1,3,5,7 populated
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: HP part# 379124-001
Disk Drive: 1 x 36GB 10K RPM SAS
Disk Controller: HP Smart Array P400
# and type of Network Interface Cards (NICs) Installed: 2 x NC373i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: HP Dynamic Power Regulator enabled
Operating System (OS): Microsoft Windows Server 2003 x64 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: BEA Systems,Inc.
JVM Version: BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=4k,preferred=512k
JVM Affinity: Used "start /AFFINITY" "0x3","0xc","0x30","0xc0" CPU masks.
JVM Instances: 8
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 76,988
0001.002 76,075
0001.003 77,250
0001.004 76,306
ssj_ops@100% 306,620
ssj_ops@100% per JVM 76,655

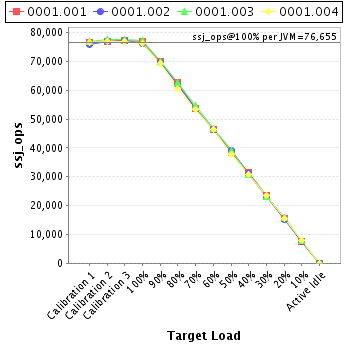

Graph of per-instance results
JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,504
Calibration 2     77,058
Calibration 3     77,150
ssj_ops@calibrated=77,104
100% 99.8% 77,104 76,988
90% 90.6% 69,394 69,866
80% 81.2% 61,683 62,600
70% 69.6% 53,973 53,692
60% 60.3% 46,262 46,486
50% 49.7% 38,552 38,290
40% 40.9% 30,842 31,512
30% 30.4% 23,131 23,413
20% 20.3% 15,421 15,662
10% 9.7% 7,710 7,462
Active Idle   0 0

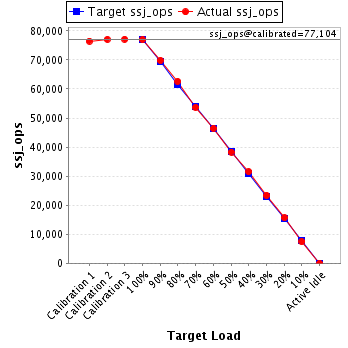

Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,997
Calibration 2     76,872
Calibration 3     77,194
ssj_ops@calibrated=77,033
100% 98.8% 77,033 76,075
90% 90.4% 69,329 69,608
80% 80.5% 61,626 62,048
70% 69.6% 53,923 53,615
60% 60.1% 46,220 46,280
50% 50.6% 38,516 38,963
40% 40.5% 30,813 31,183
30% 30.0% 23,110 23,133
20% 19.7% 15,407 15,198
10% 9.9% 7,703 7,658
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,879
Calibration 2     77,702
Calibration 3     77,661
ssj_ops@calibrated=77,681
100% 99.4% 77,681 77,250
90% 90.0% 69,913 69,897
80% 80.7% 62,145 62,687
70% 70.4% 54,377 54,725
60% 60.2% 46,609 46,786
50% 50.4% 38,841 39,151
40% 39.6% 31,073 30,774
30% 30.0% 23,304 23,292
20% 20.2% 15,536 15,725
10% 10.2% 7,768 7,921
Active Idle   0 0

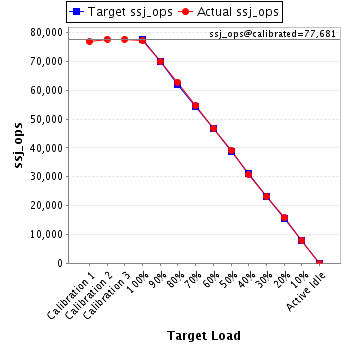

Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,512
Calibration 2     77,000
Calibration 3     76,890
ssj_ops@calibrated=76,945
100% 99.2% 76,945 76,306
90% 90.0% 69,250 69,236
80% 78.7% 61,556 60,568
70% 69.4% 53,861 53,394
60% 60.3% 46,167 46,387
50% 49.2% 38,472 37,847
40% 40.1% 30,778 30,890
30% 30.5% 23,083 23,483
20% 20.0% 15,389 15,418
10% 10.4% 7,694 8,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
