SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Apple Inc. Xserve3,1 | SPECpower_ssj2008 = 464 overall ssj_ops/watt | ||||
| Test Sponsor: | Apple Inc. | SPEC License #: | 77 | Test Method: | Single Node |
| Tested By: | Apple Inc. | Test Location: | Cupertino, CA, USA | Test Date: | Mar 16, 2009 |
| Hardware Availability: | Apr-2009 | Software Availability: | Apr-2009 | Publication: | Apr 8, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

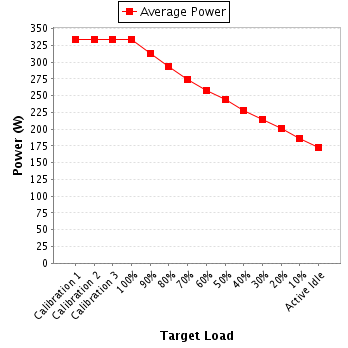

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 334 | 22.4 |
| Calibration 2 | 334 | 22.2 |
| Calibration 3 | 334 | 22.2 |
| 100% | 334 | 22.2 |
| 90% | 313 | 22.2 |
| 80% | 293 | 22.2 |
| 70% | 273 | 22.2 |
| 60% | 258 | 22.2 |
| 50% | 244 | 22.2 |
| 40% | 228 | 21.9 |
| 30% | 214 | 21.9 |
| 20% | 200 | 21.9 |
| 10% | 187 | 21.9 |
| Active Idle | 173 | 21.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91H730508 |
| Connectivity: | USB2 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Corp. of America |
| Calibration Label: | SM760401-01E |
| Date of Calibration: | 15-Jul-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | Temperature@lert |
| Driver Version: | 2.2.4.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 117 | 150V | 2.94 | 5A | 0.971 | 334 | -- |
| Calibration 2 | 117 | 150V | 2.94 | 5A | 0.971 | 334 | -- |
| Calibration 3 | 117 | 150V | 2.94 | 5A | 0.971 | 334 | -- |
| 100% | 117 | 150V | 2.93 | 5A | 0.971 | 334 | -- |
| 90% | 117 | 150V | 2.76 | 5A | 0.968 | 313 | -- |
| 80% | 118 | 150V | 2.58 | 5A | 0.965 | 293 | -- |
| 70% | 118 | 150V | 2.42 | 5A | 0.962 | 273 | -- |
| 60% | 117 | 150V | 2.29 | 5A | 0.960 | 258 | -- |
| 50% | 117 | 150V | 2.17 | 5A | 0.957 | 244 | -- |
| 40% | 117 | 150V | 2.04 | 5A | 0.955 | 228 | -- |
| 30% | 117 | 150V | 1.91 | 5A | 0.953 | 214 | -- |
| 20% | 117 | 150V | 1.79 | 5A | 0.953 | 200 | -- |
| 10% | 118 | 150V | 1.66 | 5A | 0.954 | 187 | -- |
| Active Idle | 118 | 150V | 1.53 | 5A | 0.957 | 173 | -- |
