SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| SGI Altix XE320 Single Node (3.0 GHz, Intel Xeon processor E5472) | SPECpower_ssj2008 = 748 overall ssj_ops/watt | ||||
| Test Sponsor: | SGI | SPEC License #: | 4 | Test Method: | Single Node |
| Tested By: | SGI | Test Location: | Mountain View,CA, USA | Test Date: | May 14, 2008 |
| Hardware Availability: | Jun-2008 | Software Availability: | Apr-2008 | Publication: | Jun 4, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

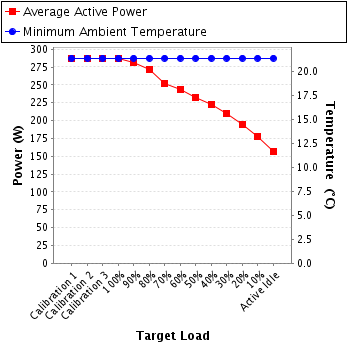

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 287 | 21.4 |
| Calibration 2 | 287 | 21.4 |
| Calibration 3 | 287 | 21.4 |
| 100% | 287 | 21.4 |
| 90% | 281 | 21.4 |
| 80% | 272 | 21.4 |
| 70% | 252 | 21.4 |
| 60% | 243 | 21.4 |
| 50% | 233 | 21.4 |
| 40% | 222 | 21.4 |
| 30% | 209 | 21.4 |
| 20% | 195 | 21.4 |
| 10% | 178 | 21.4 |
| Active Idle | 156 | 21.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd |
| Model: | WT210 |
| Serial Number: | 91H132263 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd |
| Calibration Label: | 08-0385 |
| Date of Calibration: | 29-Feb-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.14.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 203 | -- | 1.47 | -- | 0.963 | 287 | -- |
| Calibration 2 | 203 | -- | 1.47 | -- | 0.964 | 287 | -- |
| Calibration 3 | 203 | -- | 1.47 | -- | 0.964 | 287 | -- |
| 100% | 203 | -- | 1.47 | -- | 0.964 | 287 | -- |
| 90% | 203 | -- | 1.44 | -- | 0.962 | 281 | -- |
| 80% | 203 | -- | 1.40 | -- | 0.960 | 272 | -- |
| 70% | 203 | -- | 1.30 | -- | 0.956 | 252 | -- |
| 60% | 203 | -- | 1.26 | -- | 0.954 | 243 | -- |
| 50% | 203 | -- | 1.21 | -- | 0.950 | 233 | -- |
| 40% | 203 | -- | 1.16 | -- | 0.946 | 222 | -- |
| 30% | 203 | -- | 1.10 | -- | 0.941 | 209 | -- |
| 20% | 203 | -- | 1.03 | -- | 0.934 | 195 | -- |
| 10% | 203 | -- | 0.946 | -- | 0.925 | 178 | -- |
| Active Idle | 203 | -- | 0.841 | -- | 0.916 | 156 | -- |
